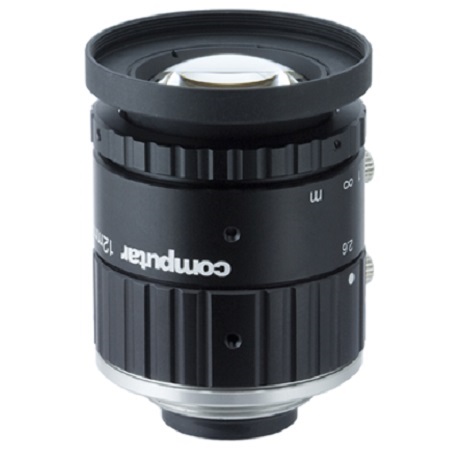

V1226-MPZ Computar 1" 12mm F2.6 10 Megapixel Ultra Low Distortion Lens

Specifications

• Focal Length - 12mm
• Max. Aperature Ratio - 1:2.6
• Max. Image Format - 12.8mm x 9.6mm(φ 16mm)
• Operation Range
• Iris - F2.6 - F16.0
• Focus - 0.1m - 1nf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 1 Type - 123.2mm x 91.9mm
  • 2/3 Type - 84.1mm x 62.7mm
  • 1/1.8 Type - 68.5mm x 51.2mm
• Angle of View - 1 Type
• D - 67.4°
• H - 56.7°
• V - 44.1°
• Angle of View - 2/3 Type
  • D - 49.8°
  • H - 40.7°
  • V - 31.0°
• Angle of View - 1 1/8 Type
  • D - 41.5°
  • H - 33.7°
  • V - 25.5°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ22.6mm
  • Rear - φ15.1mm
• Distortion
  • 1 Type - 0.0%
  • 2/3 Type - -1.1%
  • 1 /1.8 Type - -1.0%
• Back Focal Length - 10.6mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M37.5 P=0.5mm
• Dimensions - φ39.5mm x 43.5mm
• Weight - 98.4g

V1226-MPZ Specification PDF
