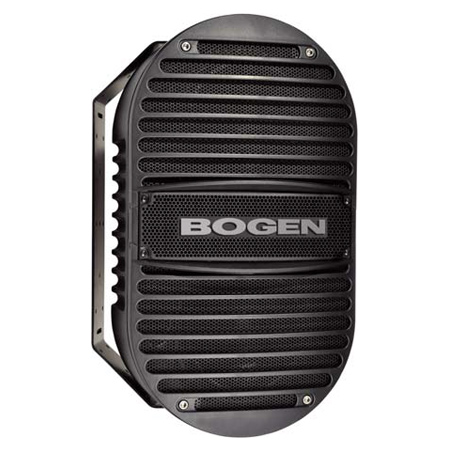

A12 Bogen High-Output, Long-Throw Loudspeaker

The A12 features NEAR's unique technologies to produce the highest sound quality in the most durable and reliable loudspeakers available. The A12 is a compact, high-powered speaker that projects well in open spaces like theme parks, sports fields, and plazas.
Precise sound reproduction is achieved with two 6.5" mid/bass drivers employing both MDT and patented MLS technologies for superior sound and weather resistance. The high-frequency driver is a 1.9" horn-loaded diaphragm (1" exit). A built-in 128W transformer makes the A12 compatible with 70V sound systems. The transformer can be easily bypassed for use in low-impedance systems (16 ohms). NEAR's patented spiderless technology (MLSâ„¢) and advanced materials deliver out-of-the-box performance year after year. Speaker diaphragms are manufactured with materials that will not be altered by constant exposure to UV rays or water, cold or heat, or extremely high or low humidity.

Specifications

• Frequency Response (-10 dB) - 55 Hz to 20 kHz
• LF Driver - Dual Metal-Composite 6.5" Cone Woofers, Patented MLS Voice Coil Guidance System
• HF Driver - Weatherproof 1.9" Mylar Diaphragm Constant Directivity Horn, 1" Exit
• Sensitivity (1W/1M) - 94.5 dBspl
• Dispersion - 90° Horizontal, 45° Vertical
• Impedance Ratings - Low (16 ohms) / High (70V)
• Power Input (Max.) - 225W @ 16 ohms; 128W @ 70V
• Settings (in watts) - 70V: 128, 64, 32, 16, 8
• Grille Material - Perforated Polypropylene
• Cabinet Material - Black, Mineral-filled Polypropylene, with UV Inhibitor
• Terminations - Dual 4-Terminal Barrier Strips with Gold-plated, Rust-proof Screws
• Product Weight - 22 lb.
• Speaker Dimensions - 10-1/4" W x 17-7/8" H x 11-3/4" D
• Included Accessories - Color-matched, Stainless Steel Mounting Bracket
• Optional Accessories - Adjustable Tilt-Mount Adapter (Model TMA812)
