Features
- 2-wire, plug-in conventional detection technology
- 6†mounting base included for selected models
- Drift compensation for smoke detectors
- Low profile, less than 2 inches with the base
- LED Normal/Alarm/Trouble/Sensitivity
- Optional Magnetic Test Switch
- Product includes 5-year warranty
- UL268 7th edition compliant for smoke detectors
Description
The PC-2P and PC-2PN are conventional photoelectric smoke detectors. The PC-2P has magnet test feature while the PC-2PN doesn’t.
The PC-2PH is conventional smoke and heat detector, the photo and heat sensors on the PC-2PH work independently to generate an alarm signal to the panel.
The PC-2H is a conventional heat detector with a 135°F fixed alarm temperature and a 15°F/min rate of rise alarm. The PC-2H is listed on maximum 70 ft spacing on a 10 ft smooth ceiling.
The PC-4DB and the PC-6DB are mounting bases designed to work specially with the PC-series detectors. The PC-4DB has a four (4) inch diameter and the PC-6DB has a six (6) inch diameter. Both bases provide multiple mounting options to accommodate different junction boxes and have a locking feature to allow tamper-proofing to prevent unwanted removal.
The PC-RA is a remote indicator designed for conventional fire alarm system applications and can be used with PC-series detectors.

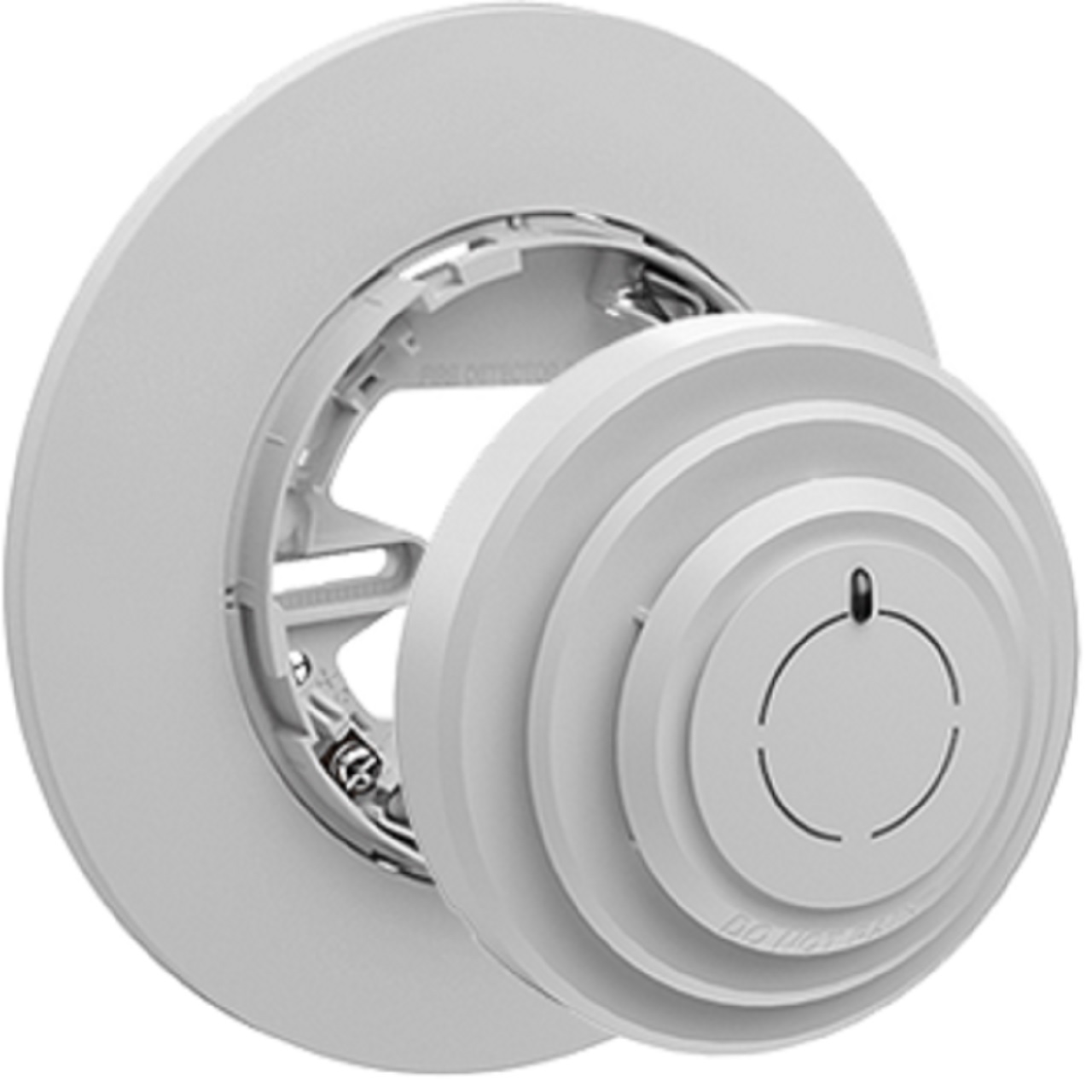

The PC-2P, PC-2PN, PC-2H and PC-2PH detectors can be sold separately or together with the 6†mounting base PC-6DB. The models comprising the PC-series detectors along with the PC-6DB base are PC-2P6B, PC-2PN6B, PC-2H6B and PC-2PH6B respectively.
Operation
All PC-series detectors include one (1) LED to indicate the device statuses including normal standby, alarm, trouble, dirty (except heat detector), and sensitivity range. They must be connected to a conventional fire alarm control panel or connected to an addressable control panel through a zone module for proper operation.
Technical Specifications
PC-Series Detectors
- Model Number - PC-2PN6B
- Operating Voltage - 12 or 24 VDC
- Standby Current - 60 μA
- Alarm Current (Must limited by panel) - 6 - 130 mA
- Max. Number Allowed on a Circuit - 25
- Sensitivity Range - (2.30% ± 1.20%)/ft
- Alarm Temperature -
- Installation Temp Range - 32°F - 120°F
- Operating Humidity Range - 0% - 95% (non-condensing)
- Dimension- Φ 3.93 in
- Weight - 3.20oz
- Height - 1.42in
- LED modes - Refer to the manual for detail
1430057 Specifications PDF
