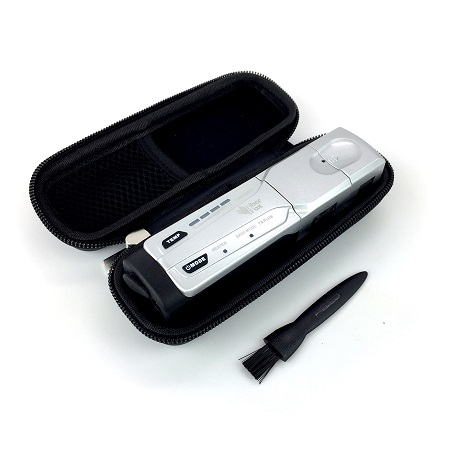

HS-12 FiberFox Thermal Stripper for Single and Ribbon Fiber Cable

The FiberFox HS-12 newly developed hand-held thermal stripper is rugged and durable, yet small in size and light weight. Designed to strip the jacket of single fiber and ribbon cable up to 12 fibers, it offers extreme convenience under any tough environment. Benefits include fast heating time of 4 seconds and approximately 500 cycles with a fully charged battery. So easy to use that anyone can do clear stripping with near zero failure

Specifications

• Optical Fiber Material - Quartz Glass
• Coating Material - UV Sclerotic resin
• Cores of the fiber and thickness of the coating layer - Single-core Fiber
  • Fiber coating layer:0.25~0.4mm
  • Ribbon fiber with 2 to 12 cores
  • Ribbon fiber thickness 0.3~0.4mm
• Fiber Diameter - 125μM
• Stripped Coating Length - Max 30Mm
• Heating Mode - Normal Mode / Node Mode
• Temperature Setup - 4 levels 75°C ~ 120°C
• Fiber fixed Method - Fh-2, Fh-4, Fh-6, Fh-8, Fh-10, Fh-12, Fh-250, Fh-900;
• Power Supply Pattern - Battery drive Ac Drive: Ac100-240V, 50/60Hz, Use connecting wire to do Dc 12V Power Supply From Fusion Splicer
• Dimensions - 137(W)x30(D)x37(H)mm
• Weight - 280g
• Environment Conditions
  • Temperature: - 10°c ~+50°C
  • Humidity: 0%~95%

HS-12 Specifications PDF
