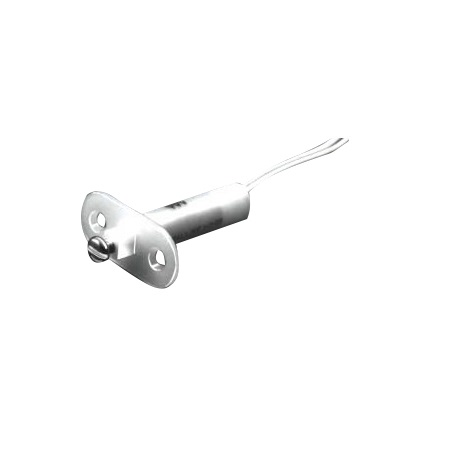

TS-20 W/1K GRI Closed Tamper Switch with 1k Resistor

SKU: TS-20 W/1K

Brand: GRI

Recessed Adjustable Plunger (From 1/4" to 1/2")
3/8" Diameter (Smallest In The Industry)
Easy To Install - Replaces Old Mechanical Tampers
Strong Spring Action
Press To Fit
12" #22AWG Leads
Screw Down Flange on TS-20 For Positive Retention
Longer Leads, Zip Cord or Jacketed Cable Upon Request
Hermetically Sealed
Plated Contacts Resist Sticking or Freezing
Mounting Hardware Included
Supervisory Loops Upon Request
Lifetime Warranty

More details...

MPN: TS-20 W/1K
UPC: 697625083923

MSRP Price: $21.00

Price: $12.75

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

The adjustable plunger actuated TS series was developed to provide a tamper switch with a smaller diameter for applications where a normal plunger or roller ball type switch is too large. The 3/8" diameter is ideal for a variety of door and window applications. The oval flange allows the switch to be solidly anchored where needed. The design also resists locking problems caused by expansion or contraction. Available with a bracket for box tamper. Made of nylon for flexibility, the stainless steel spring and sealed contact insure a long service life.

Specifications

Part Number - TS-20
Loop Type - Closed
Electrical Config - N/O
Reed Form - A
Maximum Initial Contact Resistance (Ω) - .115
Maximum Contact Rating (W) - 10
Maximum Switching Voltage (VDC) - 200VDC
Maximum Switching Current (A) - .500

TS-20 W/1K Specifications PDF
