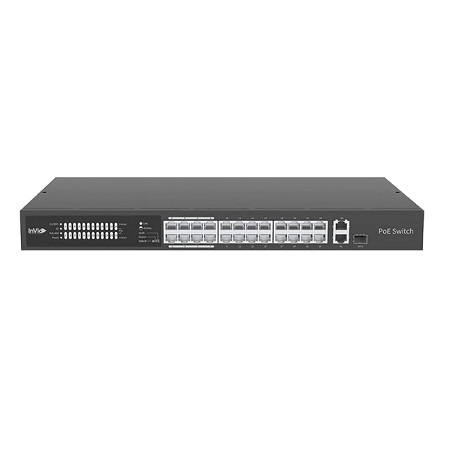

VIS-LRPOE24-2AN InVid Tech Vision Series 24-Port PoE Switch with 2 Uplink Ports

Specifications

• Model - VIS-LRPOE24-2AN
• Ports - 24x100Mbps PoE ports (RJ45) + 1x1000Mbps Gigaethernet ports +1x1000Mbps Combo ports
• Standards - IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x, I EEE802.3af,IEEE802.3at,IEEE802.3az
• Switching capacity - 8.8Gbps
• Forwarding performance - 6.55Mpps
• Packet Buffer - 4Mbit
• MAC - 16K
• Dimensions (WxDxH) - 17.3 x 9.6 x 1.7 in (440x 244.8 x44mm)
• Weight - 6.5 lb (2.93KG)
• Power supply - AC: 100-240V, 50/60Hz
• PoE - 802.3at/af (4/5+, 7/8-)
• Max. PoE Power - Max capacity: 370W, Max capacity for single port: 30W
• Prior Ports - 1 ~ 8
• Cooling Fans - 1
• Operating temperature - 32°F ~ 104°F (0°C-40°C)
• Operating humidity - 10% ~ 90% (noncondensing)
• Storage humidity - 5% ~ 90% (noncondensing)
• Indicator
  • POWER - Steady on: AC input is normal, Off: No AC input
  • PoE - Off: No PoE power supply, Steady on: PoE power supply is normal
  • PoE-MAX - off: The POE power supply power of the whole machine is less than 80% of the specification, Steady on: The POE power supply power of the whole machine is greater than 85% of the specification
  • LINK/ACT: - Off: No link, Steady on: Linked, Flashing: Transmitting data
• Working Mode
  • Default (Normal mode): - All ports can communicate with each other
  • VLAN (Secure mode): - Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
  • Extend(Surveillance mode): - Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
  • Certification - UL: A6158, E496771
