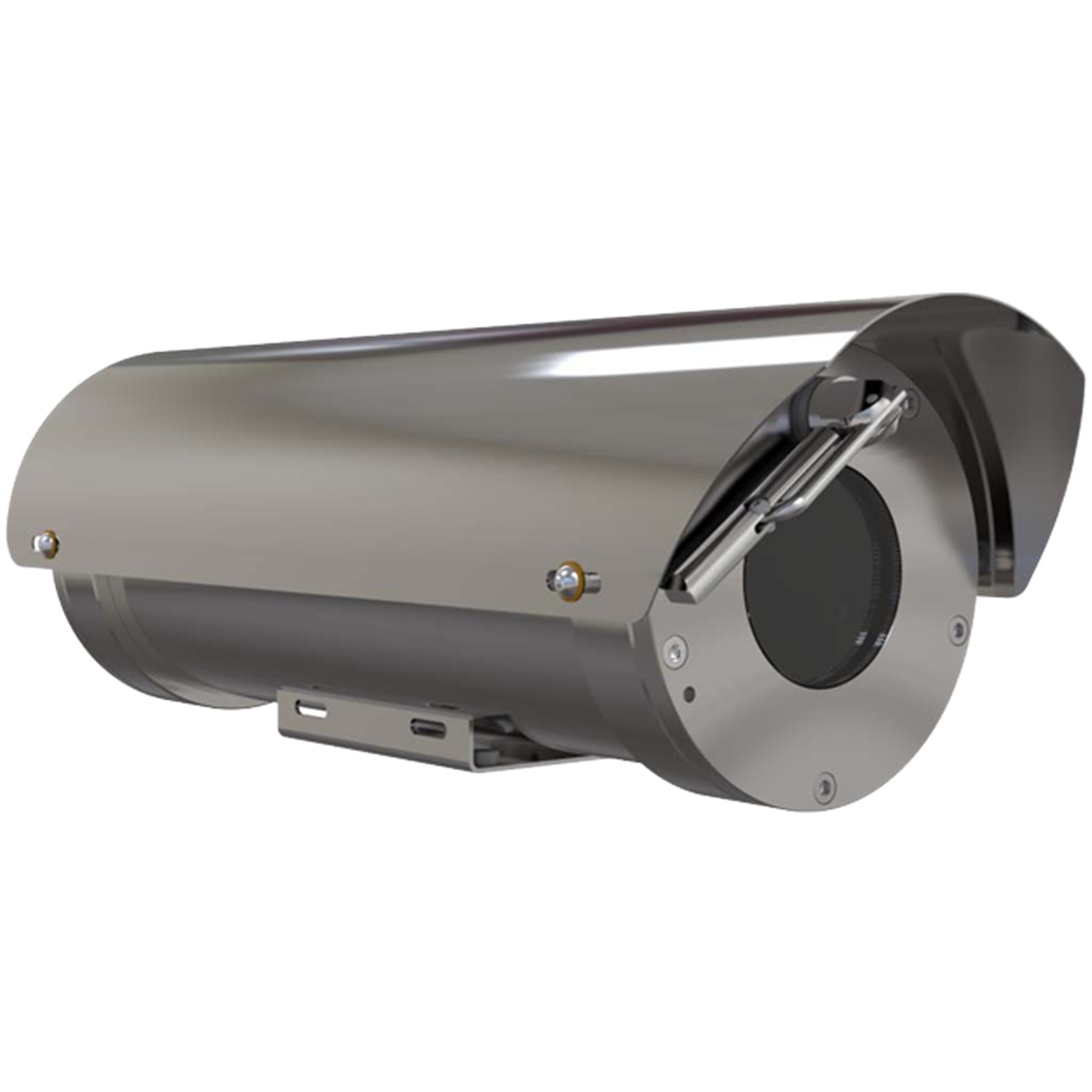

TNO-X6320E2F2WT1-M Hanwha Vision T Series 4.44-142.6mm 32x Optical Zoom 60FPS @ 1080p Outdoor Day/Night WDR Explosion-proof Bullet IP Security Camera with Wiper 110VAC - INMETRO

Specifications

Video

• Imaging Device - 1/2.8" 2.4MP CMOS
• Total Pixels - 1981 (H) x 1288 (V), 2.55 MP
• Effective Pixels - 1944 (H) x 1212 (V), 2.35 MP
• Scanning System - Progressive Scan
• Min. Illumination - Color: 0.05Lux (1/30 sec, F1.6) , B/W: 0.005Lux (1/30 sec, F1.6)
• S / N Ratio - 50dB

Lens

• Focal length - 4.44 ~ 142.6mm (Optical 32x)
• Max. Aperture ratio - F1.6 (Wide) / F4.4 (Tele)
• Angular Field of View - H : 61.8Ëš(Wide) ~ 2.19Ëš(Tele) / V : 36.2Ëš(Wide) ~ 1.24Ëš(Tele)
• Min. Object Distance - Wide 1.5m (4.92ft), Tele 2m (6.56ft)
• Focus Control - Auto / Manual / One shot AF
• Lens Type - DC auto iris
• Mount Type - Board-in-type

Operational

• Camera Title - Off / On (Displayed up to 85 characters) - English / International / Numeric / Special characters -Multi-line (Maximum 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night - Auto (ICR) / Color / B/W / Schedule
• Backlight Compensation - Off / WDR / BLC / HLC
• Wide Dynamic Range(WDR) - (150dB)
• Contrast Enhancement - SSDR (On / Off)
• Digital Noise Reduction - SSNR5 (2D + 3D noise filter) (On / Off)
• Digital Image Stabilization - On / Off (Built-in gyro sensor)
• Defog - Off / Manual / Auto
• Motion Detection - On / Off (8ea, Polygonal)
• Privacy Masking - On / Off (24 Zones of rectangle zone) - Color: Grey/Green/Red/Blue/Black/ White - Mosaic
• Gain Control - Off/Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec)
• Digital PTZ - 32x
• Flip / Mirror - On/Off
• Video Analytics - Tampering, Loitering, Directional/Virtual Line detection, Fog detection, Enter/Exit, Appear/Disappear, Face detection, Motion detection, Shock detection
• Alarm Triggers - Alarm input, Motion detection, Video analytics, Network disconnect
• Alarm Events - File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, Preset
• Pixel Counter - Support

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.264 / H.265 : Maximum 60fps at all resolutions Motion JPEG : Maximum 30fps at all resolutions
• Smart Codec - Manual mode (Area-based : 5ea)
• WiseStreamII - Support
• Video Quality Adjustment - H.264 / H.265 / MJPEG : Target bitrate level control
• Bitrate Control Method - H.264 / H.265 : CBR or VBR, Motion JPEG: VBR
• Streaming Capability - Multiple streaming (Up to 10 profiles)
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 Users at Unicast Mode
• Edge Storage - Micro SD/SDHC/SDXC 2 slots (up to 512 GB total capacity) - Continuous recording(1st slot to 2nd slot) - Motion Images recorded in the Micro SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) Local PC for instant recording
• Application Programming Interface - ONVIF Profile S/G,/T SUNAPI 2.0 (HTTP API), Wisenet Open Plarform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plug-in Free Webviewer supported browser : Google Chrome, Microsoft Edge, Microsoft Internet Explorer, Mozilla Firefox (Windows 64-bit only) , Apple Safari 10 (Mac OS X only)
• Central Management Software - Wisenet WAVE, SmartViewer, SSM

Environmental

• Sun Shield - Standard stainless steel 316L mirror finish
• Integral Wiper - Silicone wiper blades that are resistant and do not perish after long exposure to ozone, UV, ice, snow, heat or cold
• Integral Fiber - Built-in fiber module (Simplex single-mode 9/125μm)
• Ingress Protection Rating - IP66/67, IP68 (1.5m for 24 hours)
• Temperature Rating - T1: -40°C ~ +60°C (-40°F ~ +140°F); T2: -60°C ~ +60°C (-76°F ~ +140°F)

Electrical

• Input Voltage - 110 VAC
• Power Consumption - 37W Maximum
• Cable Entry - Three M20 entries located in housing rear flange
• Body Material - Electro-polished 316L stainless steel on all welded assemblies
• Fixings Material - A4 stainless steel
• Camera Window - Toughened glass

Certifications

• INMETRO - Ex d IIC T4 (T5 On Request) Gb -60° C ≤Ta ≤+60°C Ex tb IIIC T135° C Db IP66/67. Certificate Number: TUV 12.1080X / TUV 12.1081X
• cLCus C1 / D1 - Class I, Division 1, Groups B,C,D, -60°C≤Ta≤60°C T4/ Class II,Division 1, Groups E, F, G IP67 CSA-C22.2 No:30-M1986 No:25-1966(R2009) CSA-C22.2 No:60065-03(R2012) & UL1203,UL60065(ED.7). Certificate Number: 11671-1S / 11677-1S
• cLC CSA - Ex d IIC T4 (T5 On Request) LC1311396 -60°C≤Ta≤+60°C. CAN CSA-C22.2 No.60079-0:2011 & 60079-1-2011. Certificate Number: 11396- 1S-CSA
• Weight - Up to 21Kg (46.3lb)
