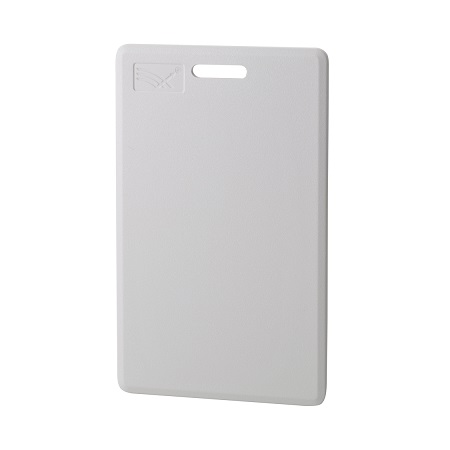

DC4-1 Keri Systems Clamshell MIFARE-Compliant with 4K-Byte Memory Custom Format

Delta comprises Farpointe Data's 13.56 MHz line of contactless smartcard readers, cards, and tags. Based upon proven MIFARE contactless digital radio frequency identification (RFID) technology, Delta readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure and ValidID, and support sector and card serial number (CSN) reads. Additionally, Delta cards and tags are passive devices, eliminate maintenance by requiring no battery, and can be ordered programmed to various formats and encryption keys.

Specifications

• Technology - Smartcard
• Frequency - Excitation (13.56 MHz)
• Operation - Passive (no battery)
• Type - Clamshell card
• Formats - Wiegand (26-bit and custom formats) and ABA Track II magnetic stripe (clock and data)
• Material - ABS
• Color - Off-white
• Slot Punch¹ - Standard, vertical slot
• Marking² - Date code and ID
• Imaging³ - Use a glossy adhesive overlay for color dye sublimation printing or print directly on card
• Read Range4 - Up to 3 inches (76 mm)
• Outputs5 - CSN and Sector
• Options6 - Custom printing of company logos, URL, telephone number, and more
• Warranty - Limited lifetime warranty
• OEM Label Area Dimensions - 0.11" W x 0.25" H (2.8 mm x 6.3 mm) with corner radius of 0.63" (16 mm)
• Dimensions - 2.2" W x 3.4" H x .06" D (56 mm x 86 mm x 1.5 mm)
• Weight - 0.3 oz (9 g)
• Operating Temperature - –35° F to 122° F (–37° C to +50° C)
• Humidity - 0–95% non-condensing
• Memory - DC1-1: 1K memory, DC4-1: 4K memory
• ISO Standards - Technology: ISO 14443, Size: N/A

DC4-1 Specifications PDF
