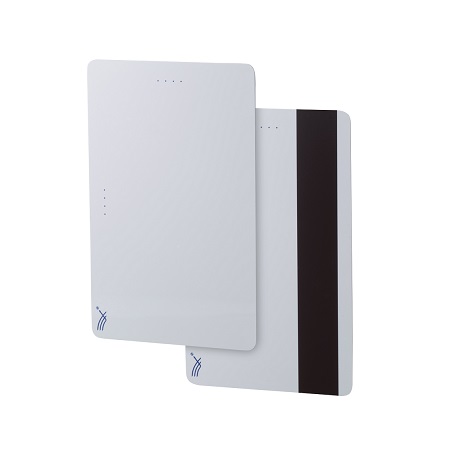

DM4-3 Keri Systems ISO-Style PVC Printable MIFARE-Compliant with 4K-Byte Memory Custom Format

Delta comprises Farpointe Data's 13.56 MHz line of contactless smartcard readers, cards, and tags. Based upon proven MIFARE contactless digital radio frequency identification (RFID) technology, Delta readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure and ValidID, and support sector and card serial number (CSN) reads. Additionally, Delta cards and tags are passive devices, eliminate maintenance by requiring no battery, and can be ordered programmed to various formats and encryption keys.

Specifications

• Technology - Smartcard
• Frequency - Excitation (13.56 MHz)
• Operation - Passive (no battery)
• Type - Dye sublimation
• Formats - Wiegand (26-bit and custom formats) and ABA Track II magnetic stripe (clock and data)
• Material - PVC
• Color - Glossy white
• Slot Punch¹ - Vertical and horizontal indicators
• Marking² - Date code and ID
• Imaging³ - Supports dye sublimation imaging
• Read Range4 - Up to 2.75 inches (70 mm)
• Outputs5 - CSN and Sector
• Options6 - Custom printing of company logos, URL, telephone number, and more
• Warranty - 12 months
• OEM Label Area Dimensions - N/A
• Dimensions - 2.1" W x 3.4" H x 0.031" D (53 mm x 86 mm x 0.79 mm)
• Weight - 0.19 oz (5.4 g)
• Operating Temperature - –35° F to 122° F (–37° C to +50° C)
• Humidity - 0–95% non-condensing
• Memory - 4K memory
• ISO Standards - Technology: ISO 14443, Size: ISO 7810

DM4-3 Specifications PDF
