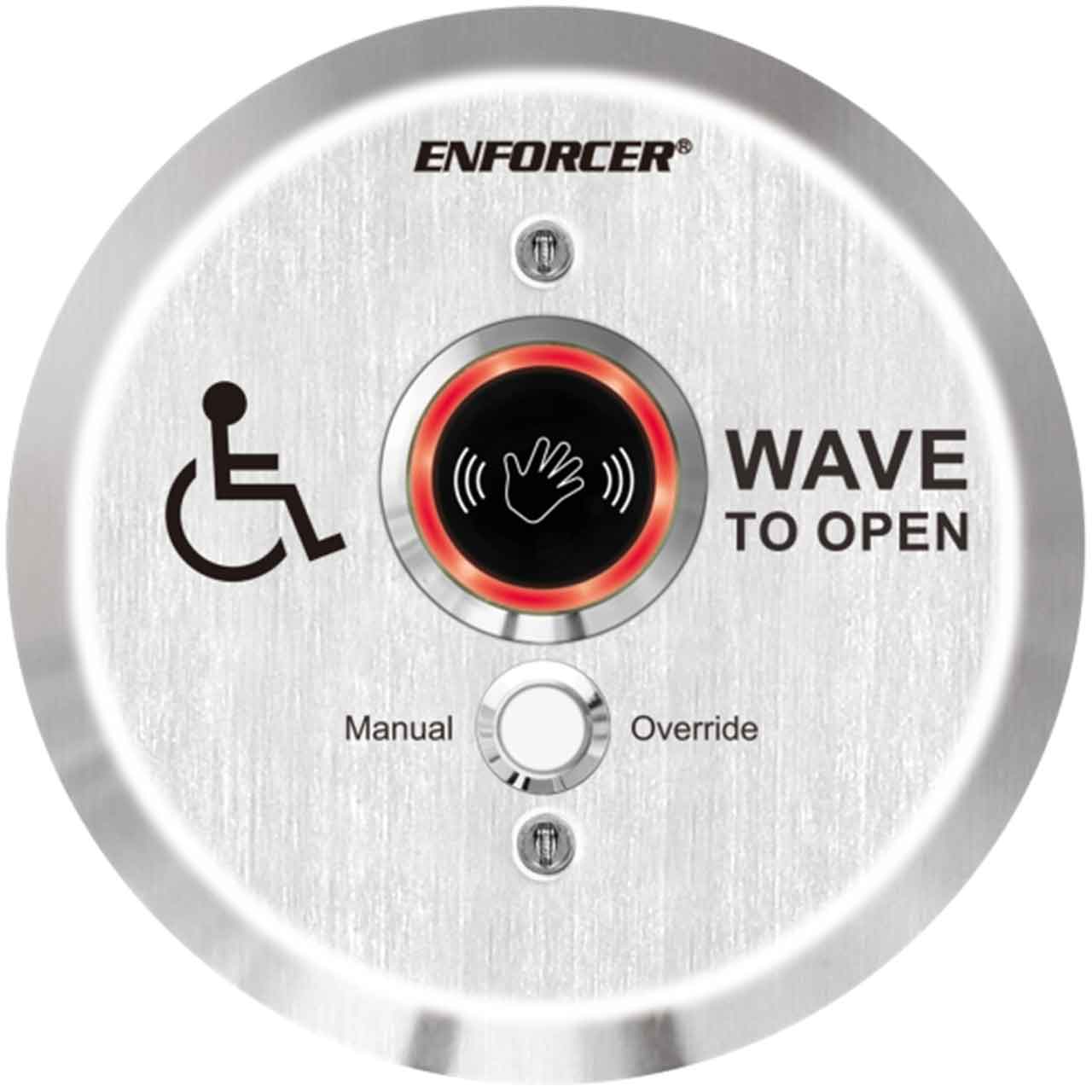

SD-9563-KSVQ Seco-Larm 6" Round IR Wave-to-Open Sensor with Manual Override

SD-9563-KSVQ Seco-Larm 6" Round IR Wave-to-Open Sensor with Manual Override	SD-9563-KSVQ Seco-Larm 6" Round IR Wave-to-Open Sensor with Manual Override
(Click to see larger image and other views)

SD-9563-KSVQ Seco-Larm 6" Round IR Wave-to-Open Sensor with Manual Override	SD-9563-KSVQ Seco-Larm 6" Round IR Wave-to-Open Sensor with Manual Override
(Click to see larger image and other views)

SKU: SD-9563-KSVQ

Brand: Seco-Larm

6" Round IR Wave-to-Open Sensor with Manual Override

Key Features:

Adjustable sensor range up to 7" (18cm)
1.2A relay, adjustable trigger duration 0.5~30 seconds or toggle
LED illuminated sensor for easy identification
Selectable LED color turns from red to green (or green to red) when the sensor is activated
6" Round stainless steel plate for mounting to a single-gang back box
IP65 Weatherproof for outdoor use
Power must be provided by low-voltage power-limited/Class 2 power supply
Use only low-voltage field wiring and do not exceed 98.5 ft (30m)

More details...

MPN: SD-9563-KSVQ

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

The ENFORCER 6" Round IR Wave-to-Open Sensor with Manual Override is a full-featured exit plate using IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

Product Details

Specifications

Operating temperature: 12~24 VDC
Current draw (max. ±10%):
- Standby red (12/24 VDC): 18mA / 23mA
- Triggered green (12/24 VDC): 23mA / 29mA
- Standby green (12/24 VDC): 14mA / 18mA
- Triggered red (12/24 VDC): 28mA / 35mA
Relay type: SPDT dry contact, 1.2A@24VDC
Response time: 10ms
LED:
- Standby: Red*
- Triggered: Green*
Ouput duration: 0.8~30 s, toggle
Range: 2"~7" (5~18 cm)
Destructive attack level: Level I
Line security: Level I
Endurance level: Level IV
Standby power: Level I
IP Rating: Weatherproof, IP65
Operating Temperature: -4°~131° F (-20°~55° C)
Dimensions: ø6" (152 mm)
Weight: 7.3-oz (208g)
