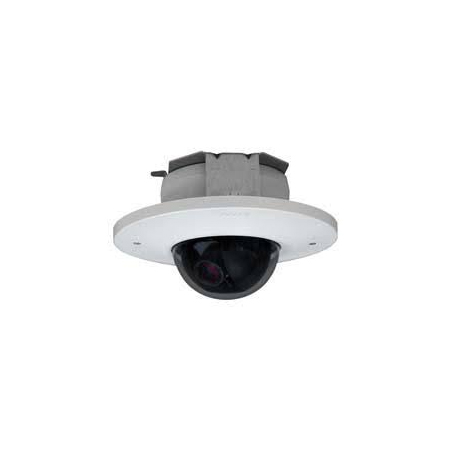

FD2-DWV10-6 Pelco 2.8-10.5mm Varifocal 650TVL Indoor IR Day/Night WDR Dome Analog Security Camera 18-32VAC/12VDC

The FD2 Series is Pelco's general purpose indoor fixed dome camera. It is designed to provide superior picture quality over a wide range of conditions. The camera's attractive size, combined with its numerousfeatures, makes it the ideal camera for most indoor applications.

Specifications

• Image Sensor - Sony 1/3-Inch EXview HAD CCD II
• Signal Processing - Sony DSP, Effio-E
• Effective Pixels
  • NTSC - 976 (H) x 494 (V)
  • PAL - 976 (H) x 582 (V)
• Scanning Area
  • Scanning System - 5.58 (H) mm x 4.67 (V) mm, (0.22 x 0.18 inch)
  • NTSC - 525 lines, 2:1 interlace
  • PAL - 625 lines, 2:1 interlace
• Scanning Frequency
  • NTSC - Horizontal, 15.734 kHz, Vertical, 59.94 Hz
  • PAL - Horizontal, 15.625 kHz,Vertical, 50.00 Hz
• Synchronization - Internal
• Horizontal Resolution - 650 TVL
• Minimum Illumination - f/1.2; 2,850°K; 30 IRE, Color (20 ms for PAL or 17 ms for NTSC) 0.13 lux, Color (500 ms) 0.03 lux, Mono (20 ms for PAL or 17 ms for NTSC) 0.05 lux, Mono (500 ms) 0.00004 lux
• IR Cut Filter - Yes, D/N switch
• Dynamic Range - 120 dB Dual-scan WDR
• Low Light Technology - ICR, DSS
• Electronic Shutter Range - Auto/Manual 1/60 ~ 1/10,000 sec, Auto/Manual 1/50 ~ 1/10,000 sec
• Video Output - 1.0 Vp-p, NTSC/PAL composite, 75 ohms,BNC connector
• White Balance - ATW/Manual/Push/Push, Lock/User1/User2/Anti CR
• Signal-to-Noise Ratio - 48 dB (>52 dB by parameter adjustment)
• Lens - Varifocal
• F-Number - f/1.2
• Focal Length - 2.8 to 10.5 mm
• Focus Range - ∞ to 0.3 m (1 ft)
• Horizontal Angle of View - 101.8° at 2.8 mm wide zoom; 27.4° at 10.5 mm telephoto zoom
• Vertical Angle of View - 73.7° at 2.8 mm wide zoom; 20.6° at 10.5 m telephoto zoom
• Adjusting Angle
  • Panning Range - ±180°
  • Tilting Range - +60° to 0°
  • Rotation Range - ±180°
• Noise Reduction - 2D
• Motion Detection - Included (4 areas)
• Privacy Zones - Included (8 areas)
• Image Stabilization - Included
• Camera Titles - Included
• Alarm Out - 1

General

• Back Box Construction - ABS plastic
• Bubble Type - Lightly obscured
• Weight
  • Unit - 0.30 kg (0.66 lb)
  • Shipping - 0.60 kg (1.32 lb)
• Power Requirement*
  • NTSC - 18 to 32 VAC 60 Hz/12 VDC +10% to –15%
  • PAL - 18 to 32 VAC 50 Hz/12 VDC +10% to –15%
• Power Consumption
  • FD2-F, FD2-V, FD2-DV - 2.5 W
  • FD2-IRV - 4 W
  • FD2-DWV - 4.5 W
• Power Connector - 2-pin terminal block with screw trminals
• Video Connector - BNC
• Alarm Output - 2-pin terminal block with screw terminals (available on some models)

Environmental

• Operating Temperature - –10° to 50°C (14° to 122°F)
• Storage Temperature - –20° to 60°C (–40° to 140°F)
• Operating Humidity - 20% to 80%, noncondensing
• Storage Humidity - 20% to 90%, noncondensing
