EH16-2P Pelco GP Housing IP66 UL CE Megapixel Win 24 VAC PoE af

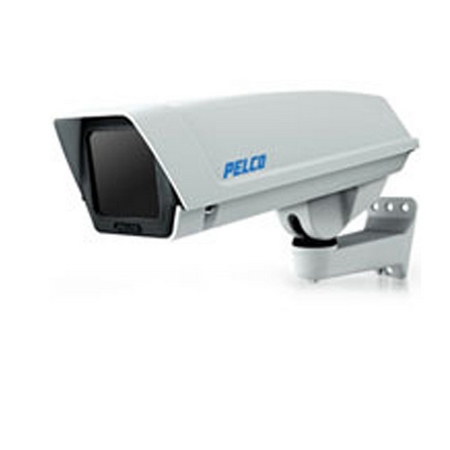

The EH16 Series is an indoor/outdoor, highly reliable camera enclosure with a compact body designed for easy installation. Constructed from die-cast aluminum, the EH16 Series enclosure is designed to operate in a wide range of environments and to protect electronic components in temperatures from –30° to 60°C (–22° to 140°F). The EH16 Series enclosure is designed for use with analog and IP cameras that have both fixed and variable focal length lenses (with or without auto iris operation). The tethered, detachable lid provides easy access to the innovative camera sled. Two adjustable glands (PG9 and PG11) on the bottom of the enclosure allow for easy installation of the power and video cables.

Specifications

MECHANICAL

• Camera Mounting - Single slot for adjustable camera positioning on snap-in camera sled
• Camera and Lens Size - Accepts camera and lens combinations (including BNC connector) up to 22.86 x 7.92 x 7.62 cm (9.00" L x 3.12" W x 3.00" H)
• Viewing Window - 0.3 cm (0.118-inch) thick, high optic grade, scratch-resistant Lexan
• Viewing Area - 7.14 x 6.27 cm (2.81" W x 2.47" H)
• Cable Entry - 1 x PG9 and 1 x PG11 compression glands on bottom
• Maximum Cable Diameters
  • PG9 - 0.80 cm (0.312 in.)
  • PG11 - 1.00 cm (0.395 in.)
• Cable Entry Holes - 1.00 x 1.91 cm (0.750 in.) diameter and 1.00 x 1.60 cm (0.630 in.) diameter; 1.91 cm (0.750-inch) hole will accept 1/2-inch NPT conduit fitting when enlarged to 2.22 cm (0.875 inches); 1.60 cm (0.630-inch) hole will accept 1/4-inch NPT conduit fitting
• Lid Fastening - 3 Torx-head T30 screws

ELECTRICAL

• Input Power - 24 VAC, IEEE802.3at, or 230 VAC
• Input Voltage
  • PoE - IEEE802.3at
  • 24 VAC - ±10% VAC
  • 230 VAC - ±10% VAC

GENERAL

• Construction - Die-cast aluminum
• Finish - Alodine with gray polyester powder coat
• Environment - Indoor/outdoor ambient temperature –30°to 60°C (–22° to 140°F)
• Unit Length
  • Base - 33.99 cm (13.38 in.)
  • Overall - 36.55 cm (14.39 in.)
• Weight
  • Unit - 1.27 kg (2.80 lb)
  • Shipping - 1.91 kg (4.20 lb)

EH16-2P Specifications PDF
