ENC5516-US Pelco 16 Channel Analog Video Encoder 30FPS @ 720 x 480

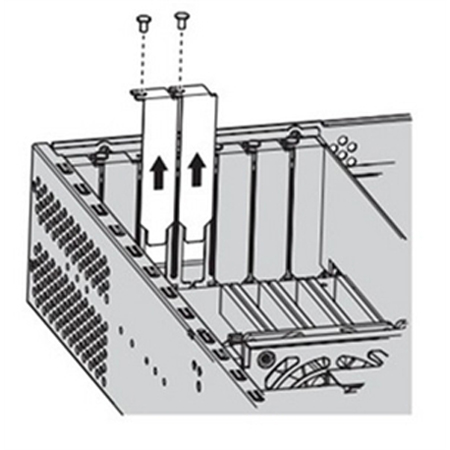

Digital Sentry ENC5516 video encoder is purpose-built to provide direct-attached support for analog cameras on the high-performance Digital Sentry network video recorder (NVR) platform, and provides unique and affordable support for IP migration. The ENC5516 is a convenient replacement for existing DVRs and lets customers leverage their existing analog wiring infrastructure. Existing analog infrastructure means existing analog wiring structures must be supported. Use the ENC5516 for capturing the BNC connections from other recording systems. Directly attach up to four ENC5516s through supplied cables to one DSSRV to accommodate up to 64 analog cameras. Add the ENC5516 to your DSSRV for an integrated, high-performance IP migration platform.

VIDEO/AUDIO

• Video Standards - NTSC/PAL
• Video Encoding - H.264, Main profile
• Video Resolutions
  • Analog Cameras
    • NTSC
      • D1 - 720 x 480
      • 2CIF - 720 x 240
      • CIF - 352 x 240
    • PAL
      • D1 - 720 x 576
      • 2CIF - 720 x 288
      • CIF - 352 x 288
• Video Output - 2 BNC connectors (1 for MUX and 1 for spot monitor); 16 BNC looping video output)
• Audio Input - 16 channels
• Audio Format - Pulse code modulation (PCM)
• Sampling Resolution - 8- or 16-bit
• Sampling Frequency - 4, 8, 16, or 32 kHz

PTZ CONTROL

• Interface - 2; RS-422, RS-485, video in
• Protocol - Pelco P, Pelco C, and Pelco D

ALARMS/RELAYS

• Alarms In - 16
• Relays Out - 4

POWER

• Power Consumption
  • Input Voltage - 12 VDC (through supplied auto-ranging 90 to 240 VAC power adapter)
• Current - 2130 mA
• Power - 25.56 W (maximum ±5%)

FRONT PANEL INDICATORS

• PWR1 - Green when the power source is connected
• PWR2 - Green when the power source is connected
• LINK - Green when the host is turned on and a connection is made between the encoder and the host
• INFO - Blinks green when the firmware is updating
• Video Input (1 to 16 Channels) - Green when detecting an active video signal on the corresponding video input connector

ENVIRONMENTAL

• Operating Temperature - 0° to 60°C (32° to 140°F)
• Operating Humidity - 85% maximum relative humidity, noncondensing

PHYSICAL

• Dimensions - 18.9 x 44.2 x 4.4 cm (7.5" D x 17.4" W x 1.7" H)
• Unit Weight - 2.7 kg (6 lb)
• Shipping Weight - 5.4 kg (12 lb)
