TVS-H1288X-W1250-16G-US QNAP 12 Bay Desktop 3.3GHz Intel Xeon W-1250 6-core 16GB ECC RAM - No HDD

The high-capacity TVS-h1288X features a powerful Intel Xeon W processor and allows for installing two QNAP QXP-T32P Thunderbolt 3 PCIe expansion cards (sold separately) to attain four Thunderbolt 3 ports, making it a perfect match for Thunderbolt -equipped Mac and Windows users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1288X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.

• CPU - Intel Xeon W-1250 6-core/12-thread processor, up to 4.7 GHz
• CPU Architecture - 64-bit x86
• Graphic Processors - Intel UHD Graphics P630
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)
• Hardware-accelerated Transcoding - Yes
• System Memory - 16 GB ECC UDIMM DDR4 (2 x 8 GB)
• Maximum Memory - 128 GB (4 x 32 GB)
• Memory Slot - 4 x UDIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules
• Flash Memory - 5GB (Dual boot OS protection)
• Drive Bay - 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD
• Drive Compatibility
  • 3.5-inch bays:
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
  • 2.5-inch bays:
  • 2.5-inch SATA solid state drives
• Hot-swappable - Yes (Not supported M.2 SSD)
• M.2 Slot - 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots Compatible with NVMe SSD PCIe Gen 3 and above
• SSD Cache Acceleration Support - Yes
• GPU pass-through - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 4 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) - Optional via an adapter
• 10 Gigabit Ethernet Port - 2 x 10GBASE-T (10G/1G)
• 25 Gigabit Ethernet Port - Optional via an adapter
• Wake on LAN (WOL) - Yes Only the 2.5GbE port
• Jumbo Frame - Yes

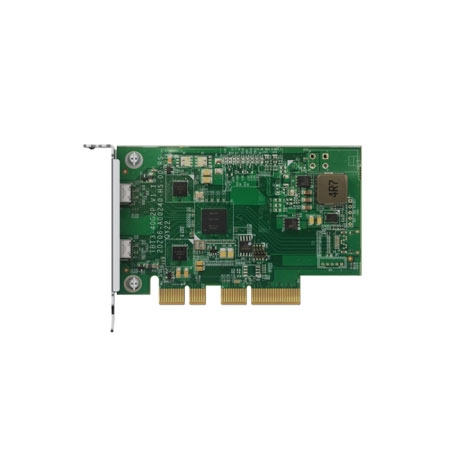

• Thunderbolt Port - Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported
• PCIe Slot
  • 3
  • Slot 1: PCIe Gen3 x8
  • Slot 2: PCIe Gen3 x4
  • Slot 3: PCIe Gen3 x4
  • *Slot 1 is preinstalled with a 2-port 10GbE network adapter
  • Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches
  • Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches
  • Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches
  • Wider cards can be installed if the next PCIe slot will not be used
• USB 3.2 Gen 2 (10Gbps) Port - 2 x Type-C 3 x Type-A
• HDMI Output - 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
• Audio Input - - (No longer available on units manufactured on or after 2021/1/1)
• Audio Output - - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
• Form Factor - Tower
• LED Indicators - System status, LAN, USB, Disk 1~12, M.2 SSD 1~2
• LCD Display/ Button - Yes
• Buttons - Power, Reset, USB Auto Copy
• Dimensions (HxWxD) - 8.87 × 14.56 × 12.59 inch Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
• Weight (Net) - 29.3 lbs
• Weight (Gross) - 32.41 lbs
• Operating Temperature - 0 - 40°C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
• Power Supply Unit - 550W PSU, 100~240V
• Power Consumption: Disk Standby Mode - 85.216
• Power Consumption: Operating Mode, Typical - 97.492 W Tested with drives fully populated
• Fan - System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC
• System Warning - Buzzer
• Kensington Security Slot - Yes
• Standard Warranty - 3
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 10000

TVS-h1288X-W1250-16G-US Specifications PDF
