DP-236Q Seco-Larm Wireless Video Door Phone

Search available promotions and discounts for this Item

SKU: DP-236Q

Brand: Seco-larm

Talk with visitors and unlock doors or gates via the monitor
Handheld monitor's rechargeable battery allows convenient communication with visitors while moving around the premises
Wide 33/8" monitor screen for enhanced viewing
Connect up to two additional monitors (sold separately)
Includes a kickstand and charging base for the monitor
Egress input allows the door phone to be connected with a Request-to-Exit Plate or other egress device
9~16 VAC/VDC Operation – connects to most doorbell circuits

More details...

Search available promotions and discounts for this Item

MPN: DP-236Q

MSRP Price: $550.80

Online Price: $550.80

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Camera

Type - Color Camera
Chip - CMOS
Resolution - 480 TV Lines
Lens - 2mm
Viewing angle -120°
Operating voltage - 9~16 VAC/VDC
Relock delay - 1~6 s
Relay output - 3A@250VAC/30VDC
Current draw - Active: 200mA@4.2VDC, Standby: 3mA@4.2VDC
Battery life - Active: 3 Hours, Standby: 300 Hours (12.5 days)
PIR Detection range - 9' (3m)
PIR Detection angle - 138°
Dimensions - 511/16"x31/8"x23/8" (144x80x60 mm) with bracket
Weight - 4.3-oz (122g)
Operating temperature - 14°~122° F (-10°~50° C)

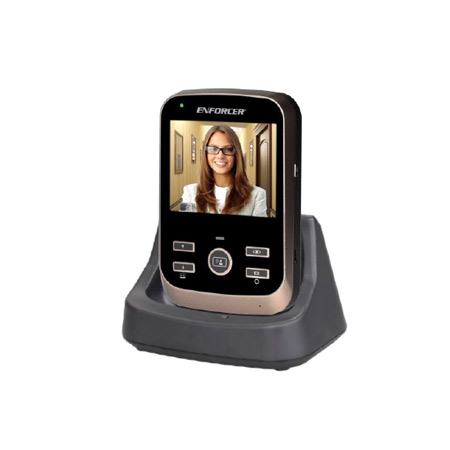

Monitor

Display - 33/8" (86mm) TFT
Operating voltage - 5VDC (Battery)
Current draw - Active: 220mA@4.2VDC, Standby: 3mA@4.2VDC
Battery life - Active: 3 Hours, Standby: 500 Hours (20 days)
Operating frequency - 2.4GHz
Wireless range - 492' (150m)*
Dimensions - 5"x33/8"x7/8" (127x85x22 mm)
Weight - 3.9-oz (110g)
Operating temperature - 32°~104° F (0°~40° C)

DP-236Q Specifications PDF

DP-236Q Manual
