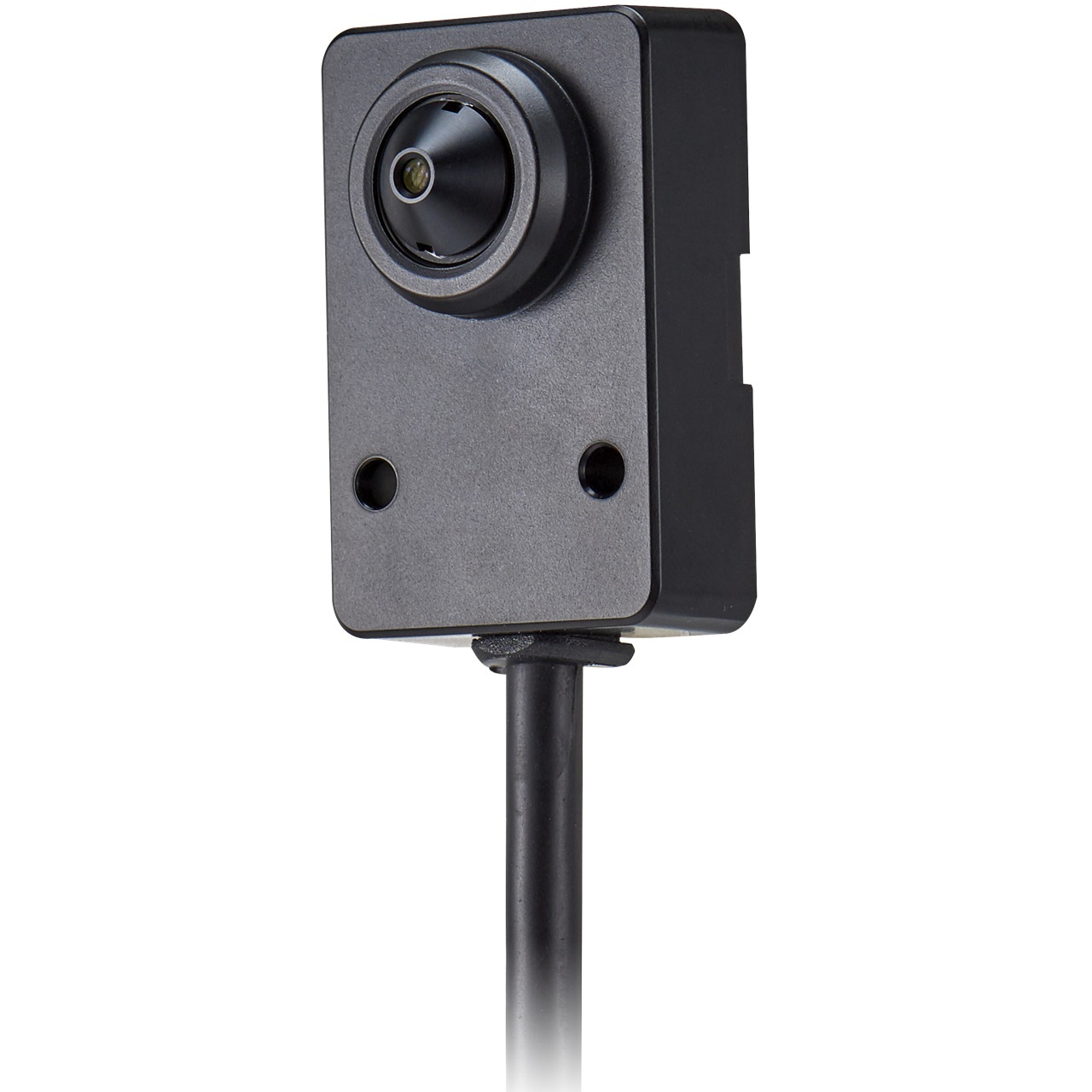

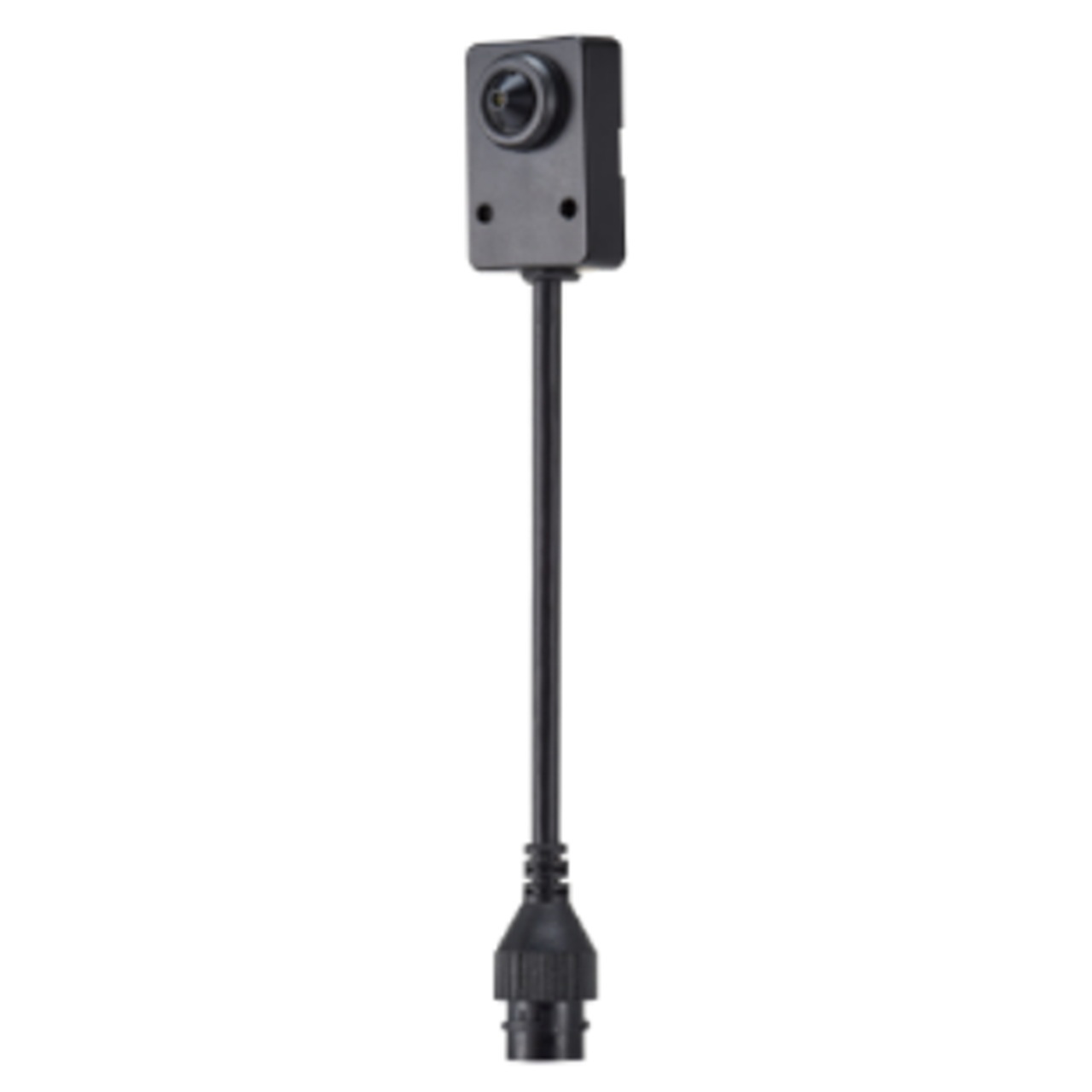

SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens

SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens	SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens	SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens
(Click to see larger image and other views)

SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens

SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens	SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens	SLA-T4680V Hanwha Vision 4.6mm 1080p Pinhole Lens
(Click to see larger image and other views)

SKU: SLA-T4680V

Brand: Hanwha Vision

4.6mm Pinhole Lens Module

Features:

4.6mm pinhole lens module
right angle body style
2MP resolution
0.06 Lux
120dB WDR
FoV: H:73°
8m (26ft) cable

Right angle body style lens module for the XNB-6001

More details...

MPN: SLA-T4680V
EAN: 8801089125088

MSRP Price: $215.00

Web Price$215.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Video

Imaging Device - 1/2.8" CMOS
Effective Pixels - 1,945(H)x1,109(V) 2.16M
Min. Illumination - Color(1/30sec, 30IRE) 0.06, BW(1/30sec, 30IRE) 0.06

Lens

Focal Length (mm) - 4.6
Max. Aperture Ratio (F number) - Wide 2.5
Field of View - H: 73°, V: 39°, D:85°
Mount Type - RJ12 connected with main unit
Focus Control - Fixed

Environmental & Electrical

Operating Temperature / Humidity - -10°C~+55°C(+14°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 90% RH

Mechanical

Color - Black
Material - Plastic, Metal
Product Dimensions - 30x20.2x45mm(1.18"x0.80"x1.77")
Product Weight - 321g (0.71 lb)

SLA-T4680V Specifications PDF
