SLA-2M1200P Hanwha Techwin 1/2.8" 2MP CMOS with a 12.0mm fixed focal lens

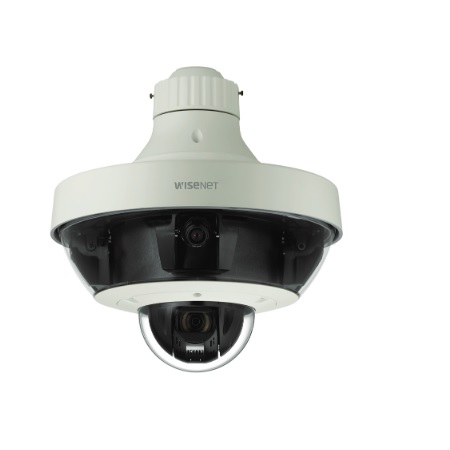

1/2.8" 2MP CMOS with a 12.0mm fixed focal lens, FoV: H: 26.3˚, V: 14.9˚, for the PNM-9320VQP

Specifications

Video

• Imaging Device - 1/2.8" 2M CMOS
• Total Pixels - 1945(H) x 1109(V) 2.16M
• Effective Pixels - 1945(H) x 1097(V) 2.13M
• Scanning System - Progressive Scan
• Min. Illumination
  • Color : 0.055Lux (F2.0, 1/30sec, 30IRE)
  • B/W : 0.055Lux (F2.0, 1/30sec, 30IRE)
• S/N Ratio - 50dB
• Wide Dynamic Range - 150dB
• Day & Night - Electrical

Lens

• Focal Length (Zoom Ratio) - 12mm
• Max. Aperture Ratio - F2.0
• Angular Field of View - H : 26.3˚ V : 14.9˚ D : 30.0˚
• Lens Type - Fixed focal
• Mount Type - M12 Lens module with main unit

Pan/Tilt/Rotate

• Pan/Tilt/Rotate Range - -90˚~+90˚ / +10~+97˚ / -180˚~+180˚

Mechanical

• Color/Material - Black / Plastic
• Dimension (W x H x D) - Ø35.5 x 35.9 mm (Ø 1.39" x 1.41")
• Weight - 30g (0.07 lb)

SLA-2M1200P Specifications PDF
