SLA-5M3700P Hanwha Techwin 1/1.8" 5MP CMOS with a 3.7mm fixed focal lens

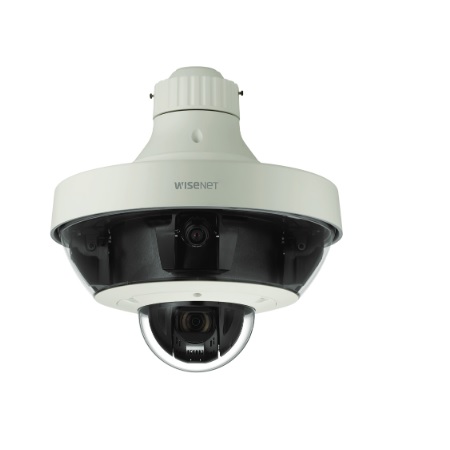

1/1.8" 5MP CMOS with a 3.7mm fixed focal lens, FoV: H: 97.5˚, V: 71.9˚ for the PNM-9320VQP

Specifications

Video

• Imaging Device - 1/1.8" 5M CMOS
• Total Pixels - 3096(H) x 2094(V)
• Effective Pixels - 2616(H) x 1976(V)
• Scanning System - Progressive Scan
• Min. Illumination
  • Color : 0.16Lux (F1.6, 1/30sec, 30IRE)
  • B/W : 0.16Lux (F1.6, 1/30sec, 30IRE)
• S/N Ratio - 50dB
• Wide Dynamic Range - 120dB
• Day & Night - Electrical

Lens

• Focal Length (Zoom Ratio) - 3.7mm
• Max. Aperture Ratio - F1.6
• Angular Field of View - H:97.5˚, V:71.9˚, D:126.2˚
• Lens Type - Fixed focal
• Mount Type - M12 Lens module with main unit

Pan/Tilt/Rotate

• Pan/Tilt/Rotate Range - -90˚~+90˚ / +36~+73˚ / -180˚~+180˚

Mechanical

• Color/Material - Black / Plastic
• Dimension (W x H x D) - Ø35.5 x 35.9 mm (Ø 1.39" x 1.41")
• Weight - 35g (0.08 lb)

SLA-5M3700P Specifications PDF
