Control from Anywhere

Minuteman RPMs offer a secure connection which is accessible from any device with a standard internet browser, including desktop and laptop PCs, smartphones, and tablets. From these devices, users can control and configure all aspects of the device, including:

• LAN Connection: The RPM is an IP-based PDU that connects to your network via CAT5 cable
• Control Individual Outlets: Power on/off, reboot, and monitor up to 2 individual devices from a single IP address
• Scheduled Management Actions: save power with automatic shutdown and startup of devices over weekends or holidays
• Notifications via SNMP, SMS Text, or Email: To keep you informed of events such as a server shutdown, the RPM can submit its notifications via SMS text message, or email to up to three addresses

RPM Benefits

• Utilizing Minuteman’s remote power manager products allows technicians and administrators to:
• Save Time: Reboot remote devices in seconds, not minutes or hours
• Increase Productivity: Eliminate help desk calls & lost time when a device locks up: RPM notifies & provides automatic reboot capabilities
• Cut Costs: Eliminate service calls to remote locations by managing devices from your computer or smartphone

Minuteman RPM Series Standard Features

• IP-addressable Remote Power Manager - Built-in web server and two power outlets
• Control Power Equipment Remotely - Via the Internet without on-site presence of service personnel
• Instant Notifications to Eliminate Downtime - Email, SMS text messages and trap notification will be generated when power events have occurred
• Two Independently Controllable Ports - Each AC power outlet can be independently switched ON/OFF, power cycled for immediate reboots or rebooted with timed delays and power event scheduling
• LED Indicators - For power status and control mode indication
• Supports Power Start Sequencing - Prevents all of the connected devices from starting simultaneously to limit the in-rush current to the RPM
• Easy Web Setup - For scheduling daily, weekly, monthly & yearly power operations on a specific outlet
• Auto-Ping Feature - Monitors & auto detects any failed network equipment and performs a timed reboot
• Protected Access - Helps manage user privileges and prevent unauthorized access to the control menu through the network, supports secure email (TLS)
• Provides Multi-Group Accounts - Lets different users control different power outlets
• Supports SYSLOG, Web API function, and SSL (Compatible SNMP v1, v2c, v3)
• Overload and Connected Equipment Protection via the Input Circuit Breaker
• Rack Mountable Design with Holes on the Side of the Metal Enclosure - With optional rack-mounting kit (BRKT RM RPM1521)
• Provides Surge Protection - Eliminate disrupting/damaging effects of momentary voltage spikes or surges

Tour the product

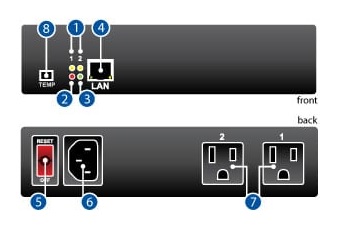

Front Panel Display and Controls:

The front panel controls will have the following indicators and function buttons:

1. LED #1 is illuminated when output receptacle #1 is ON. LED #2 is illuminated when output receptacle #2 is ON
2. Reset LED will flash when the Reset function is being performed
3. Utility Power LED is illuminated when there is an acceptable AC voltage present
4. RJ-45 Ethernet Port for connecting to the network
5. Power Switch & Breaker Protection
6. Utility Power Inlet
7. Output Receptacles
8. Temperature Probe (Optional)

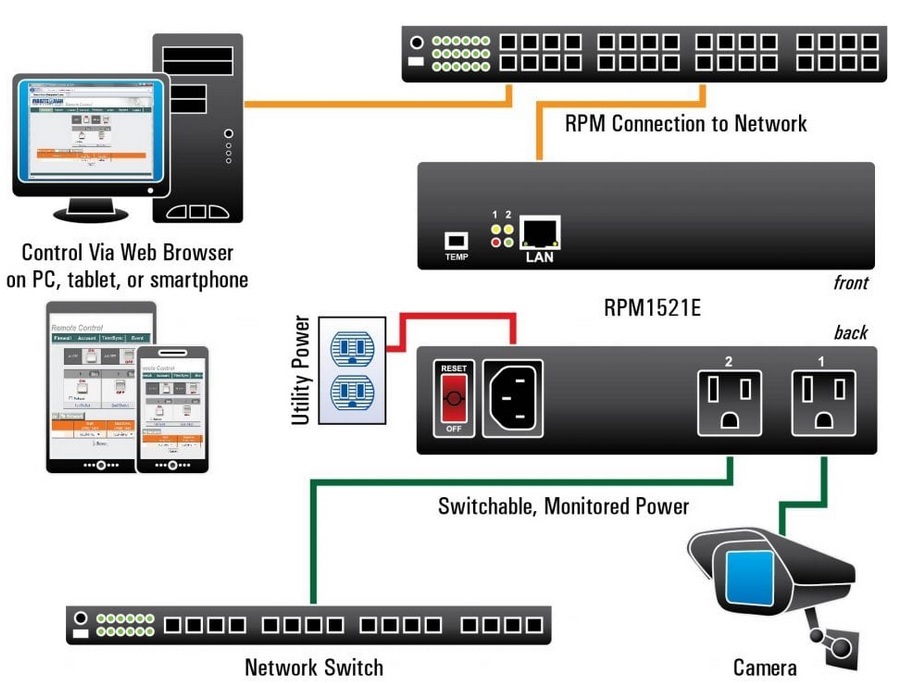

Sample Installation:

Specifications

Model Number - RPM1521E

General Specifications

• Number of Phases - Single (1Ø 2W + G)
• Input & Output Voltage - 100 - 120VAC
• Input & Output Frequency - 47 - 63Hz
• Total Output Current (max) - 12 Amp (at 120V)
• Surge Energy Rating - 800 J
• Input Protection - Re-settable Power Switch, 15 Amp Breaker
• Operating Temperature - 0 – 60ºC (+32 - +140ºF)
• Storage Temperature - -15 to +60°C (+5 to +140°F)
• Operating/Storage Humidity - 0 - 95% Non-Condensing
• Operating Elevation - 0 to 3,000m (0 to +10,000 ft)
• Storage Elevation - 0 to 15,000m (0 to +50,000 ft)
• Utility Power Inlet - IEC 320 C14
• Power Cord - IEC 320 C13 to NEMA 5-15P (6ft)
• Output Receptacles - NEMA 5-15R
• Net Dimensions (L x W x H) - 7.17 x 4.90 x 1.70” 182 x 125 x 44mm
• Net Weight - 1.78 lbs 0.806 kgs
• Shipping Dimensions (L x W x H) - 9.60 x 8.50 x 3.10” 245 x 217 x 80mm
• Shipping Weight - 2.78 lbs 1.26 kgs
• Saftey Certification - cTUVus*
