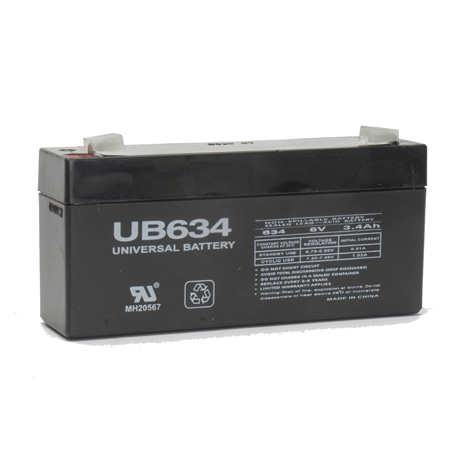

D5732 UPG UB634 Sealed Lead Acid Battery 6 Volts/3.4Ah - F1 Terminal

Specifications

• Nominal Voltage - 6 volts
• Nominal Capacity
  • 20-hr. (0.17A) - 3.4 Ah
  • 10-hr. (0.32A) - 3.2 Ah
  • 5-hr. (.58A) - 2.9 Ah
  • 1-hr. (2A) - 2 Ah
• Approximate Weight - 1.52 lbs (0.69 kgs)
• Internal Resistance (approx.) - 38mΩ
• Max Charge Current(A) - 1A
• Case - ABS Plastic
• Shelf Life (% of normal capacity at 77° F (25° C))
  • 3 Months - 91%
  • 6 Months - 82%
  • 12 Months - 64%
• Temperature Dependancy of Capacity
  • 104° F - 102%
  • 77° F - 100%
  • 32° F - 85%
  • 5° F - 65%
• Float Use
  • Control Voltage - 6.8 - 6.9 V
• Initial Current - 1 A or smaller
• Model No - UB634-F1
• Control Voltage - 7.3 - 7.4 V

D5732 Specifications PDF
