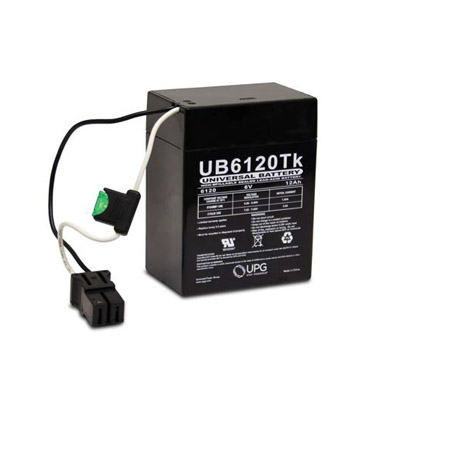

D5737 UPG UB6120 TOY Sealed Lead Acid Battery 6 Volts/12Ah - P2 Terminal

Specifications

• Nominal Voltage - 6 volts
• Nominal Capacity- 77° F (25° C)
• 20-hr. (0.60A) - 12.0 Ah
• 10-hr. (1.12A) - 11.2 Ah
• 5-hr. (2.04A) - 10.2 Ah
• 1-hr. (7.20A) - 7.20 Ah
• Approximate Weight - 5.18 lbs (2.3 kgs)
• Internal Resistance (approx.) - 15m O
• Shelf Life (% of normal capacity at 68° F (20° C)
  • 3 Months - 91%
  • 6 Months - 83%
  • 12 Months - 64%
• Temperature Dependancy of Capacity (20 hour rate)
  • 104° (40 C) F - 102%
  • 77° (25 C) F - 100%
  • 32° (0 C) F - 85%
  • 5° (-15 C) F - 65%
• AGM Operational Temperature
  • Charge - 32° F to 113° F (0° C to 45° C)
  • Discharge - 5° F to 131° F (-15° C to 55° C)
• AGM Storage Temperature - 5° F to 104° F (-15° C to 40° C)
• Cycle Use (Repeating Use)
  • Initial Current - 3.6 A or smaller
  • Control Voltage -7.30-7.40 V
• Float Use
  • Control Voltage - 6.80-6.90 V
