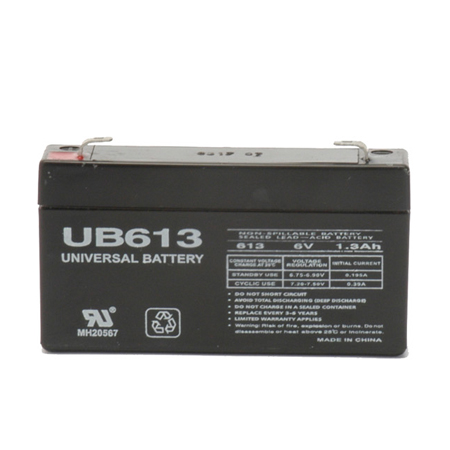

D5731 UPG UB613 Sealed Lead Acid Battery 6 Volts/1.3Ah - F1 Terminal

Specifications

• Nominal Voltage - 6 volts
• Nominal Capacity - 77^° F (25^° C)
  • 20-hr. (0.07A) 1.3 Ah
  • 10-hr. (0.12A) 1.2 Ah
  • 5-hr. (0.22A) 1.1 Ah
  • 1-hr. (0.78A) 0.78 Ah
• Approximate Weight - 0.64 lbs (0.29 kg)
• Internal Resistance (approx.) - 61mΩ
• Shelf Life (% of normal capacity at 77^° F (25^° C))
  • 3 Months - 91%
  • 6 Months - 82%
  • 12 Months - 64%
• Temperature Dependancy of Capacity
  • 104^° F - 102%
  • 77^° F - 100%
  • 32^° F - 85%
  • 5^° F - 65%
• AGM Operational Temperature - -20 C to 45 C
• AGM Storage Temperature - -20 C to 45 C
• Charge Method(Constant Voltage)
• Cycle Use (Repeating Use)
  • Initial Current - 0.40 A or smaller
  • Control Voltage - 7.25-7.45 V
• Float Use
  • Control Voltage - 6.80-6.90 V

D5731 Specifications PDF
