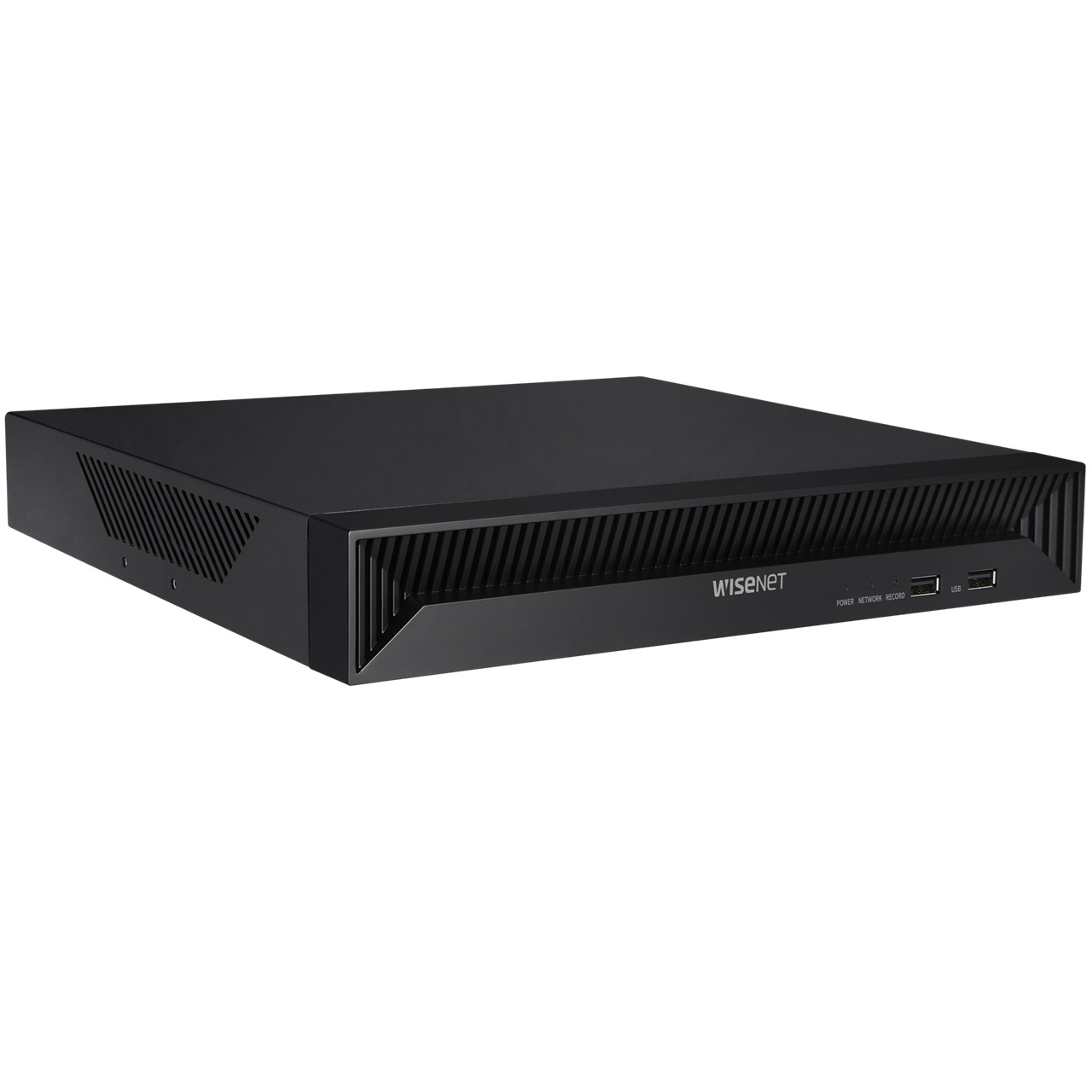

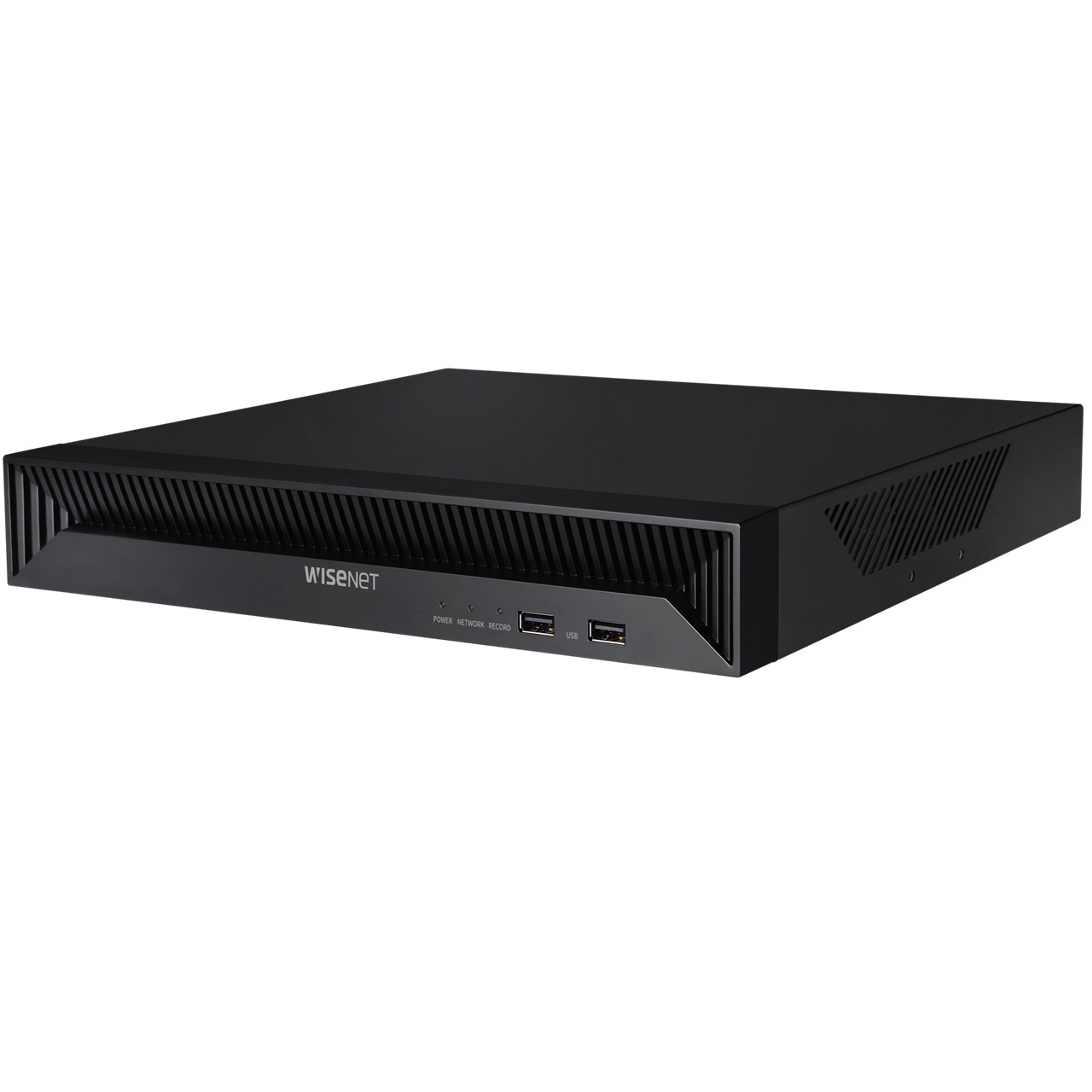

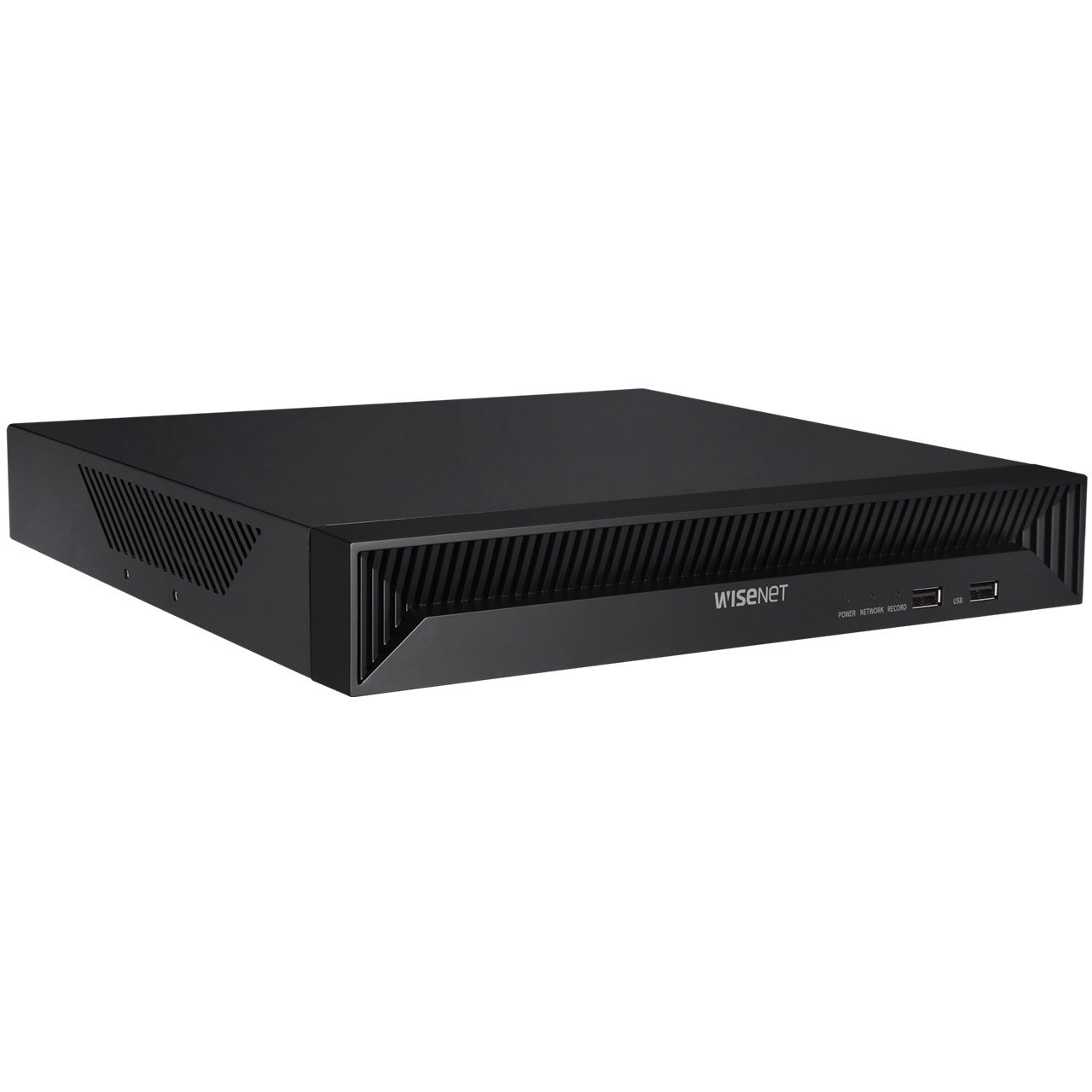

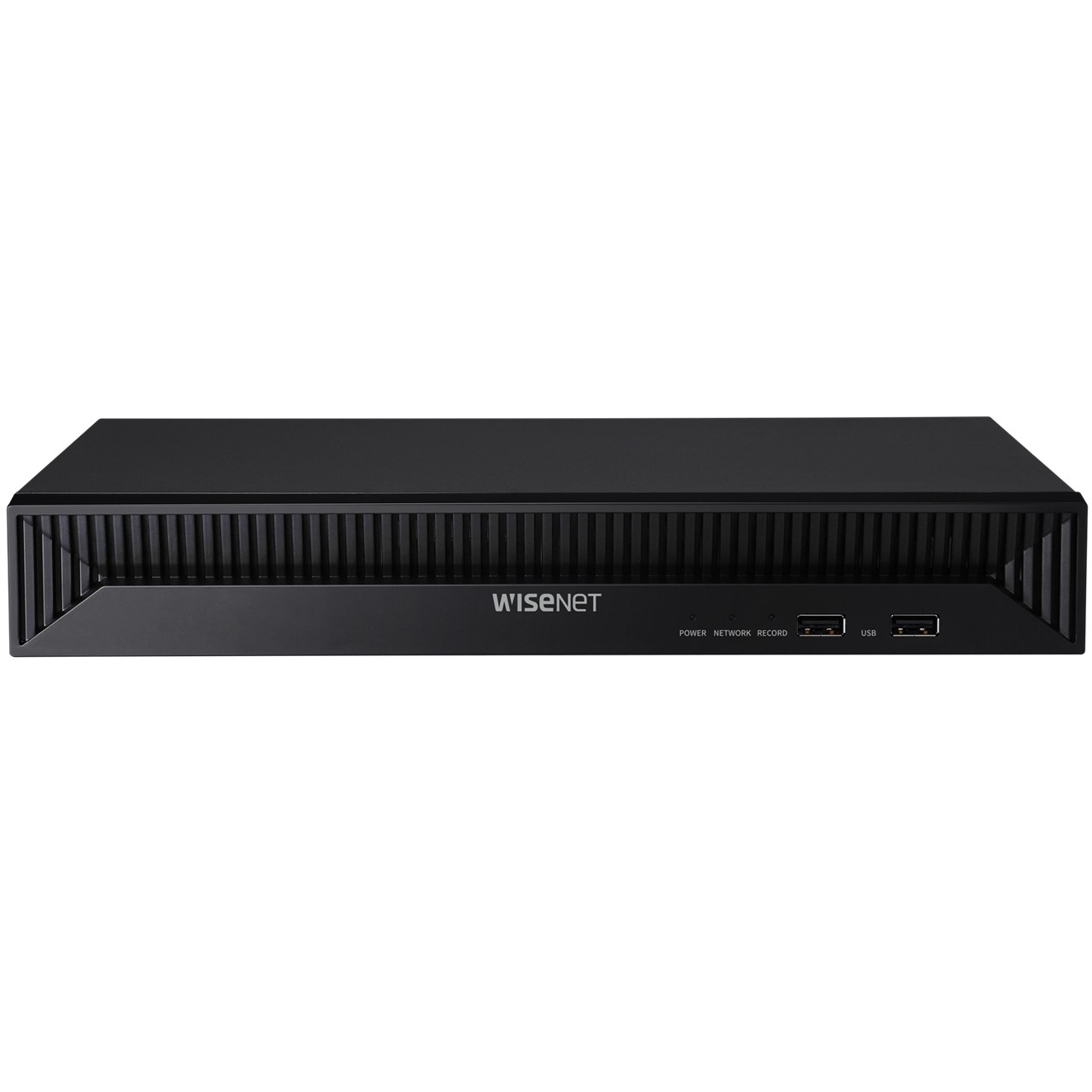

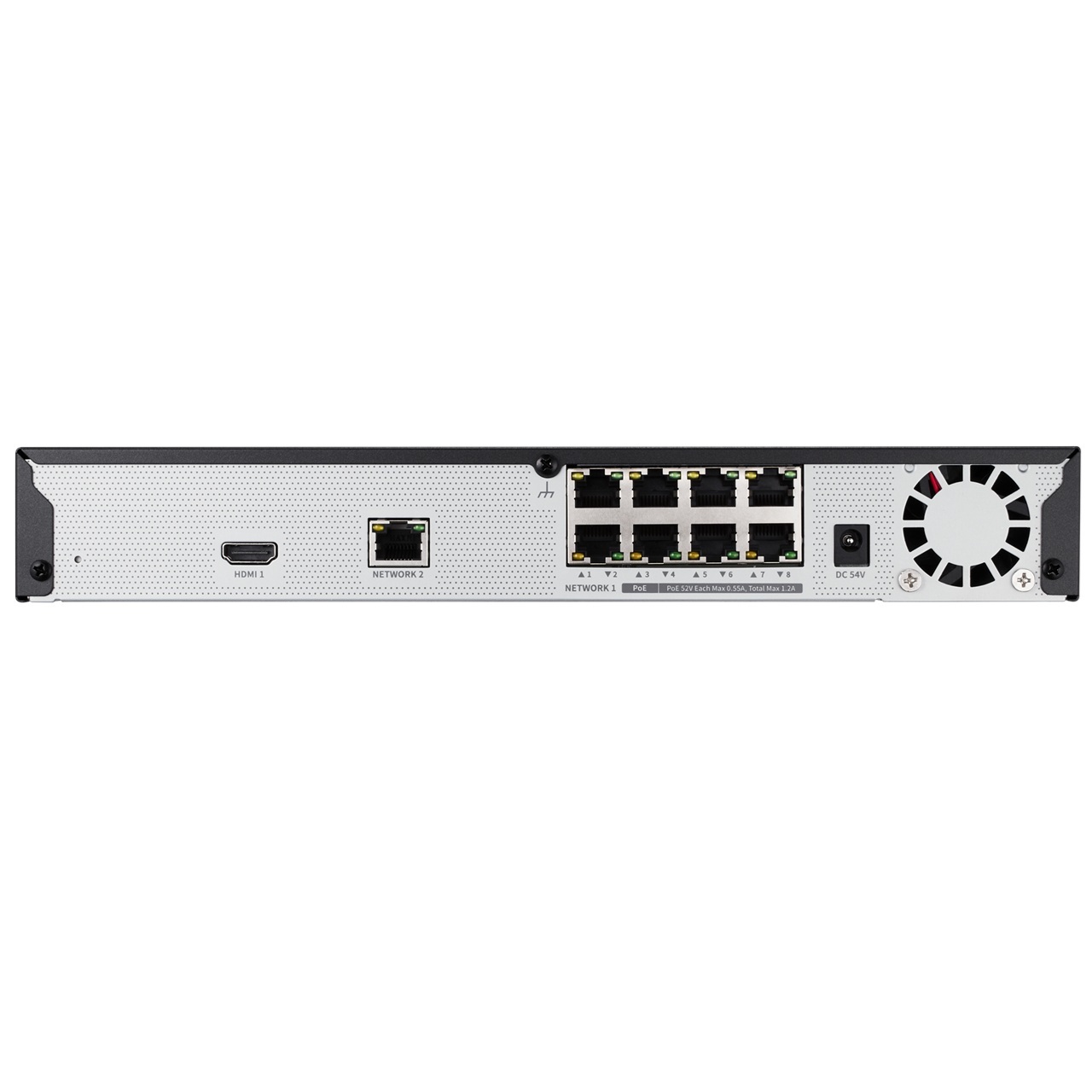

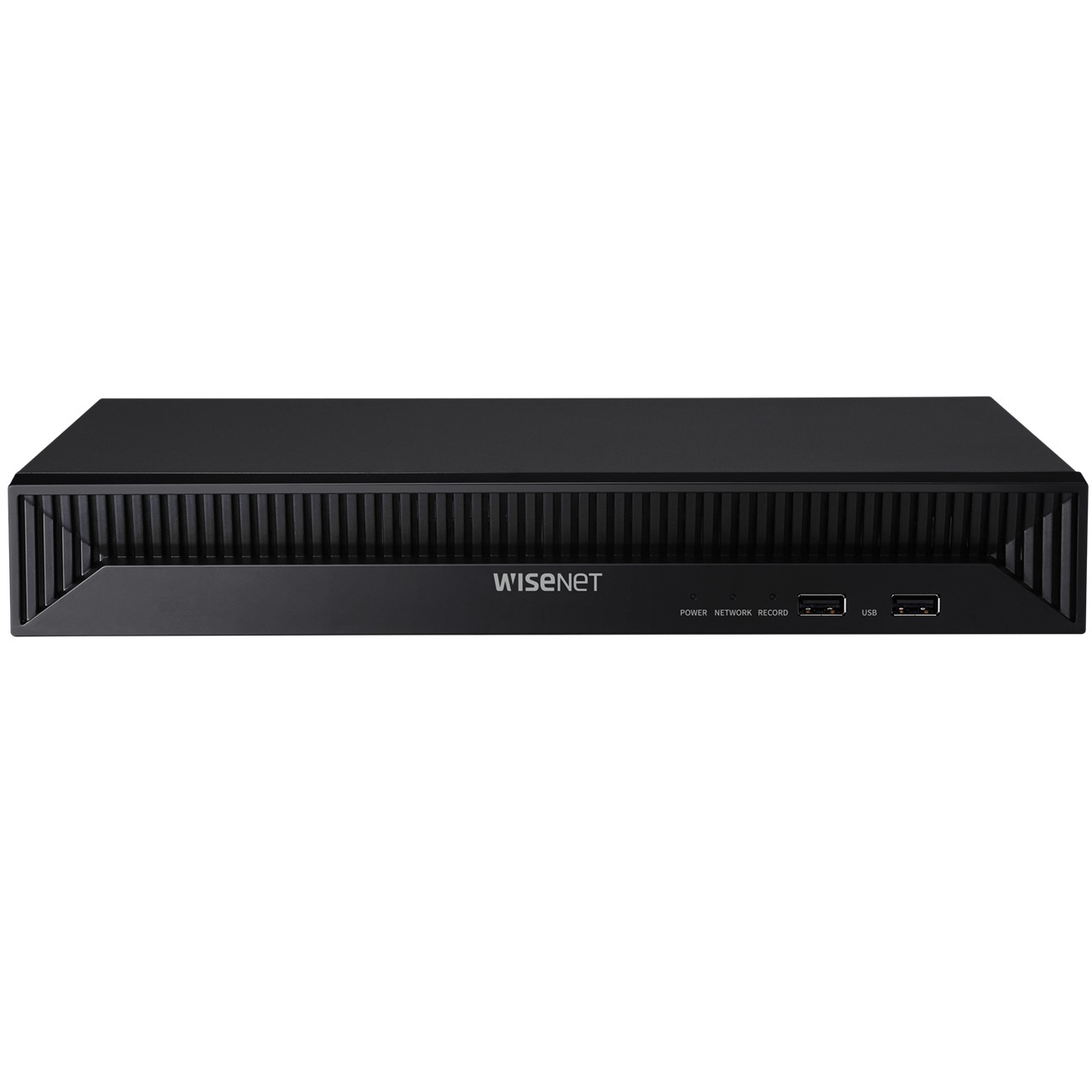

QRN-830S Hanwha Techwin 8 Channel at 4K (2160p) NVR 80Mbps Max Throughput - No HDD with Built-in 8 Port PoE

SKU: QRN-830S

MPN: QRN-830S
EAN: 8801089182999

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Display

Network Camera
- Inputs - Max. 8CH
- Resolution - 8MP ~ CIF
- Protocols - SUNAPI, ONVIF
Decoding
- Local Display - HDMI :3840x2160(30Hz)
- Multi Screen Display - [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Resolution - [Local Monitor] 8M(60fps), 1080p(240fps), 720P(240fps), D1(240fps)
- Performance - Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps), 720p (240fps), D1 (240fps)

Performance

Operating System
- Embedded - Linux
Record
- Compression - H.265, H.264, MJPEG
- Recording Bandwidth - Max. 80Mbps
- Resolution - 8MP ~ CIF
- Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Event Trigger - Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
Search & Play
- Playback Bandwidth - Max. 32Mbps
- User - Max. 4 Users (Local 1, Remote 3)
- Simultaneous playback - Max. 32CH(Local 8CH, Remote 8CH per user)
- Fisheye Dewarping - CMS
- Mode - Date & Time(Calendar), Event list, Text Search, Smart Search
- Resolution - CIF ~ 8MP
- Playback Control - Fast/Slow Forward/Backward, Move one step up/down
Storage
- Supported HDD - Up to 6TB
- HDD Slot - SATA 1ea(Max. 6TB)
Backup
- File backup - BU/Exe/AVI(GUI), JPG/AVI(Network)
- Function - Multi channel(Up to 8CH) Play, Date-Time/Title display

Network

Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS - Hanwha DDNS
Transmission Bandwidth - Max. 80Mbps
Audio
- Input/Output - 8CH (Network)
- Compression - G.711, G.726, AAC(16/48KHz)
- Audio Communication - 2-way
Max. Remote Users - Search(3), Live Unicast(10), Multicast(20)
Security - IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
- Supported OS - Windows 10, macOS 11
- Supported browser - Google Chrome, Microsoft Edge, Mac Safari
Viewer Software - WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS

Functions

Camera Setup
- Register - Auto, Manual
- Items - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
- Control - Via GUI, Webviewer
- Preset - 300 Presets
Smart Phone
- Support Model - iOS, Android
- Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
- Control - Live: Multi-Profile Support, Multi Channel Playback
- Max. Remote Users - Search(3), Live Unicast(10)
Redundancy
- Failover - N+1
- ARB - Support
Easy configuration - P2P(QR code)

Interface

System

Log
- Log List - Max. 100,000 (System Log, Event Log each)
System Control - Mouse, Keyboard, Web
Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

Electrical

Mechanical
