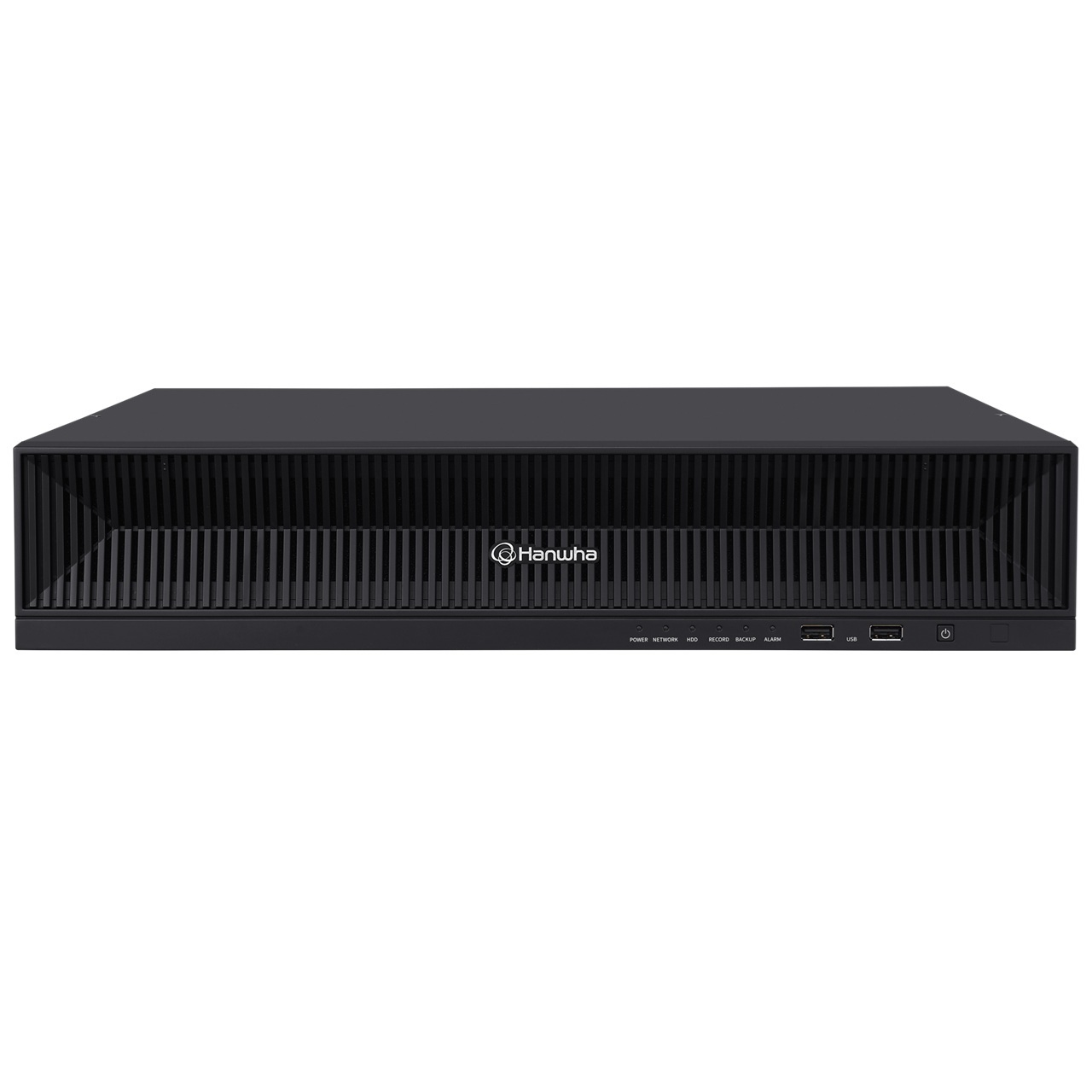

PRN-3200B2 Hanwha Vision 32 Channel at 8K NVR 400Mbps Max Throughput - No HDD

Specifications

Display

Network camera

• Inputs - Max. 32CH
• Resolution - 32MP ~ CIF
• Protocols - SUNAPI, ONVIF

Decoding

• Local Display - [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)
• Multi Screen Display - [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 36 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
• Resolution - 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)

Performance

Operating System

• Embedded - Linux

Record

• Compression - H.265, H.264, MJPEG, WiseStream(H.265, H.264)
• Recording Bandwidth - Distributed mode : Up to 400 Mbps, Normal mode : Up to 150 Mbps [RAID mode] Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps
• Resolution - 32MP ~ CIF
• Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
• Event Trigger - Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
• Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown

Search & Play

• Playback Bandwidth - RAID Mode : Max. 64Mbps Non-RAID Mode : Max. 32Mbps
• User - Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback - Max. 80CH(Local 32CH, Remote 16CH per user)
• Fisheye Dewarping - Support (Local 1CH), CMS
• Mode - Date & Time(Calendar), Event list, Text Search, Smart Search
• Resolution - CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
• Playback Control - Fast/Slow Forward/Backward, Move one step Up/Down

Storage

• Supported HDD - Up to 10TB
• HDD Slot - SATA 8ea(Max. 80TB, Non-RAID mode)
• External - iSCSI storage
• RAID - RAID-5/6(Single,1 Array))

Backup

• File backup - BU/Exe/AVI(GUI), JPG/AVI(Network)
• Function - Multi channel(Up to 16CH) Play, Date-Time/Title display

Network

• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Hanwha DDNS
• Transmission Bandwidth - Max. 400Mbps
• Audio Input/Output - 32 CH(network)
• Compression - G.711, G.726, AAC(16/48KHz)
• Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security - IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
• Web viewer Supported OS - Windows10, macOS 10.13
• Web viewer Supported browser - Google Chrome, Microsoft Edge, Mac Safari
• Viewer Software - WAWE SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS

Function

Camera Setup

• Register - Auto, Manual
• Item - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ

• Control - Via GUI, Webviewer, SPC-2000
• Preset - 300 Presets

Smart Phone

• Support Model - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
• Control - Live 16CH(Multi-Profile Support), Playback 4CH
• Max. Remote Users - Search(3), Live Unicast(10)

Redundancy

• Failover - N+1
• ARB - Support
• Easy configuration - P2P(QR code)

Interface

• Front Indicator - HDD, Alarm, Power, Record, Backup, Network, RAID
• Storage - Ok
• Reset - Ok
• HDD Keylock - Ok
• HDMI - 2EA ( Playback/Setup ? HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz
• Audio - Out 1EA (3.5mm Audio Jack)
• Ethernet - RJ-45 3EA (LAN/WAN, 1Gbps)
• Alarm - In 8EA, Out 4EA
• USB - 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
• Power inlet - AC 1EA

System

• Log - Log List - Max. 100,000 (System Log, Event Log each)
• System Control - Mouse,Keyboard, Web, Controller (SPC-2000)
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

• Operating Temperature - 0�C to +40�C(32? to 104?)
• Operating Humidity - 20% ~ 85% RH

Electrical

• Power Input - 100 ~ 240 VAC �10%; 50/60Hz, 2.1A
• Power Consumption - Max. 205W (with 10TB HDDs 8ea)

Mechanical

• Color/Material - Black/Metal
• Dimension - 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch)
• Weight - Approx. 9.1Kg(20.1lb, HDD not included)

Intelligent Analysis

• AI Search Object Attribute - Human, Face Vehicle, Lisence plate
• LPR - English, Number (Wisenet AI, P/X Camera)
