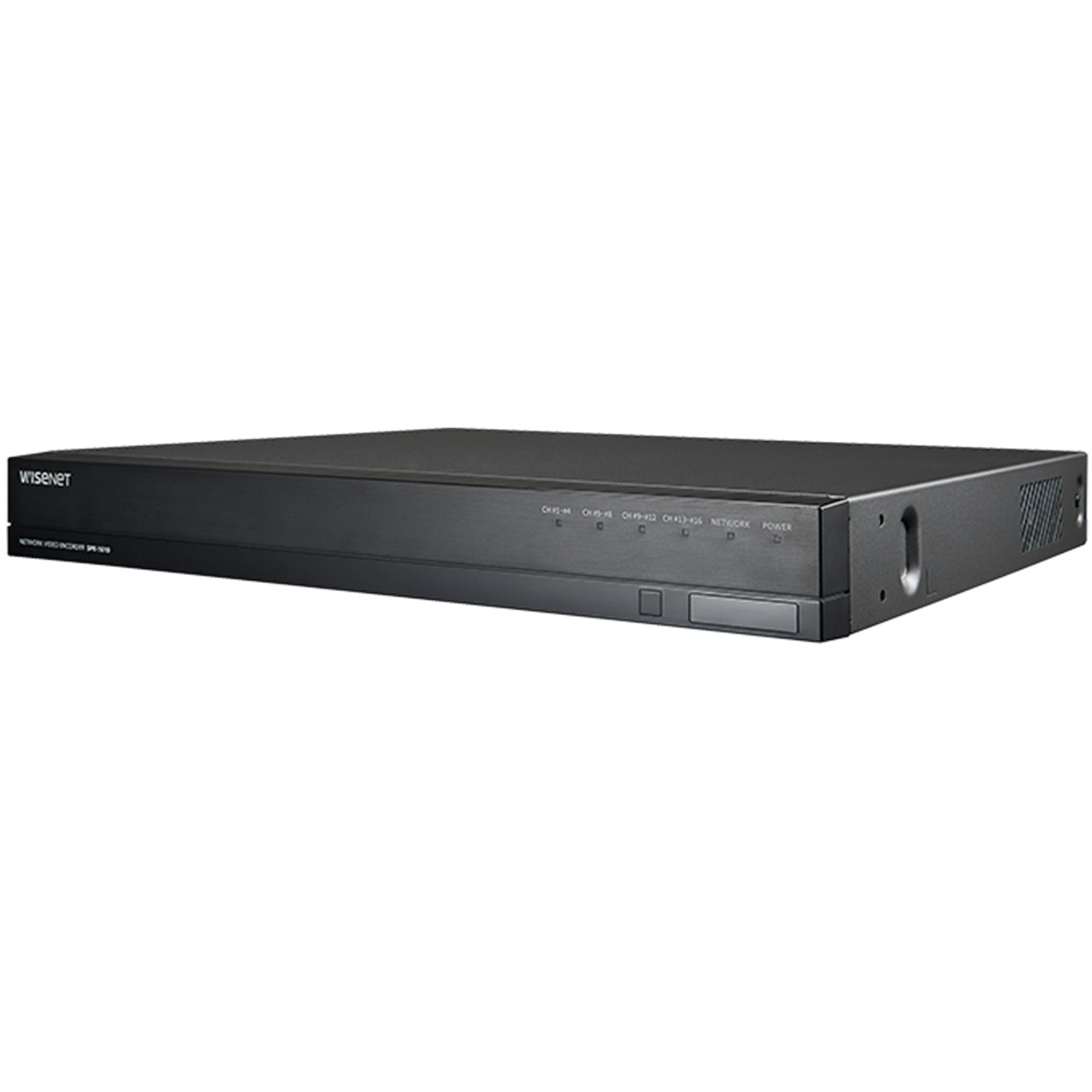

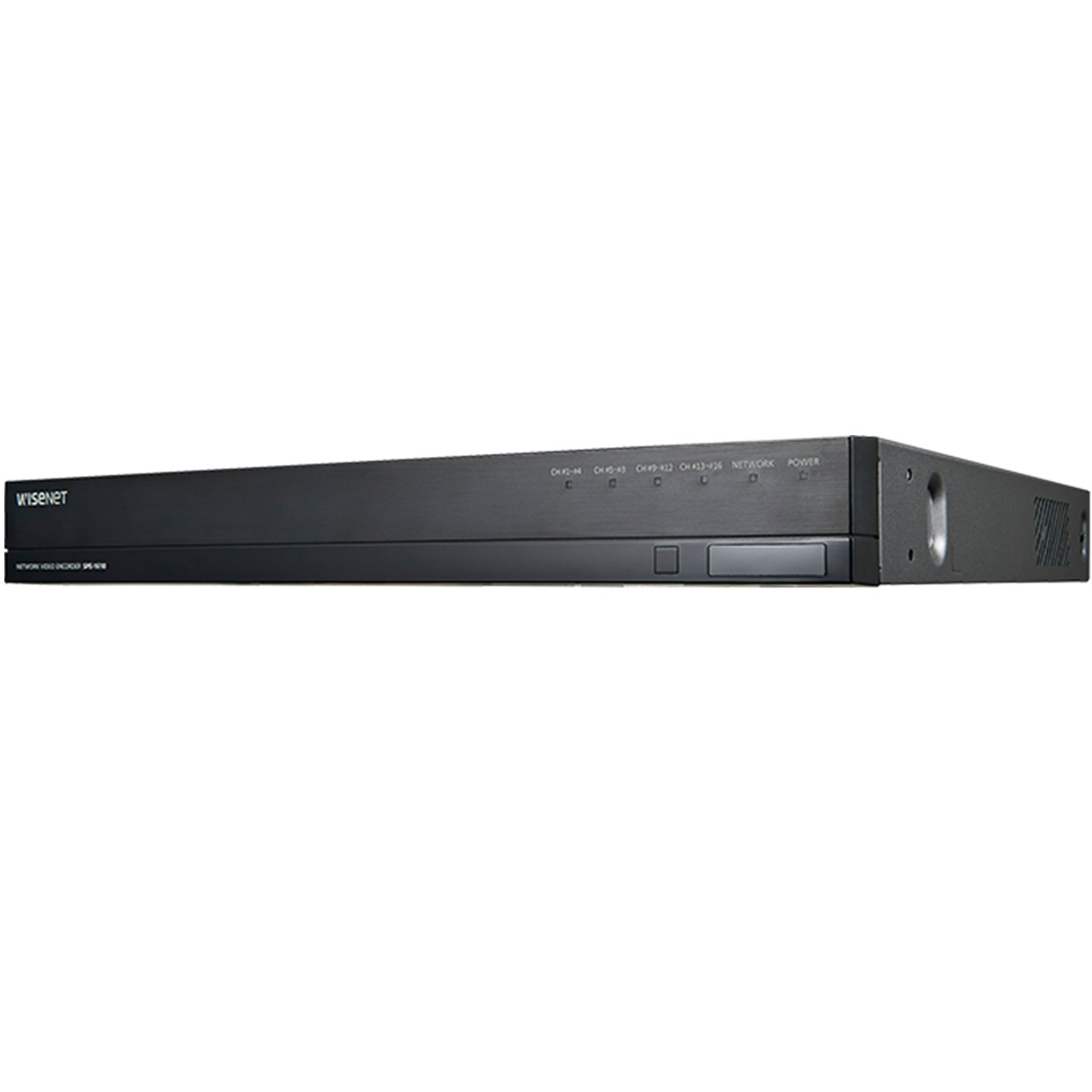

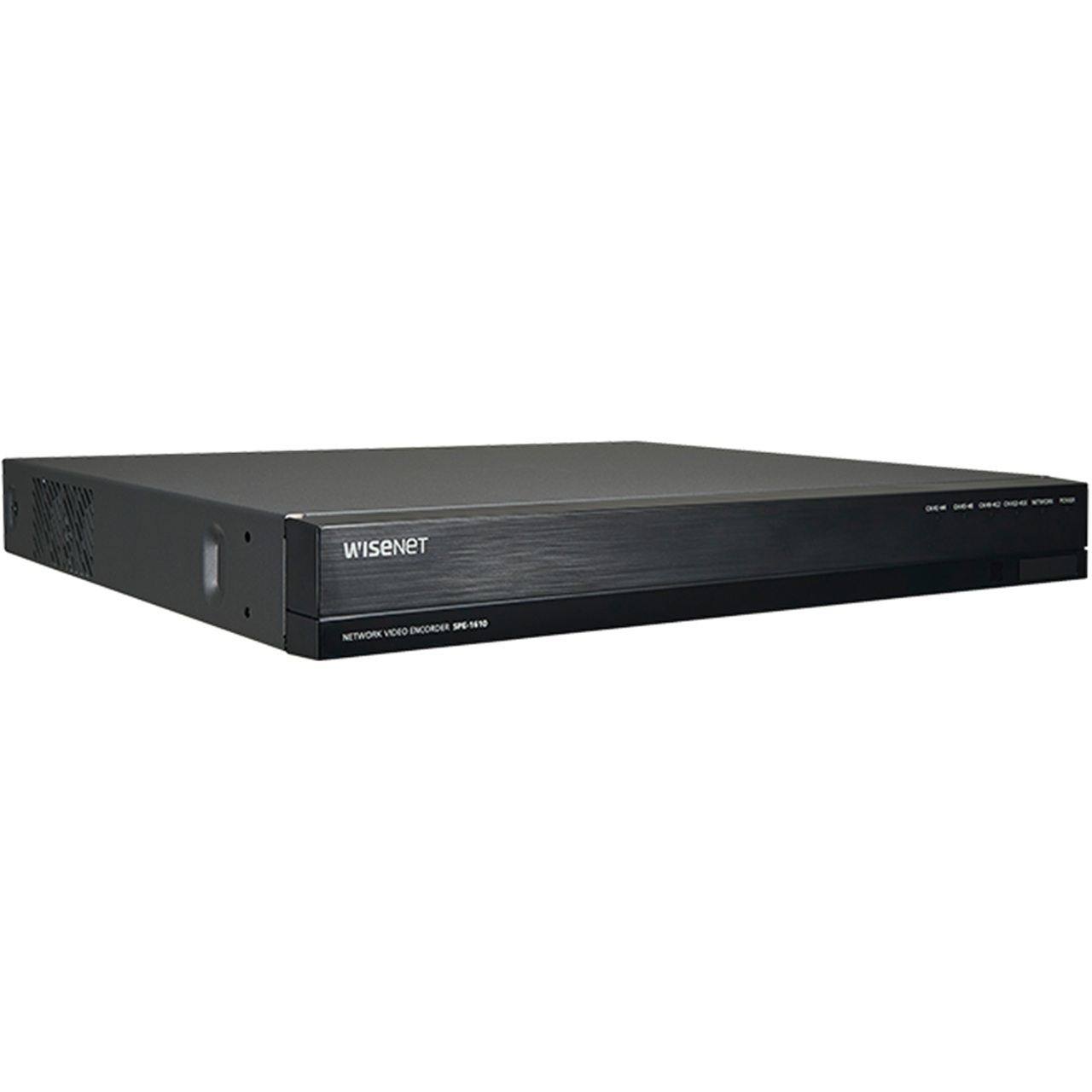

SPE-1610 Hanwha Vision 16 Channel 240FPS @ 4MP HD-TVI/HD-CVI/AHD/Analog Video Encoder

Specifications

Video

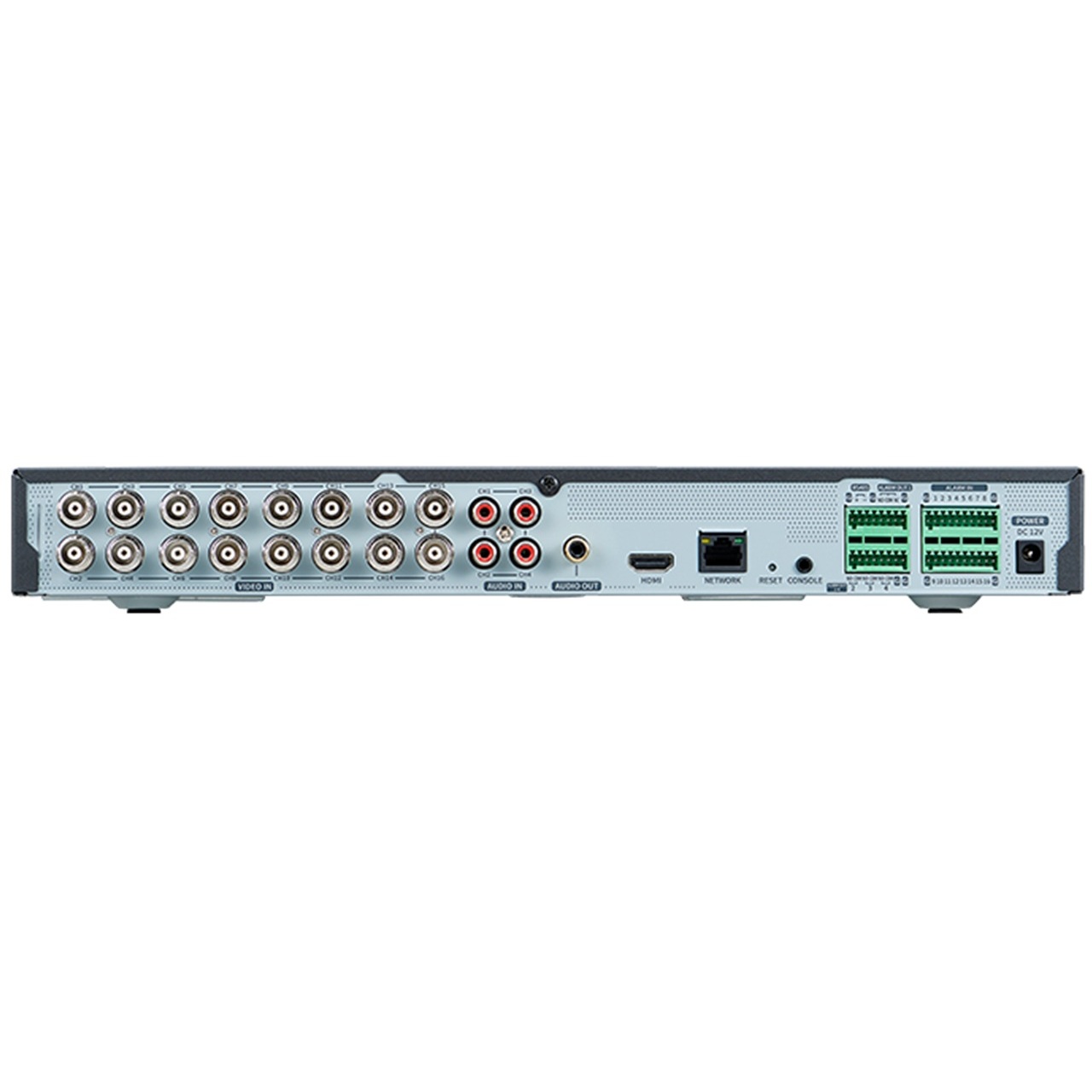

• Input Channel - 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL
• Input Signal & Resolution - CVBS, AHD(1, 2&4MP), CVI(1 & 2MP), TVI(1 & 2MP) Auto / Detection
• Video Out - 1 HDMI OUT (16 multi Image, 1920x1080)

Operational

• Motion Detection - Off / On
• Privacy Masking - Off / On (4ea rectangular zones)
• De-Interlacing - support
• Alarm I/O - 16 Input/ 4 Output
• Alarm Trigger - Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
• Alarm Events - File Upload Via FTP, E-mail
• Audio I/O - 4 Line Input / 1 Line Output
• Remote Control Interface - 1ea RS-485(Half Duplex)
• RS-485 Protocol - SAMSUNG-T, PELCO-P/D
• Coaxial Control - NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol)

Network

• Ethernet - 1 RJ-45 10/100/1000 Base-T
• Video Compression Format - H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928x288(P), 704x576(P), 704x288(P), 640x368, 352x288(P)
• Max. Framerate - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) - MJPEG : 2fps @ 1920x1080,1280x720,960H,D1
• Bitrate Control Method - H.264 : CBR or VBR MJPEG : CBR
• Streaming Capability - Multiple Streaming (Up to 3 Profiles per channel)
• Audio Compression - G.711 u-law
• IP -IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
• Security - HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - 48 users(4 Users/CH) at Unicast Mode
• Webpage Languages - English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7,8,10,Mac OS X 10.10,10.11,10.12, Non-plugin WebViewer Supported Browser : Google Chrome 54,MS Edge 38,IE11,Mozilla Firefox 49 (Windows 64bit only),Apple Safari 9 (Mac OS X only)
• Application Programming Interface - ONVIF profile S, SUNAPI (HTTP API)
• Compatabile Software & Recoder - SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series)

Environmental

• Operating Temperature/ Humidity - -10°C ~ +45°C / 20% ~ 80% RH (-10°C ~ +40°C when installed in RACK)

Electrical

• Input Voltage / Current - DC12V
• Power Consumption - MAX : 24W (12V, 2A)

Mechanical

• Color/Material - Black/Metal
• Dimension (WxHxD) - 370.0 x 47.5 x 330.9mm (14.57" x 1.87" x 13.03")
• Weight - 2.25kg(4.96lb)
