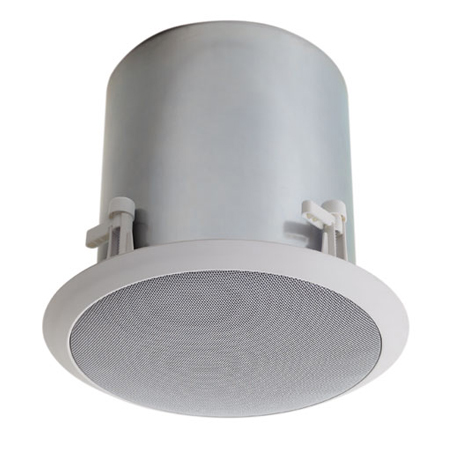

HFCS1 Bogen High-Fidelity Ceiling Speakers

The Bogen HFCS1 ceiling loudspeakers deliver superior sound and clear intelligibility in a variety of ceiling environments.
The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement.

Specifications

• Frequency Response (-10 dB)* - 65 Hz to 19 kHz
• LF Driver - 6-1/2" (165mm) Polypropylene Cone
• HF Driver - 3/4" (20mm) Polycarbonate Dome
• Sensitivity (1W/1m) - 89 dBspl (Average 100 Hz - 10 kHz)
• Impedance Ratings - Low (16 ohms) / High (70V/100V)
• Power Input (Max.) - 75W @ 16 ohms; 32W @ 70V/100V
• Power Settings (in watts)† - 70V - 32, 16, 8, 4, 2, 1 / 100V: 32, 16, 8, 4, 2
• Baffle Material - Fire-rated (94VO) ABS
• Back Can Material - Heavy-Gauge Plated Steel
• Terminations - 4 Terminal Plug-in Input Connector
• Product Weight - 9 lb.
• Speaker Dimensions - 12-5/16" dia. x 12" D
• Minimum Vertical Clearance Requirement - 11"
• Included Accessories - Input Terminal Cover (2 Halves); (4) Screws; (1) Plug-in Input Connector
• Optional Accessories - Tile Bridge Support Ring (TBCR); Cable Kit (CK10)
• Baffle Ring & Grille Color - Off-white
