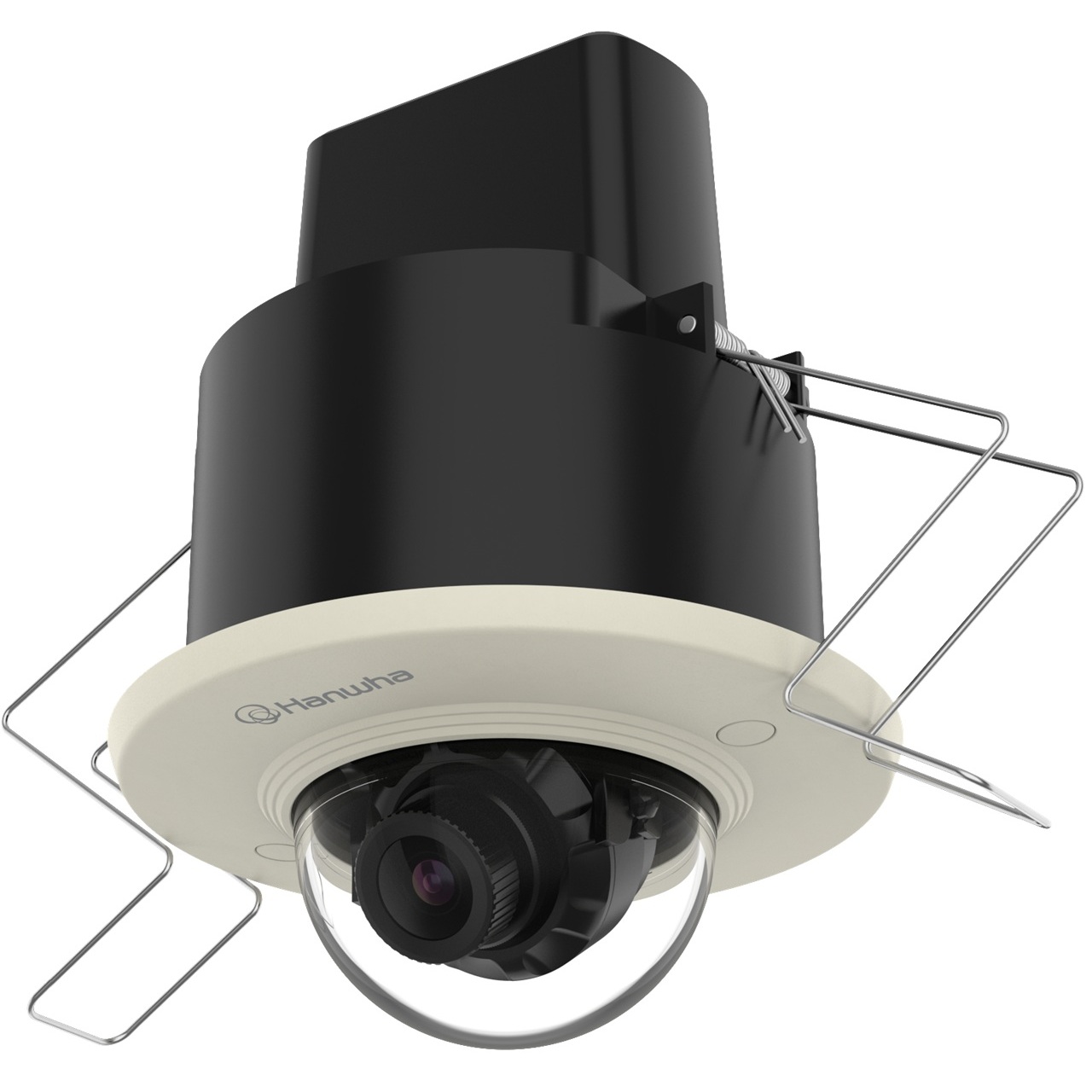

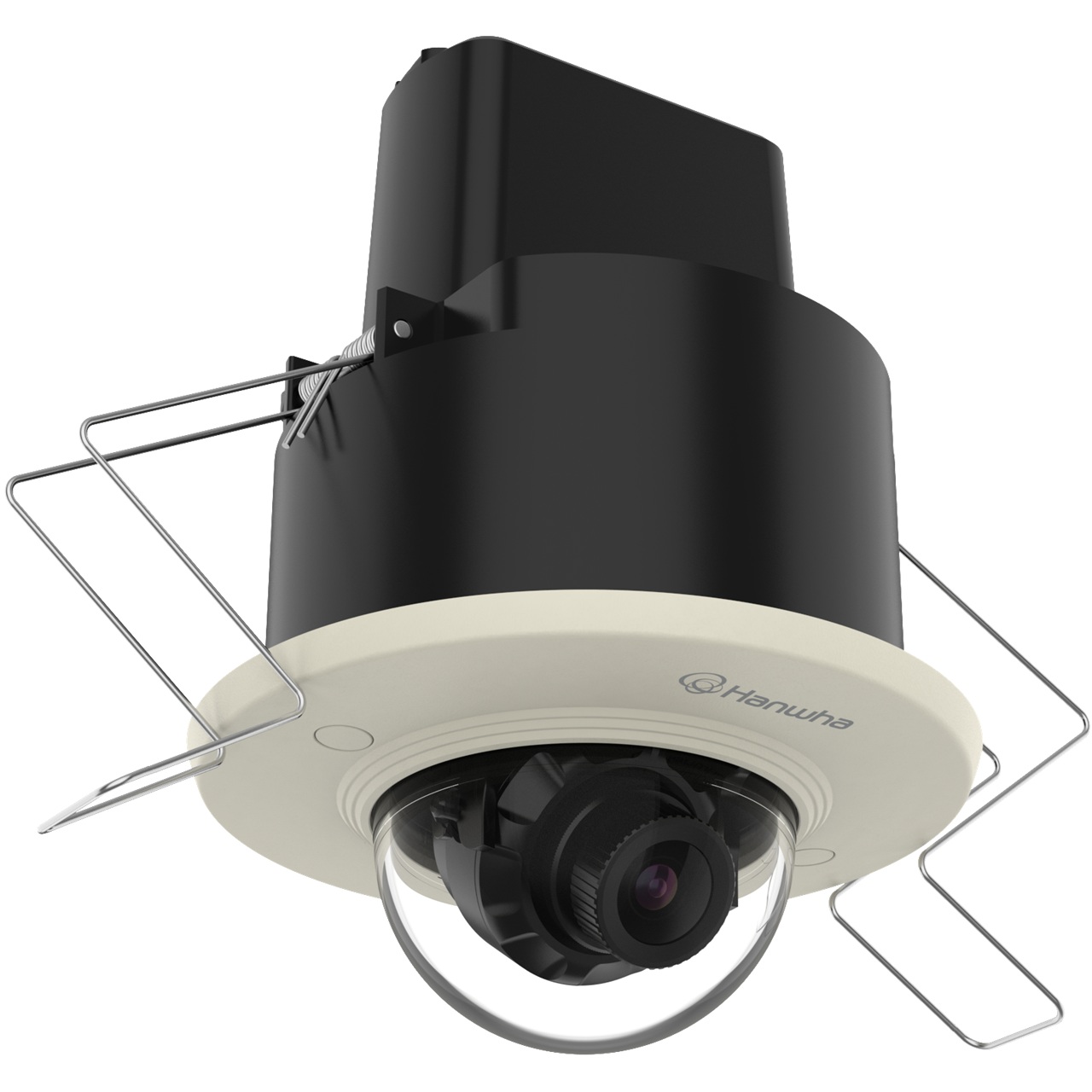

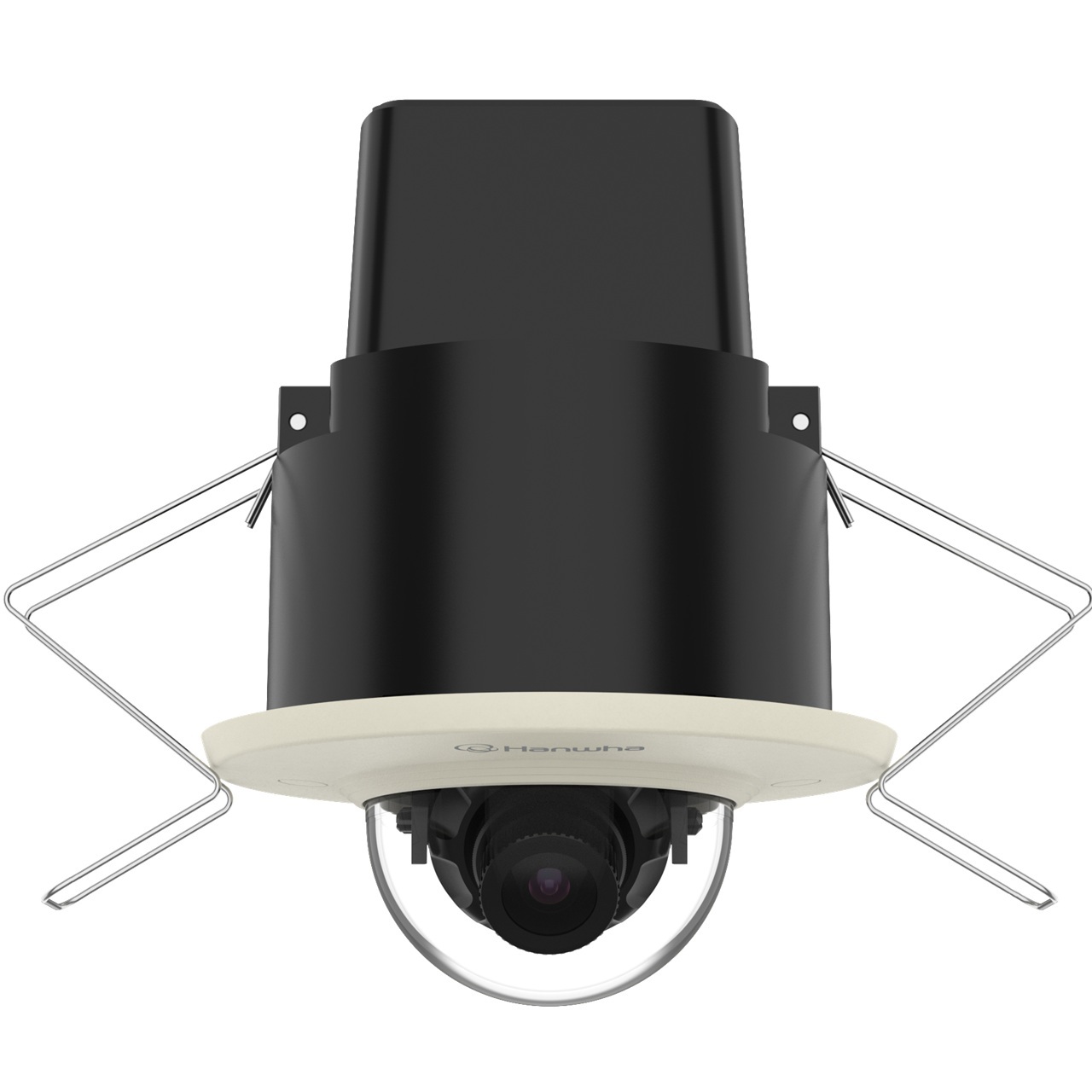

XND-8020F Hanwha Vision X Series 3.7mm 30FPS @ 5MP Day/Night WDR Dome IP Security Camera POE

Specifications

Video

• Imaging Device - 1/1.8" 6MP CMOS
• Effective Pixels - 2,616(H) x 1,976(V)
• Min. Illumination - Color: 0.16Lux(F1.6, 1/30sec) BW: 0.16Lux(F1.6, 1/30sec)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.7mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H : 97.5Ëš / V : 71.9Ëš / D : 126.2Ëš
• Min. Object Distance - 0.4m (1.31ft)
• Lens Type - Fixed

PAN / TILT / RoTATE

• Pan / Tilt / Rotate Range - 0Ëš~355Ëš / 0Ëš~47Ëš / 0Ëš~353Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ - Support(Preset, Group)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Business Intelligence - People counting, Queue management, Heatmap
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
• Audio In - Built-in mic

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265/H.264: Main/Baseline/High, MJPEG
• Resolution - 2560x1920, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 1024MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Electrical

• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE : Max 4.7W

Mechanical

• Color / Material - Ivory / Plastic
• Product Dimensions - Ø98.9x129.1mm(3.9"x5.1")
• Weight - 275g(0.6 lb)

XND-8020F Specifications PDF
