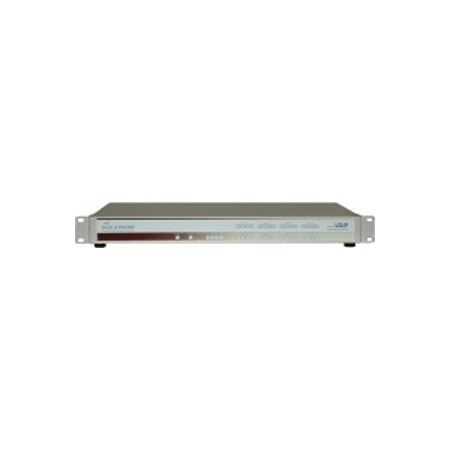

VOIP-8 Talk-A-Phone 8-Port Analog Adapter Allow you to Connect up to 8 Talk-A-Phone Emergency/ Information Phones to your LAN/WAN

Voice over IP (VoIP) Interface allows all 400-Series Emergency Phones to be used over an IP data network. VOIP units integrate seamlessly with existing VoIP phone systems, and support standard SIP, SPP and H.323 protocols. For sites without an existing VoIP phone system, two VOIP units can be used in conjunction to send emergency calls over the IP network and then to remotely "jump off" onto an existing PBX or PSTN phone network.

Specifications

• Power - 115V/240V AC, 47/60 Hz
• Power Consumption - 46W
• Temperature Range - -20°C to 60°C (-4°F to 140°F), 5% to 95% humidity
• Dimensions - 17.4(442) L x 8.0(203) W x 3.8(95) H in(mm)
• Weight - 8.4 lbs (3.9 kg)
• LAN Port - Ethernet/Ethernet II or SNAP
• LAN Interface - 10/100BaseT
• Protocols - H.323 V4, SIP, H.450.2-H.450.4, H.450.6 & H.450.8, RTP, RTCP, SMTP, Q.931, Q.Sig, T.38 & Group 3 fax relay, DTMF out-of-band (RFC Z833)
• Bandwidth Management - G.711, G.723, G.726, G.727, G.729 & proprietary voice compression, silence suppression, VAD, CNG
• Voice Quality - DiffServ, G.165, G.168, adaptive echo cancellation, forward error correction, bad frame interpolation, tunable latency, dynamic jitter buffers
• Management - Web browser, Windows, SNMP agent, flash upgradeable
• Mounting - Free-standing (stackable) or 19" EIA standard rack mount (VOIP-8 and VOIP-4 only)
• Certifications - FCC Part 15 Class A, EN55022, EN55024, EN61000-3-2, EN61000-3-3, CE, UL 60950, EN60950, cUL, ACA TS-001, FCC Part 68, CS-03, TBR21
