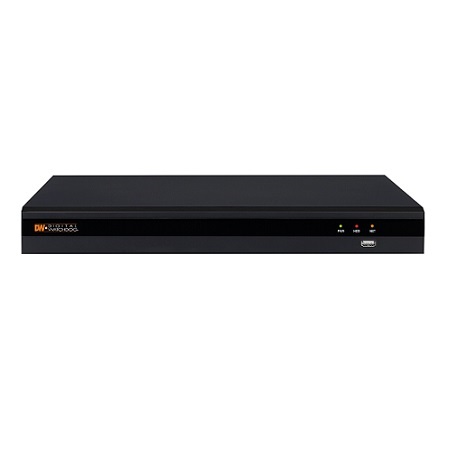

DW-VP94T4P Digital Watchdog 9 Channel NVR 100Mbps Max Throughput - 4TB

The VMAX IP Plus is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! Combine with the DW Witness app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Available with 4 PoE ports (expandable to 9 cameras), the NVRs can record and manage single-sensor IP cameras up to 4K, with 80Mbps maximum throughput.

Specifications

• Operating system - Embedded Linux
• System
  • Channel - 9 channels
  • No. of PoE - 4 Ch
  • Max supported resolution - IP camera maximum 4K (3840x2160)
  • Communication protocol - ONVIF
  • PoE type - 1Gbps, 802.3at
• Display
  • Speed - 270fps
  • Screen mode - 1, 4 and 9
• Video-out
  • Monitor - True HD and VGA
  • Resolution - 1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840x2160 (4K)
• Recording speed - Up to 270fps up to 4K resolution
• Max. throughput - 80 Mbps
• Max. HDD bay - 2 x SATA HDD
• Recording resolution - Dual stream
• Recording modes
  • Continuous, scheduled, sensor and motion detection
  • Pre- and post-alarm recording, emergency recording, quick backup
• Playback and search
  • Speed - x1, x2, x4, x8, x16, x32, x64, x99
  • Function - Timeline, calendar (date and time), event search, thumbnail search, smart motion search
• Audio input / output - 1 Ch output
• Alarm input / relay output - 4 Ch inputs/ 1 Ch outout
• PTZ control - RS-485, ONVIF
• Transaction verification - Text-in Based (USB to Serial support, TCP/IP Network)
• LAN - Gigabit ethernet (RJ45)
• Access
  • Web viewer - Live, playback and configuration up to 10 multiple connections
  • Client monitoring software - Mac (Apple S/W), C3 (CMS S/W), myDW web portal and mobile app
• Backup device - Local backup by USB, network backup by CMS
• System recovery after power failure - Auto-reboot and journaling file system
• Other function
  • Firmware upgrade - FTP, USB and CMS over Network
  • Back-up - Import and export settings, watermark and AVI file backup
  • Special features
    • Local PoE switch
    • Quick Setup under 3 minutes
    • Snapshot Notify™: Programmable interval camera image verification sent to an email
    • Event notifications via e-mail, text and C3™ CMS and push notifications to mobile devices
    • Real-time temp alert
    • Digital Zoom in live and playback
  • Mobile client - VMAX Plus app, DW Witness turns a smartphone or tablet into a surveillance camera viewed and recorded on your VMAX IP Plus
  • Health check - Real-time system, network and PoE status monitoring
• System operation - IR remote controller (optional, sold separately), USB mouse, PTZ control by keyboard (optional)
• Power requirements - 48V D/C
• Power consumption - 90W total power budget, 1.875A, 19W per PoE channel (simultaneous)
• Total PoE power budget - 76W
• Maximum power per port - 30W
• Operating temperature and humidity - 41~104 °F (5~40 °C) / 20~90% RH
• Dimension (W x D x H) - 14.96" x 12.4" x 2.02" (380 x 315 x 51.5 mm), 1U
• Certification - CE , FCC, KCC, WEEE, RoHS
• Warranty - 5 year limited

DW-VP94T4P Specifications PDF
