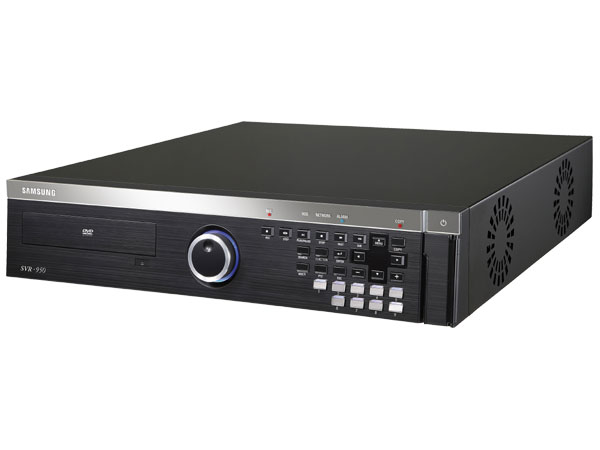

[DISCONTINUED] SVR-950DH160 Hanwha Techwin 9 Channel Digital Video Recorder 160GB HDD

The SVR-950 is a 9 channel stand-alone DVR showcasing state-of-the-art digital image processing technology. The MPEG-4 compression technology was used to build the SVR-950 to give it a capability to record video at 120fps (NTSC). The SVR-950's high performance image processing unit stabilizes network transmissions and improves network speed to an incomparable level. You can configure up to 4 internal HDD for 720 x 480, crystal clear, high resolution image data storage, and the standard DVD+RW, together with a USB memory stick, provide convenient ways to back-up large data. The SVR-950 is controlled by a mouse, something you are already familiar with. Together with the user friendly GUI, controlling the SVR-950 couldn't be easier. It also comes with standard multi-protocol for easy networking with other peripherals. All the premium functions are included in the SVR-950 to give you the highest level of security, and its luxurious design will upgrade the elegance of your video surveillance system.

Specifications:

• Model Number - SVR-950DH160
• Power Source - 100-240V AC, 50/60Hz
• Power Consumption - Max. 75W (1 HDD)
• Video Input - 9 Channels
• Video Output Monitor A - 2 BNC, RCA, VGA
• Video Output Monitor B - 1 BNC (Single / Multi)
• Compression - MPEG-4
• Display Speed - 270fps / 225fps (PAL)
• Display Resolution - 720 x 480 / 720 x 576 (PAL)
• Display Multi Screen - 1 / 4 / 9
• Recording Speed / Resolution - 30fps / 704 x 480, 25fps / 704 x 576 (PAL), 60fps / 704 x 240, 50fps / 704 x 288 (PAL), 120fps / 352 x 240, 100fps / 352 x 288 (PAL)
• Recording Mode - Manual + Event, Schedule + Event
• HDD - 160GB 1HDD (Max . 4HDDs)
• Back up - DVD+RW, 3 USB (2 Front) / USB USB flash memory drive
• Serial Interface - RS-232C, RS-485/422 (RJ-45)
• Sensor Input / Relay Output - 9 / 4
• Audio Input/Output - 4 / 2 (1 Front)
• Audio Interface - RCA jack
• Network Protocol - TCP/IP, DHCP, SMTP
• Network Software - Network viewer
• Network Transport Speed - Max. 120fps / 100fps (PAL)
• Control - Mouse, Remote control (Controllable up to 16 DVRs), System controller (SCC-3100)
• OSD (On Screen Display) - GUI, Multi-language, Hot Function, Screen SMS : ATM/POS support, Password : 2 level (Admin, User), Image quality adjustment : 4 level (Super, High, Middle, Low) support
• Operation Temperature Range - 5°C ~ 40°C
• Storage Temperature Range - -10°C ~ 60°C
• Dimensions - 430(W) x 88(H) x 465(D)mm
• Weight - 8.9kg (1 HDD)
