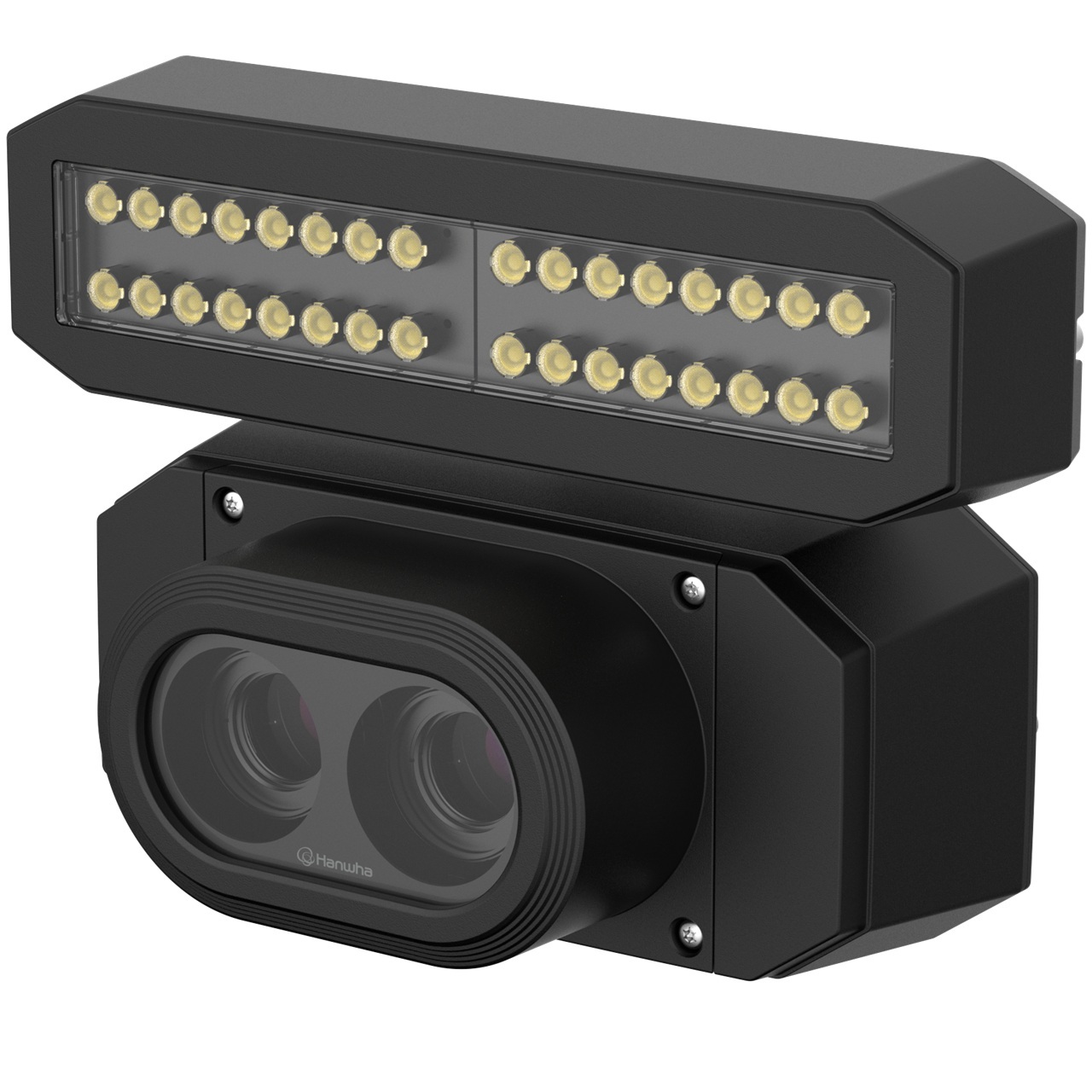

TNS-9050IBC Hanwha Techwin 25mm 20FPS @ 4K Barcode Reader Box IP Security Camera 24VDC

SKU: TNS-9050IBC
  • Dual Global Sensor for Barcode Reading and Video Monitoring, MONO 4K 1" + COLOR 4K 1"
  • 25mm Fixed (Wide FoV)
  • AI barcode location search, Track barcodes on high speed conveyor belt moving at 2m/s(6.5ft/s)
  • 1D Code is available (Code128 / Codabar / Interleaved 2 of 5)
  • Reinforced durability
  • IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
  • Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
  • EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C
More details...
MPN: TNS-9050IBC
EAN: 8801089234834
MSRP Price: $9,500.00
Online Price: $9,500.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.



Product Details

Specifications

Video

  • Imaging Device - Global Shutter Mono 1" CMOS, Global Shutter Color 1" CMOS
  • Resolution - Mono: Max 4096x2160, Color: Max 4096x2160
  • Max. Framerate - Mono: Max 20fps, Color: Max 20fps
  • Pixel Size - 3.45μm(H)x3.45μm(V)

Lens

  • Focal Length (Zoom Ratio) - 25mm
  • Max. Aperture Ratio - Mono: F2.8 ~ F16.0, Color: F2.8 ~ F16.0
  • Angular Field of View - Mono: H30.4° / V16.6° / D34.2°, Color: H30.4° / V16.6° / D34.2°
  • Min. Object Distance - 0.15m (0.492126ft)
  • Focus Control - Manual
  • Lens Type - Manual
  • Mount Type - C Mount

Operational

  • Camera Title - Displayed up to 85 characters
  • Digital Noise Reduction - SSNRⅤ
  • Gain Control - Manual, 0~48dB
  • White Balance - AWC / Manual
  • Electronic Shutter Speed - Manual, 1/10,000~1/30s (100us ~ 33.33ms)
  • Video Rotation - Flip, Mirror
  • Analytics - Barcode recognition, Barcode type: 1D Code, Code128 / Codabar / ITF(Interleaved 2 of 5)
  • Light Type - White LED 32ea

Network

  • Ethernet - M12 8pin connector (10/100/1000BASE-T)
  • Video Compression - H.265/H.264: Main/High, MJPEG
  • Bitrate Control - H.264/H.265: CBR or VBR, MJPEG: VBR
  • Streaming
    • Unicast(6 users) / Multicast
    • Mono - (1) 4096x2160 @ 15/18/20fps all codec
    • Color: - (1) 4096x2160 @ 15/18/20fps all codec, (2) 640x360 @ 15/18/20fps all codec
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast)
  • Security
    • OS / Firmware Protect - Secure boot, Verify firmware forgery, Firmware encryption
    • User authentication - Digest Authentication, Privent brut-force attack
    • Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
    • Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
    • Access Control - IP address filtering
    • Data Protect - Authentication information encryption, ZIP compression encryption
    • Audit - User Access/System/Event log
    • Device ID - Device Certificate(Hanwha Techwin Root CA, pre-installed)
    • Secure Storage - HTPM(Hanwha Trusted Platform Module) Secure by default
  • Application Programming Interface - SUNAPI(HTTP API), Wisenet Open Platform

Security

  • OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
  • User authentication - Digest Authentication, Privent brute-force attack
  • Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
  • Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
  • Access Control - IP address filtering
  • Data Protect - Authentication information encryption, ZIP compression encryption
  • Audit - User Access/System/Event log
  • Device ID - Device Certificate(Hanwha Techwin Root CA, pre-installed)
  • Secure Storage - HTPM (Hanwha Trusted Platform Module)
  • Security Certificate - Secure by default

General

  • Webpage Language - English, Korean
  • Web Viewer - Support
  • Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH, * Start up should be done at above -30°C, NEMA TS-2: 74°C - / 0~95% RH
  • Storage Temperature / Humidity - -40°C ~ +60°C(-40°F ~ +140°F) / Less than 95% RH
  • Certification - IP67, IP66, IK10(Exclude Window), NAME 4X
  • Input Voltage - 24VDC
  • Power Consumption - Max 28.6W, Typical 13.7W, * Max: LED On, Typical: LED Off

Mechanical

  • Color / Material - Black / Aluminum
  • RAL Code - RAL9005
  • Product Dimensions / Weight
    • Camera - 218x104.1x127.1mm, 1897g
    • LED - 255.8x73.8x49.8mm, 996g
    • Total - 255.8x181x127.1mm, 3438g(with install bracket)

Certifications & Standards

  • EMC
    • FCC 47 CFR 15 Subpart B Class A
    • ICES-3(A)/NMB-3(A)
    • CE/UKCA
    • EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
    • KS C 9832 Class A, KS C 9835
  • Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC/EN 62471
  • Environment
    • EN 60068-2-6 (variation resistance)
    • EN 60068-2-27 (shock resistance)
    • NEMA TS-2 2.2.9 (shock resistance)
    • IEC/EN 60529 IP67, IP66
    • IEC/EN 62262 IK10

TNS-9050IBC Specifications PDF
