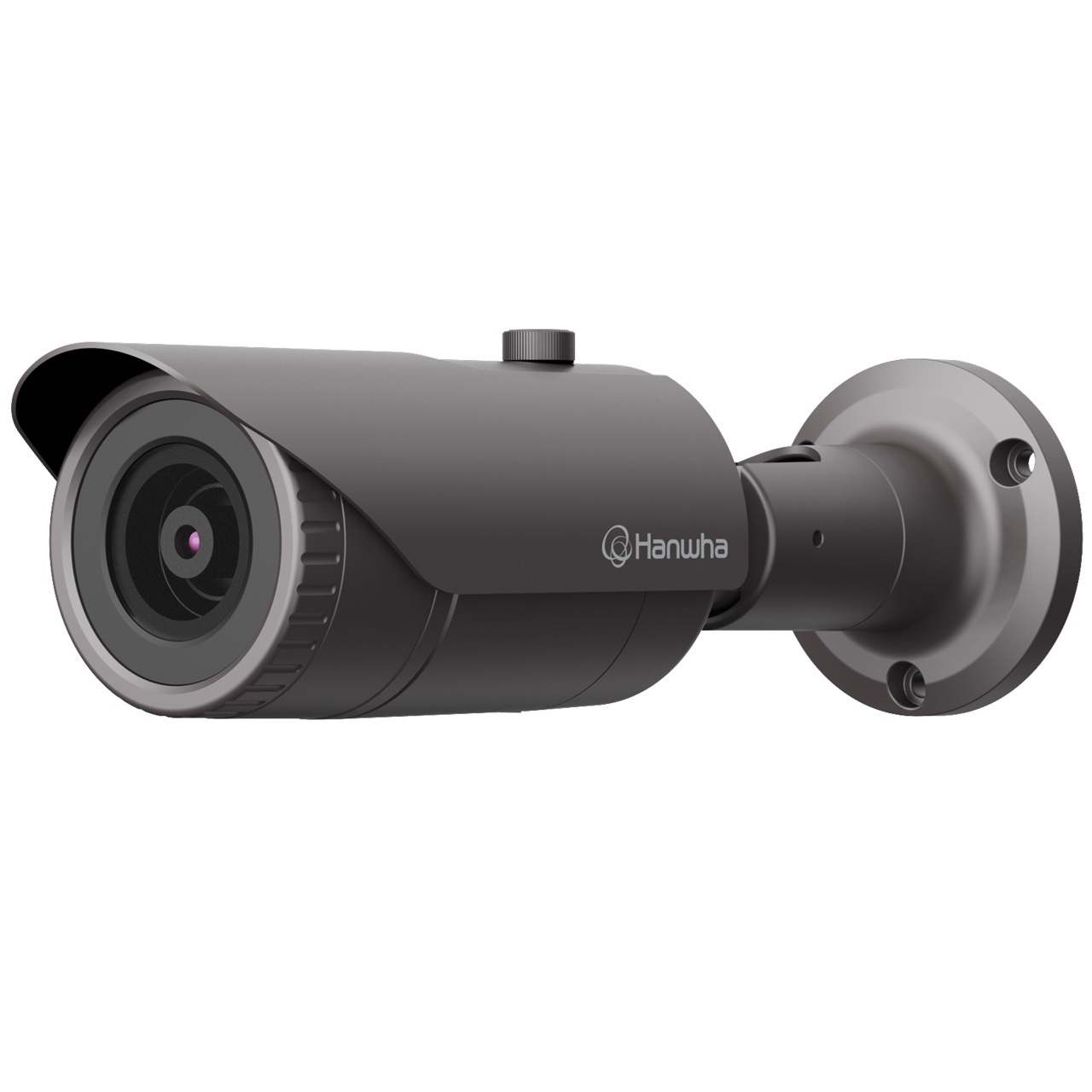

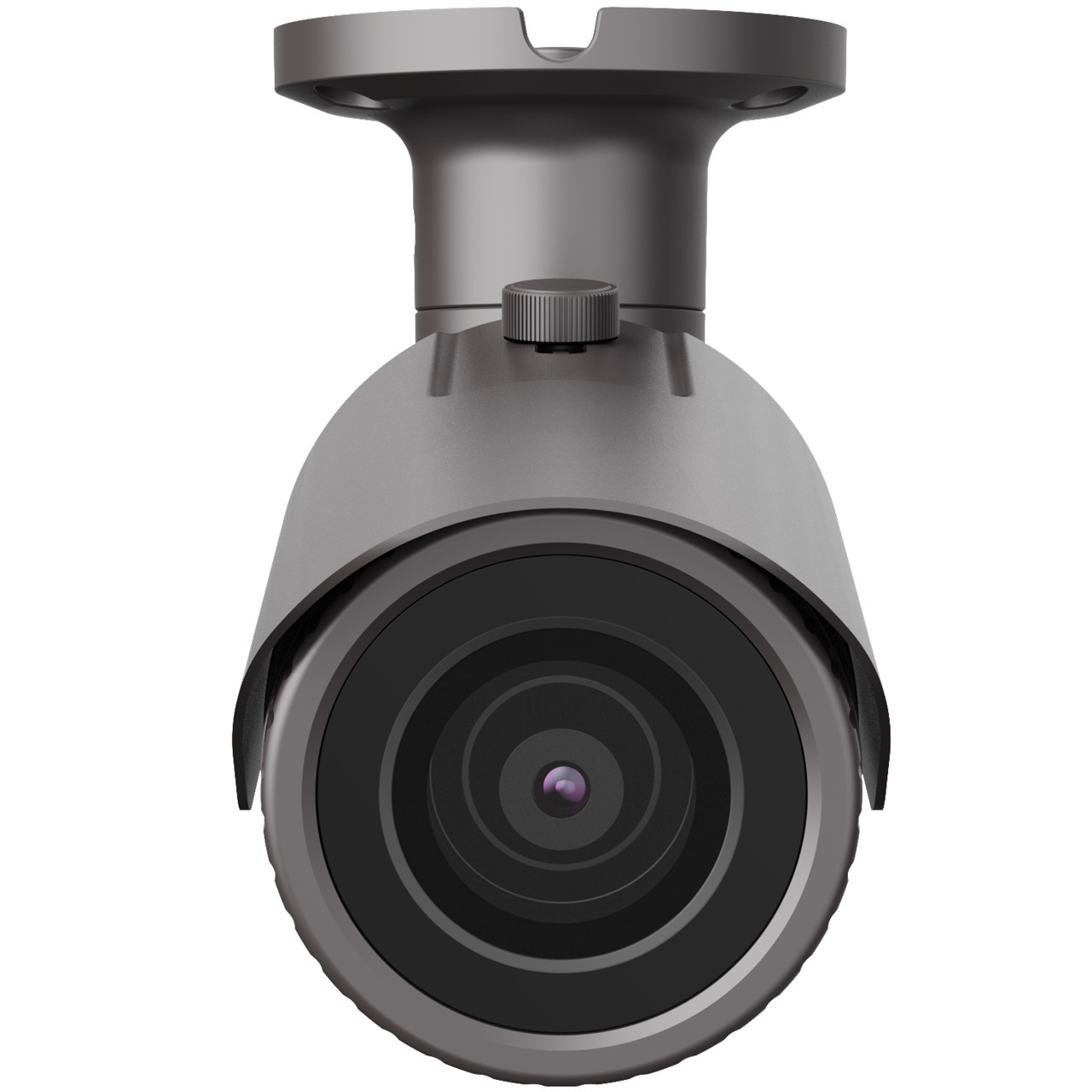

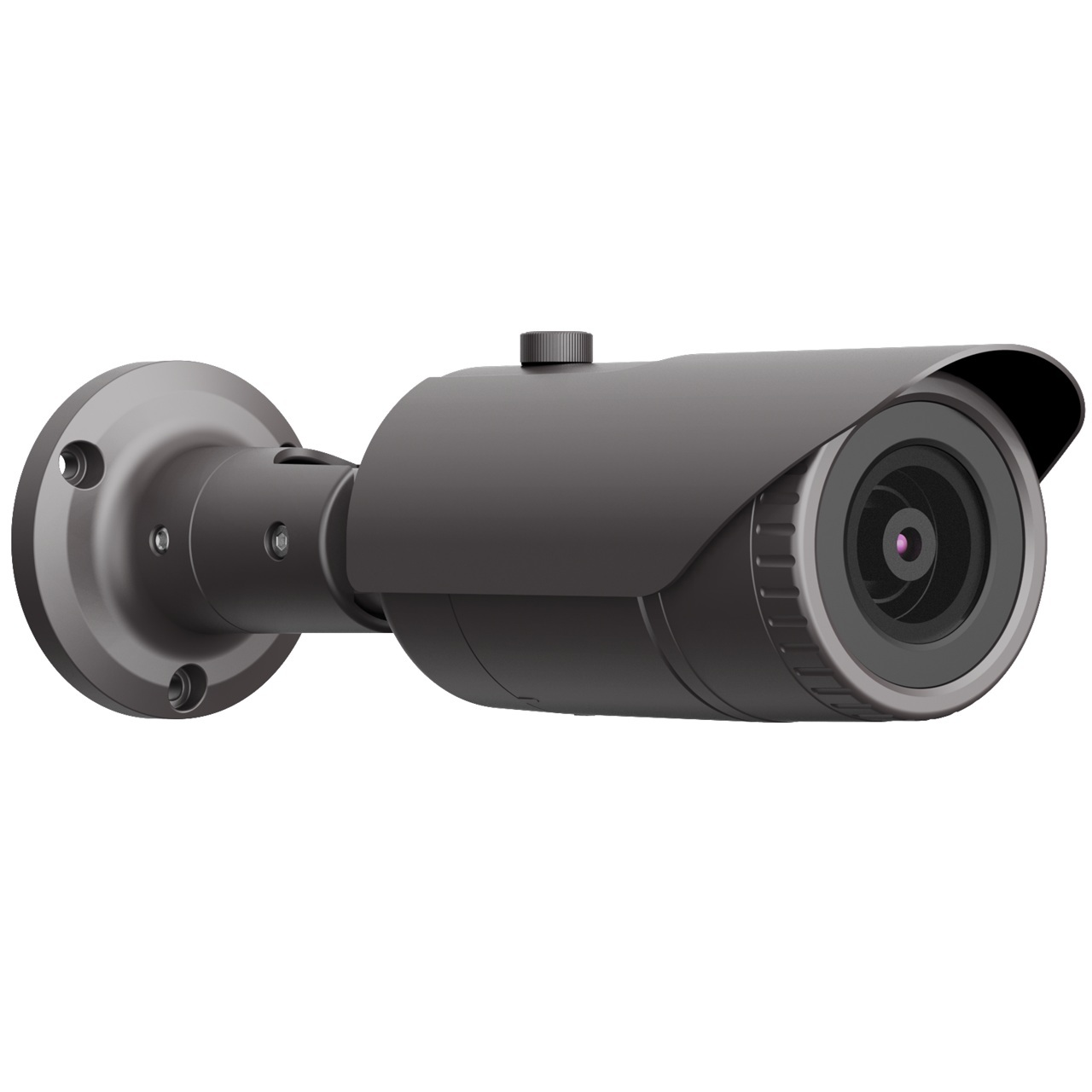

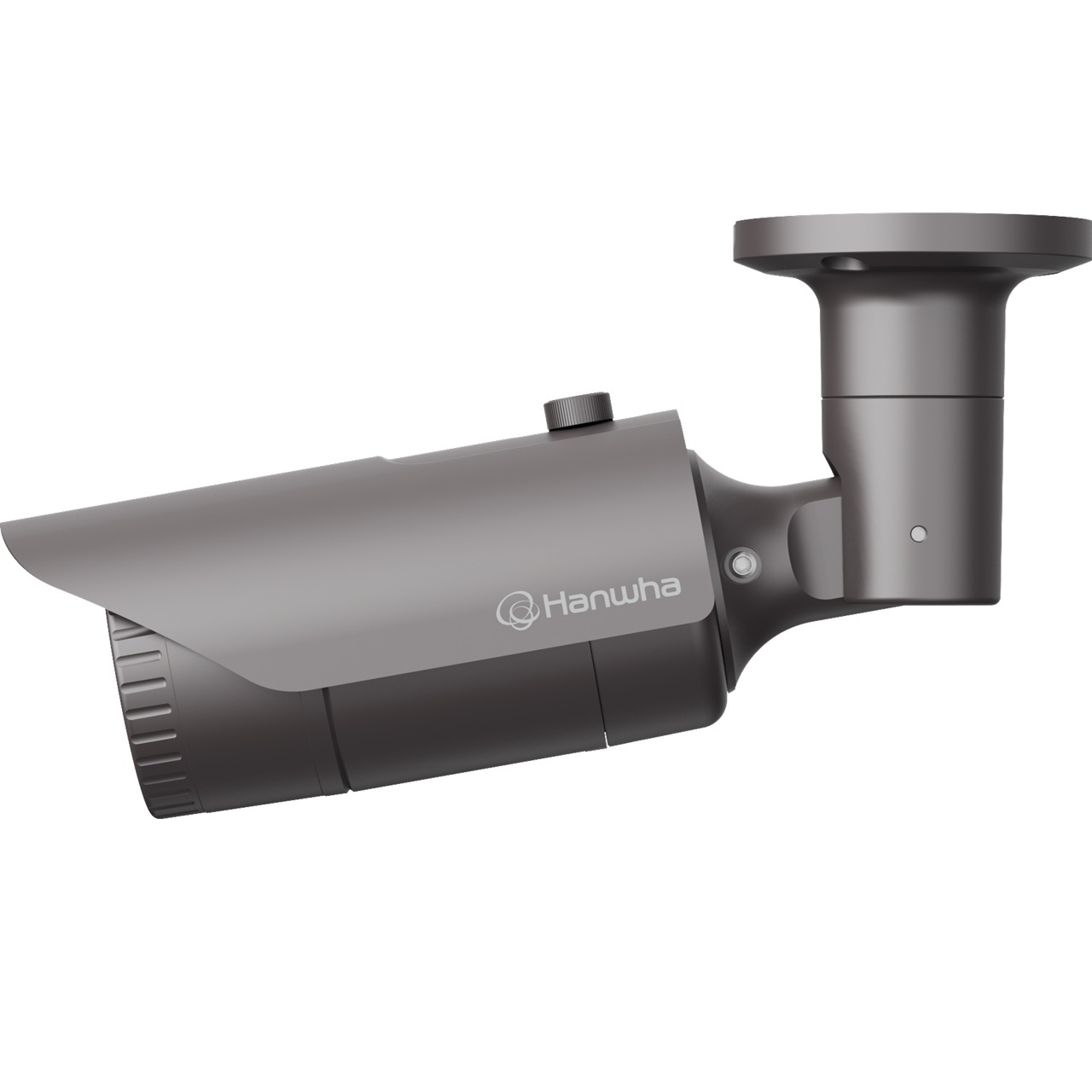

QNO-6012R Hanwha Techwin 2.8mm 30FPS @ 1080p Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/POE

The QNO-6012R from Hanwha's Q Series affordable network camera line is a 2 Megapixel bullet network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

Specifications

Video

• Imaging Device - 1/2.8" 2 MP CMOS
• Effective Pixels - 1920(H) x 1080(V)
• Minimum Illumination - Color : 0.15Lux (F2.0, 1/30sec), BW : 0Lux (IR LED on)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Maximum Aperture Ratio - F2.0
• Angular Field of View - H : 113.74, V : 61.5°, D : 134.45°
• Focus Control - Fixed

Operational

• IR Viewable Length - 20m (65.62ft)
• Camera Title - Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Support
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view (90°/270°)
• Analytics - Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering
• Alarm I / O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover
• Audio In - Selectable (mic in/line in), Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264 : Main / High, MJPEG
• Resolution - 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360
• Maximum Framerate - H.265/H.264 : Maximum 30fps / MJPEG : Maximum 15fps
• Smart Codec - Manual (5ea area), WiseStream II
• Video Quality Adjustment - H.264/H.265 : Target bitrate level control, MJPEG : Quality Level control
• Bitrate Control - H.264/H.265 : CBR or VBR, MJPEG : VBR
• Streaming - Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles)
• Audio Compression - G.711 u-law /G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1 slot maximum 128GB
• Application Programming Interface - ONVIF Profile S/G/, SUNAPI (HTTP API), Wisenet open platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14, Recommended Browser : Google Chrome, Supported Browser : MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only)
• Memory - 512MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH, * Start up should be done at above -20°C (-22°F)
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10

Electrical

• Input Voltage - PoE (IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE : Maximum 7W, typical 5.2W, 12VDC : Maximum 6.1W, typical 4.5W

Mechanical

• Color / Material - Dark grey / Aluminum
• Product dimensions / weight - Ø70.0 x 246.0mm (Ø2.76 x 9.69"), 700g (1.543 Ib)
