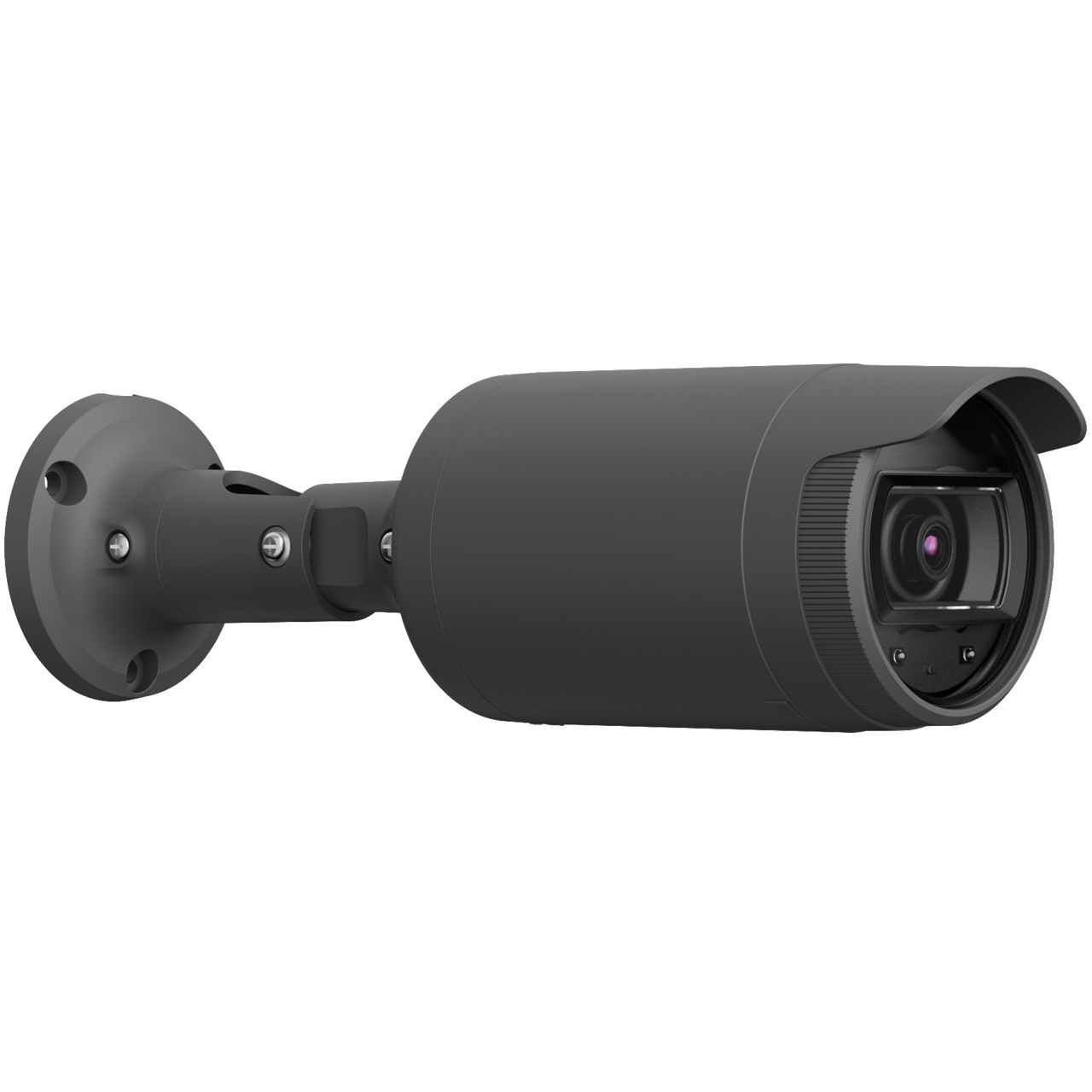

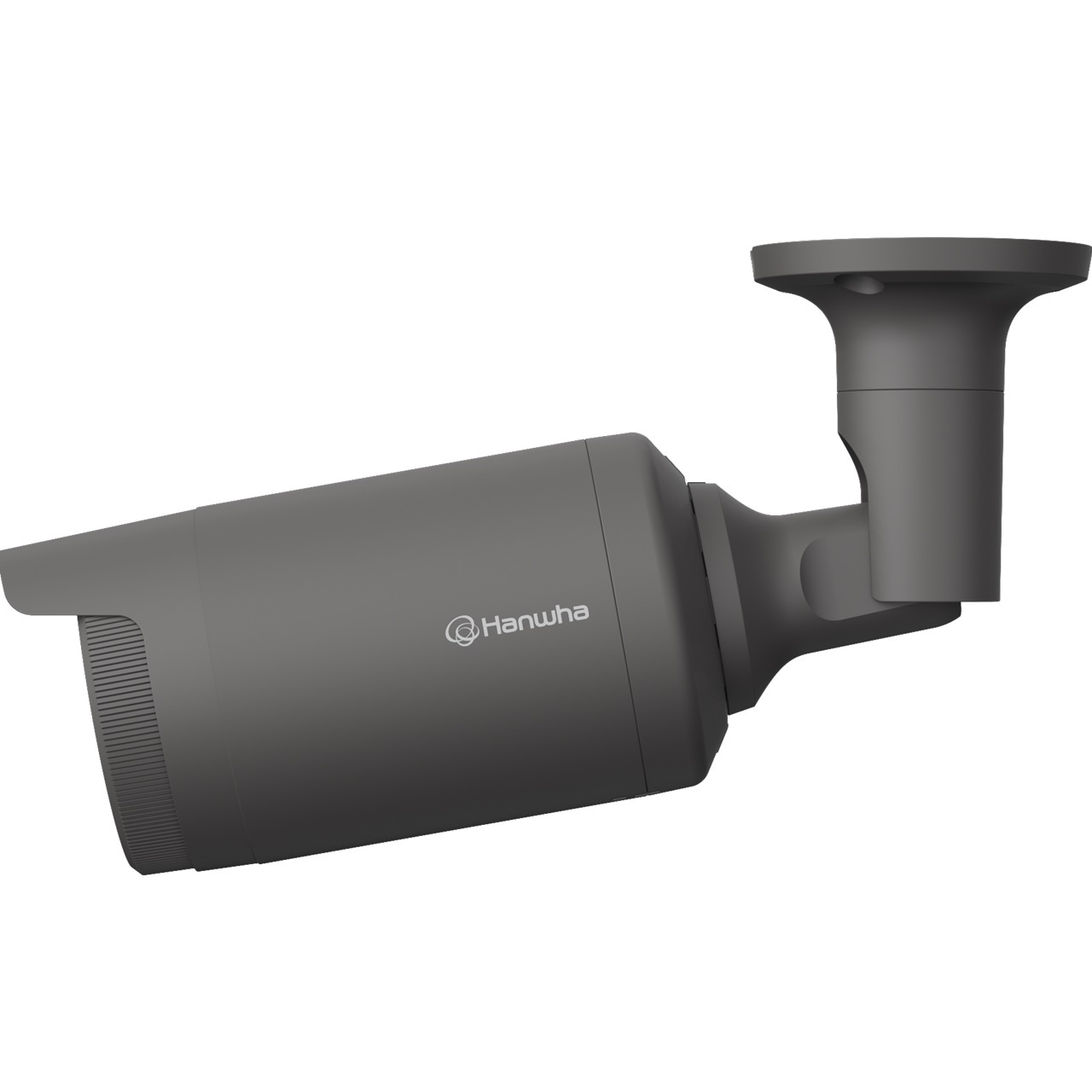

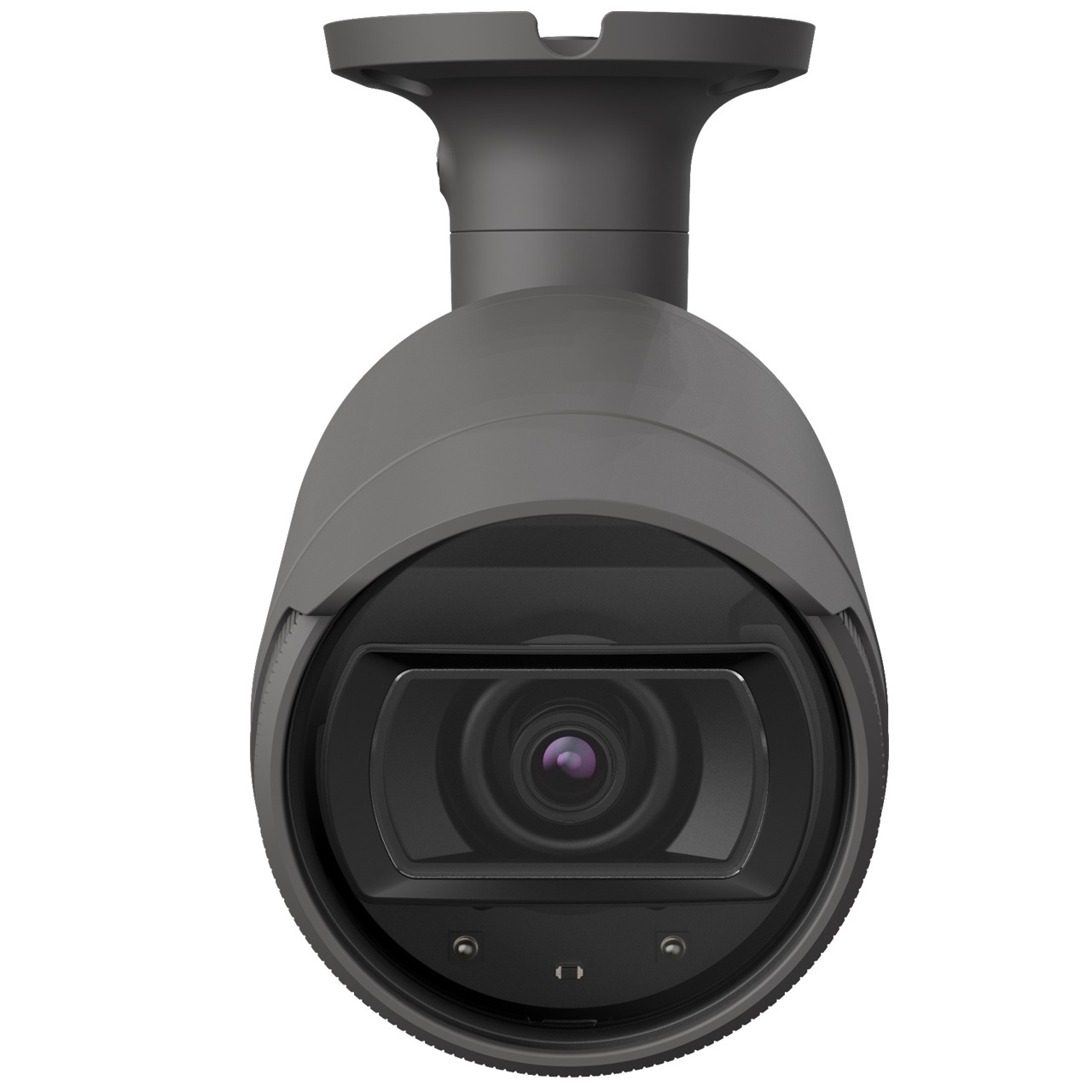

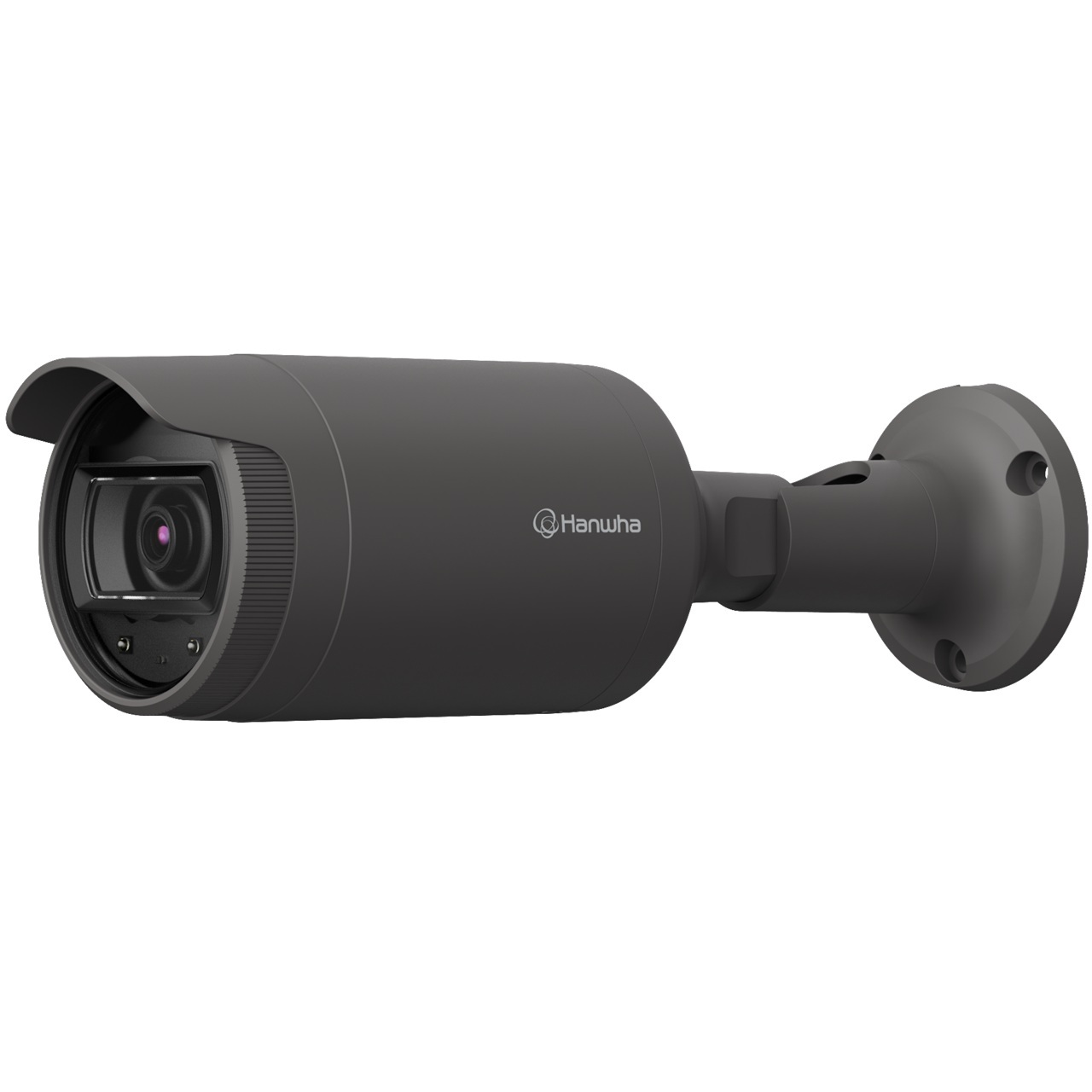

LNO-6012R Hanwha Techwin 2.8mm 30FPS @ 1080p Outdoor IR Day/Night WDR Dome IP Security Camera

The Wisenet L series outdoor bullet camera provides excellent quality and outstanding value, featuring 2MP @ 30fps,3mm fixed focal lens (102°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, IP66, PoE.

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Effective Pixels - 1945(H)x1097(V)
• Minimum Illumination - Color: 0.1Lux(F2.0, 1/30sec), BW : 0Lux (IR LED on)

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 113.7° / V: 61.5° / D: 134.4°
• Minimum Object Distance - 5m (1.64ft)
• Focus Control - Fixed

Operational

• IR Viewable Length - 30m(98.43ft)
• Camera Title - Displayed up to 15 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, rectangular zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker
• Video Rotation - Flip, Mirror, Hallway view(90 ̊/270 ̊)
• Analytics - Motion detection, Tampering
• Alarm Triggers - Analytics
• Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC recording at event triggers

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.264: Main/Baseline/High, MJPEG
• Resolution -1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480,640x360
• Maximum Framerate -H.264: Maximum 30fps, MJPEG : Maximum 2fps at 1920x1080, Maximum, 3fps at 1280x960, 1280x720, Maximum 10fps at other resolution
• Smart Codec -WiseStreamII
• Bitrate Control -H.264: CBR or VBR, MJPEG: VBR
• Streaming -Unicast(6 users) / Multicast, Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS,SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS,DDNS, QoS, UPnP, Bonjour
• Security - HTTPS(SSL) Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access log802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC 1slot 32GB
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI(HTTP API)
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14, Recommended Browser: Google Chrome, Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 512MB RAM, 256MB Flash

Environmental

• Operating Temperature/Humidity - -22°F ~ +131°F (-30°C ~ +55°C) / Less than 90% RH. * Start up should be done at above -20°C(-4°F)
• Storage Temperature / Humidity - -22°F ~ +131°F (-30°C ~ +55°C) / Less than 90% RH
• Certification - IP66

Electrical

• Input Voltage - PoE(IEEE802.3af, Class2) Maximum
• Power Consumption - 6.4W, Typical 5.0W

Mechanical

• Color / Material - Dark grey / Plastic
• Product dimensions / weight - Ø3.07 x 10.31" (Ø78.0 x 262.0mm), 0.86lb (390g)

DORI

• Detect - 25.1m(82.28ft)
• Observe - 10.0m(32.91ft)
• Recognize - 5.0m(16.46ft)
• Identify - 2.5m(8.23ft)

LNO-6012R Specifications PDF
