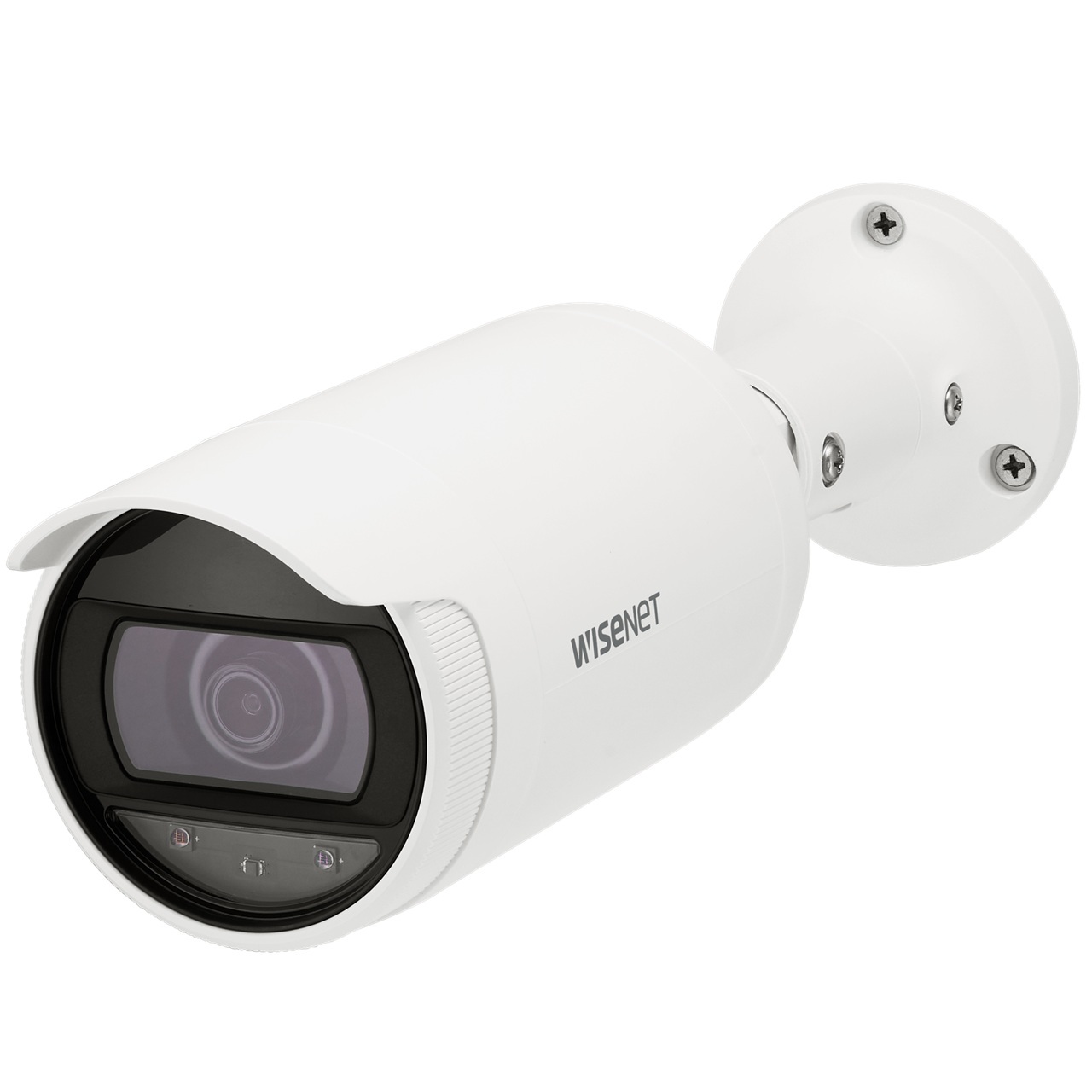

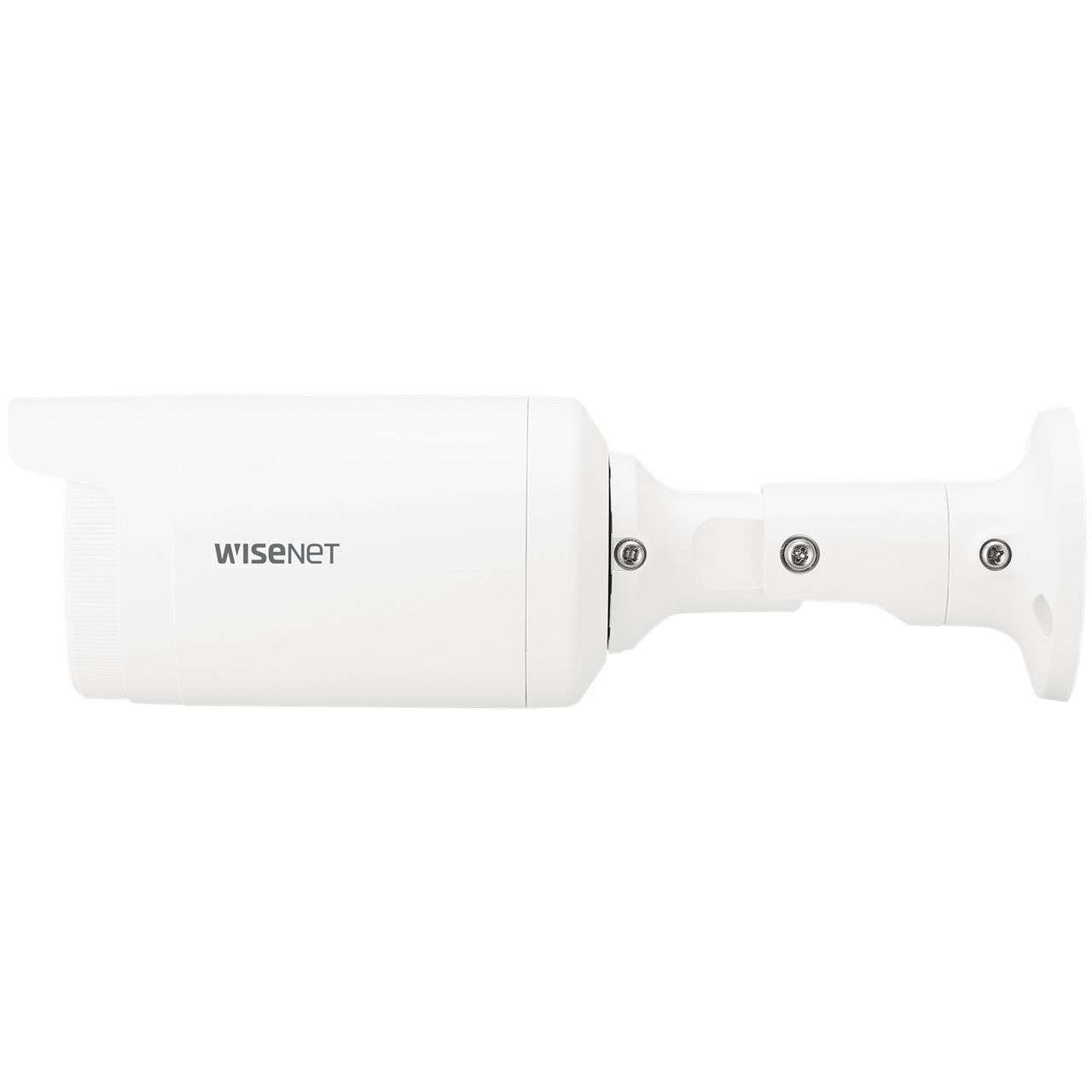

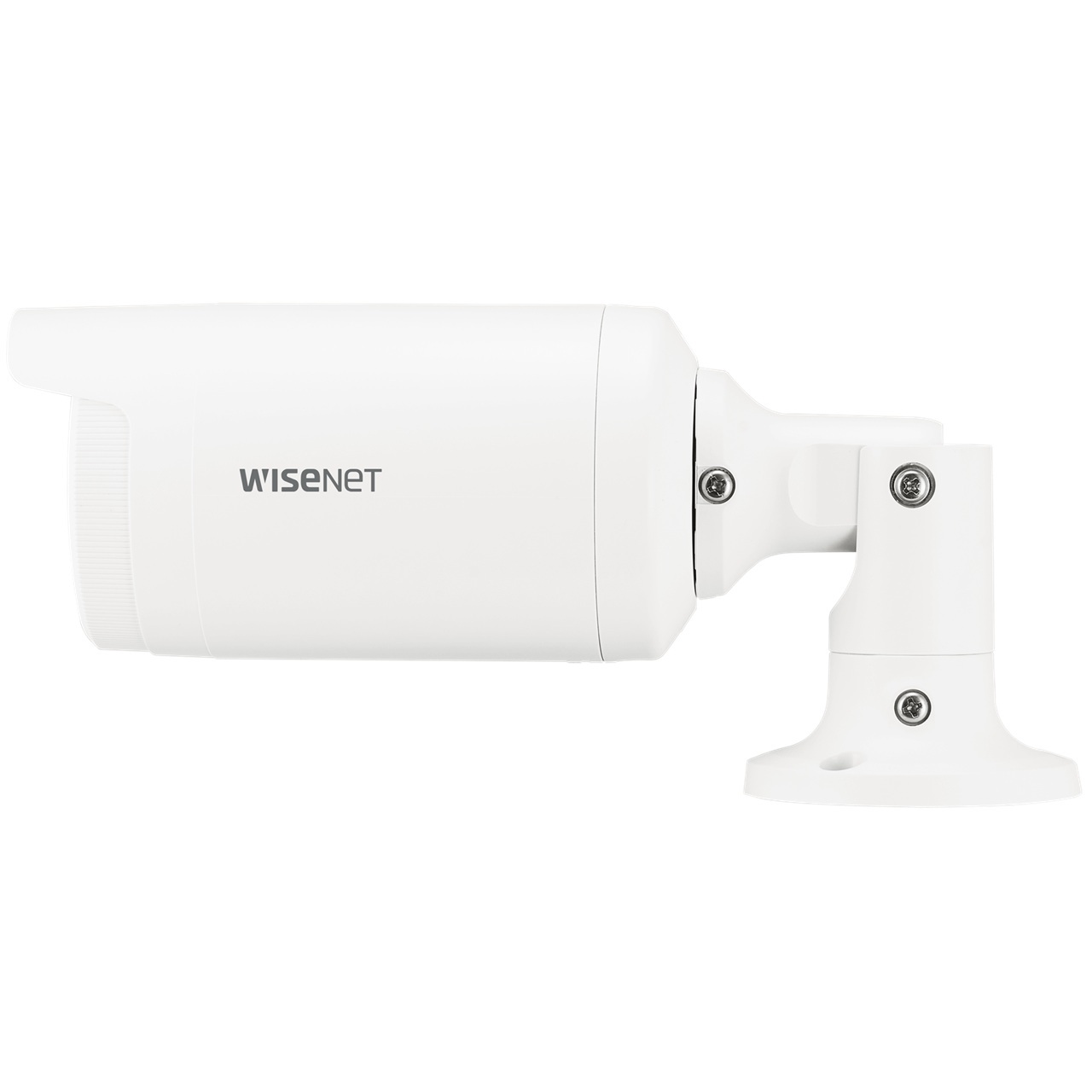

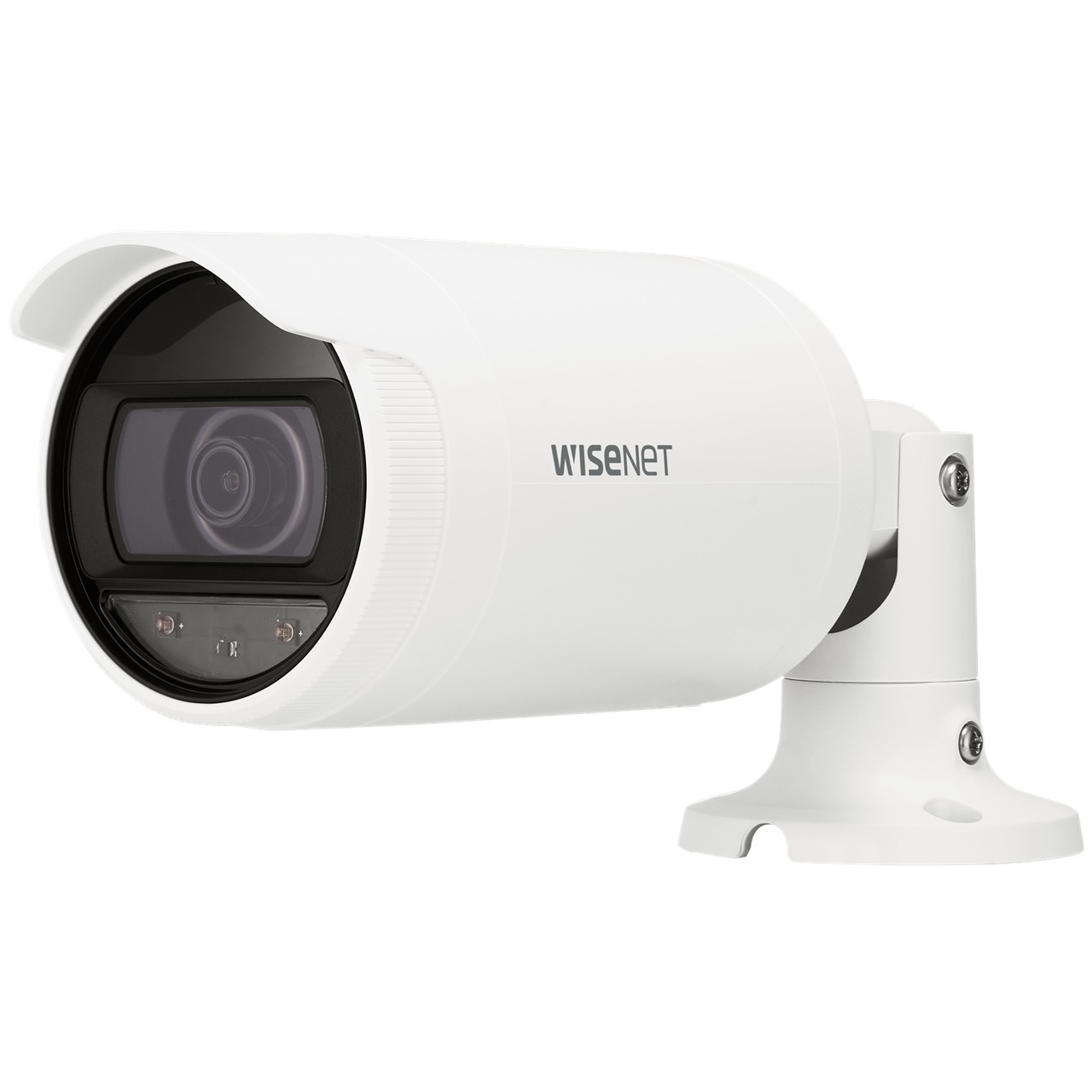

ANO-L6022R Hanwha Techwin 4mm 30FPS @ 2MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG : Max. 10fps
• Min. Illumination - Color: 0.03Lux(F2.0, 1/30sec), BW : 0Lux (IR LED on)

Lens

• Focal Length (Zoom Ratio) - 4mm fixed focal
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 84.3° / V: 45.6° / D: 98.3°
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Fixed

Operational

• Camera Title - Displayed up to 15 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, rectangler zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90/270)
• Analytics - Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
• Alarm Triggers - Analytics
• Alarm events
  • File upload via FTP and e-mail
  • Notification via e-mail
  • SD/SDHC recording at event triggers
• IR Viewable Length - 30m(98.43ft)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - WiseStreamII
• Bitrate Control - H.265/H.264: CBR or VBR, MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast, Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security
  • HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
  • User access log
  • 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI(HTTP API)

General

• Webpage Language - English
• Edge Storage - Micro SD/SDHC 1slot 32GB
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH, * Start up should be done at above -20°C(-4°F)
• Storage Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
• Certification - IP66
• Input Voltage - PoE(IEEE802.3af, Class2)
• Power Consumption - Max 6.4W, Typical 5.0W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø78.0x262.0mm(Ø3.07x10.31"), 390g(0.86lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 42.4m(139.17ft)
• Observe (63PPM/ 19PPF) - 17.0m(55.67ft)
• Recognize (125PPM/ 38PPF) - 8.5m(27.83ft)
• Identify (250PPM/ 76PPF) - 4.2m(13.92ft)

ANO-L6022R Specifications PDF
