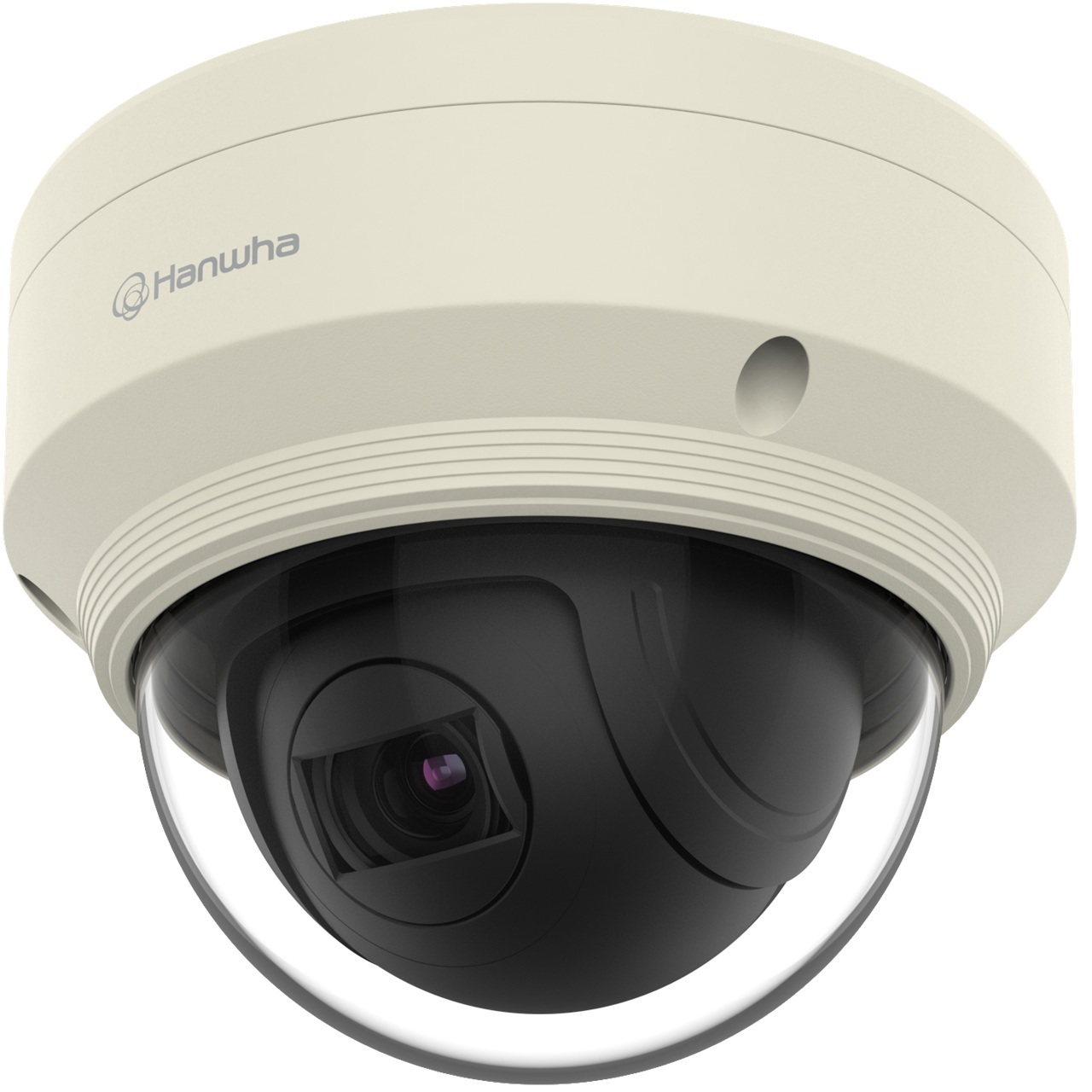

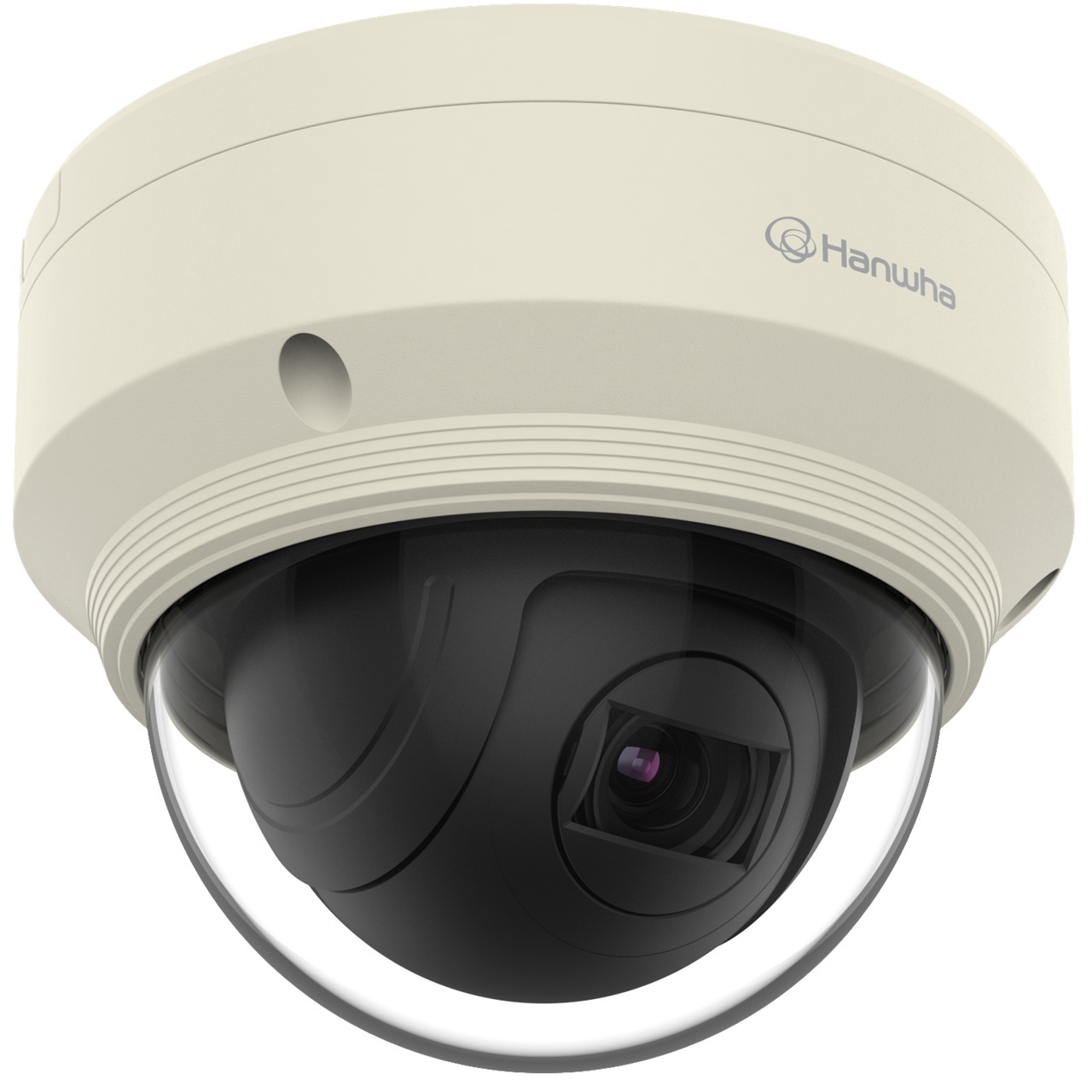

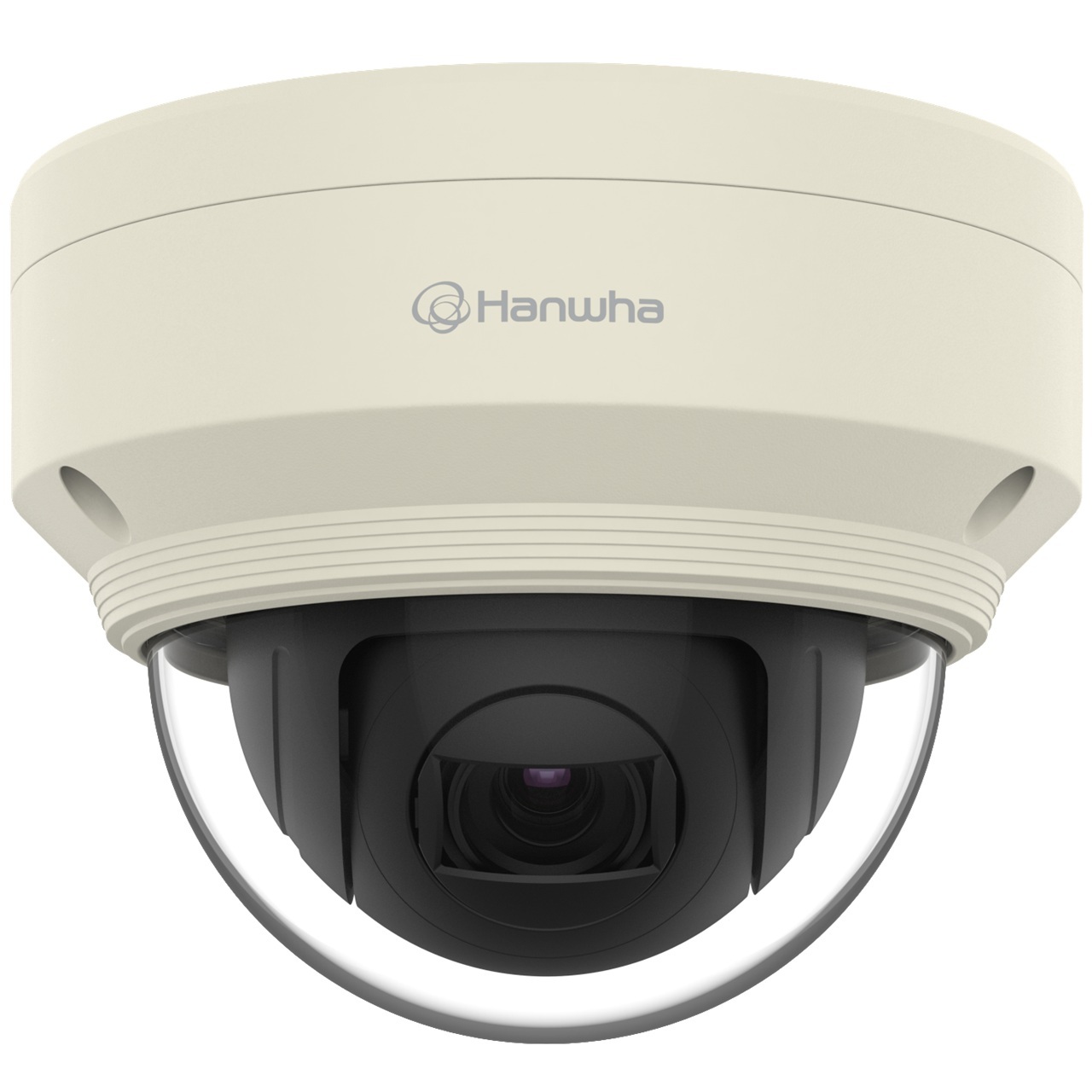

XNP-6040H Hanwha Techwin 2.8-12mm Varifocal 60FPS @ 1920 x 1080 Outdoor Day/Night WDR Dome PTZ IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2.16M CMOS
• Total Pixels - 1,945(H) x 1,109(V), 2.16M
• Effective Pixels - 1,945(H) x 1,097(V), 2.13M
• Scanning System - Progressive
• Min. Illumination - Color : 0.015 Lux (1/30sec, F1.4), B/W : 0.0015 Lux (1/30sec, F1.4)
• S / N Ratio - 50dB
• Video Out - CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation USB : Micro USB Type B, 1280 x 720 for Installation

Lens

• Focal Length (Zoom Ratio) - 2.8 ~ 12mm (Optical 4.3x)
• Max. Aperture Ratio - F1.4
• Angular Field of View - H : 119.5° ~ 27.9° V : 62.8° ~ 15.7° D : 142.1° ~ 32.0°
• Min. Object Distance - 4.92ft (1.5m) (Wide), 6.56ft (2m) (Tele)
• Focus Control - Auto / Manual / One Push
• Lens / Mount Type - DC Auto Iris / Board-in type

Pan/Tilt/Rotate

• Pan Range / Speed - 0° ~ 350° / 0.1°/sec ~60°/sec
• Tilt Range / Speed - 0° ~ 90° / 0.1°/sec ~ 60°/sec
• Sequence / Preset Accuracy - Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto Run, Schedule / ± 0.5°
• Azimuth - Yes (E/W/S/N/NE/NW/SE/SW)
• Auto Tracking - Support

Operational

• Camera Title
  • Off / On (Displayed up to 85 Characters)
  • - W/W : English / Numeric / Special Characters
  • - China : English / Numeric / Special / Chinese Characters
  • - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),Transparency, Auto scale by Resolution
• Day & Night - Auto (ICR) / Color / B/W
• Backlight Compensation - Off / BLC / HLC / WDR
• Wide Dynamic Range - 150dB
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D Noise filter) (Off / On)
• Digital Image Stabilization - Off / On (Built-in Gyro sensor)
• Defog - off/Auto/Manual
• Motion Detection - Off / On (8ea, 8point Polygonal zones)
• Privacy Masking -
  • Off / On (24ea, Rectangle zones)
  • - Color : Gray / Green / Red / Blue / Black / White
  • - Zoom ratio option for mask mode - Mosaic
• Gain Control - Off / Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital Zoom - 24x, area zoom function support digital zoom 2x
• Flip / Mirror - Off / On
• Video & Audio Analytics - Tampering, Loitering, Directional detection, Defocus detecion, Fog detection, Virtual line, Enter/Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification
• Serial Interface - RS-485 - Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
• Alarm Events - File upload Via FTP, E-Mail, Notification Via E-Mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, preset
• Pixel Counter - Support

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265/H.264 : Max 60fps at all resolutions MJPEG : Max. 30fps at all resolutions
• Smart Codec - Manual mode (Area-based : 5ea)
• WiseStreamII - Support
• Video Quality Adjustment - H.265 / H.264 / MJPEG : Target Bitrate Level Control
• Bitrate Control Method - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple Streaming (Up to 10 Profiles)
• Audio In - Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
• Audio Out - Line out (3.5mm mono jack), Max output level : 1 Vrms
• Audio Compression Format
  • G.711 u-law /G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
  • G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication - Bi-dierctional
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, ser access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 users at Unicast Mode
• Edge Storage - SD/SDHC/SDXC 2slot (up to 512 GB) Continuous recording (1'st slot to 2'nd slot) Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for Instant Recording
• Application Programming Interface - ONVIF profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform
• Webpage Language - English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek
• Web Viewer - Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12, Non-plugin Webviewer, Supported Browser: Google Chrome, MS Edge, Mozilla Firefox , Apple Safari 10, (Mac OS X only), Plug-in Webviewer, Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only)
• Central Management Software - SmartViewer, SSM

Environmental

• Operating Temperature / Humidity - -22°F ~ +131°F (-30°C ~ +55°C) / Less than 90% RH
• Storage Temperature / Humidity - -22°F ~ +140°F (-30°C ~ +60°C) / Less than 90% RH
• Ingress Protection / Vandal Resistance - IP66 / IK10

Electrical

• Input Voltage / Current - 12V DC, PoE
• Power Consumption - Max. 8.6W (12V DC), Max. 9.6W (PoE)

Mechanical

• Color / Material - Ivory / Aluminum
• Dimensions (WxH) - 136.1 x 106.1mm (5.36" x 4.18")
• Weight - 1.72 lb (0.78 kg)
