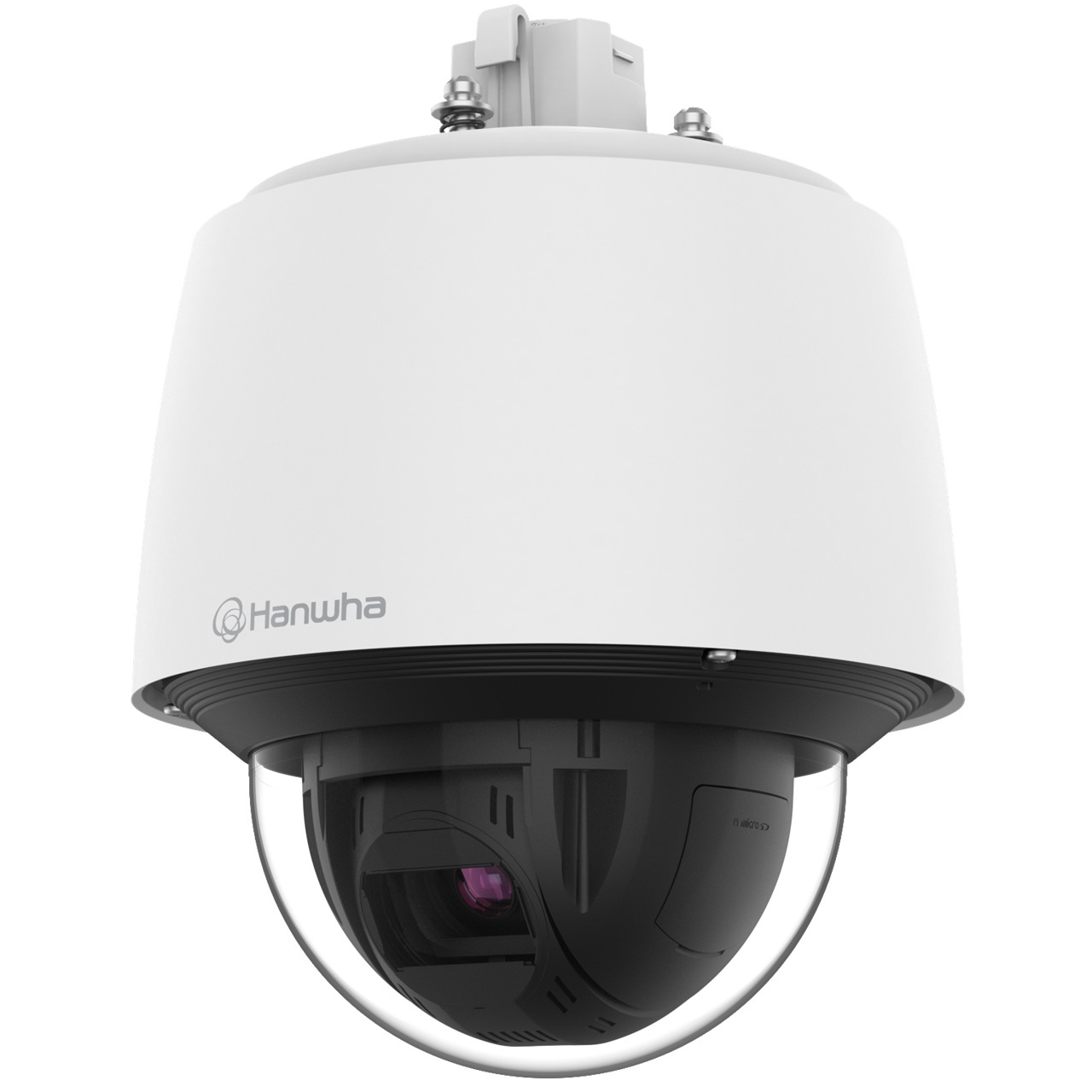

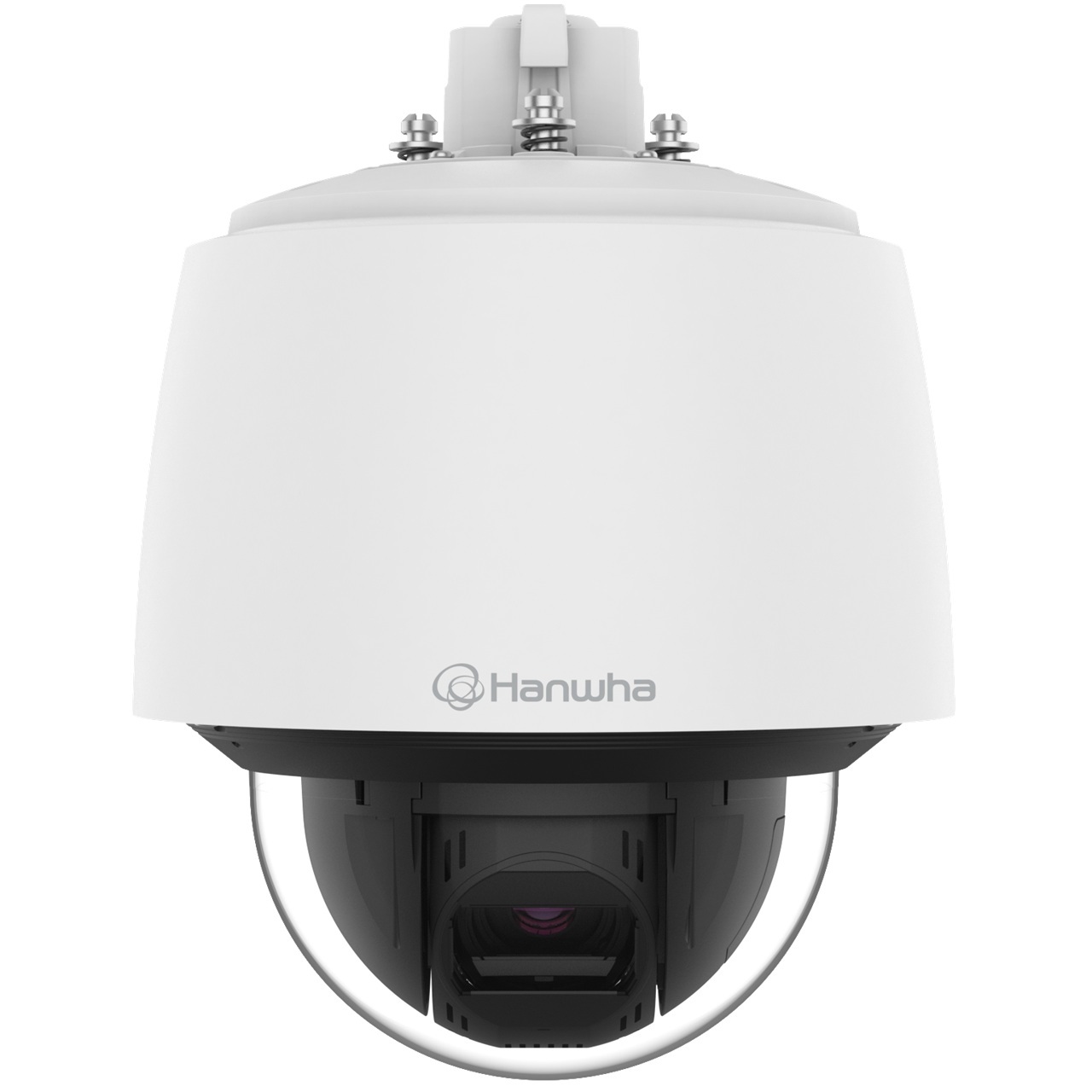

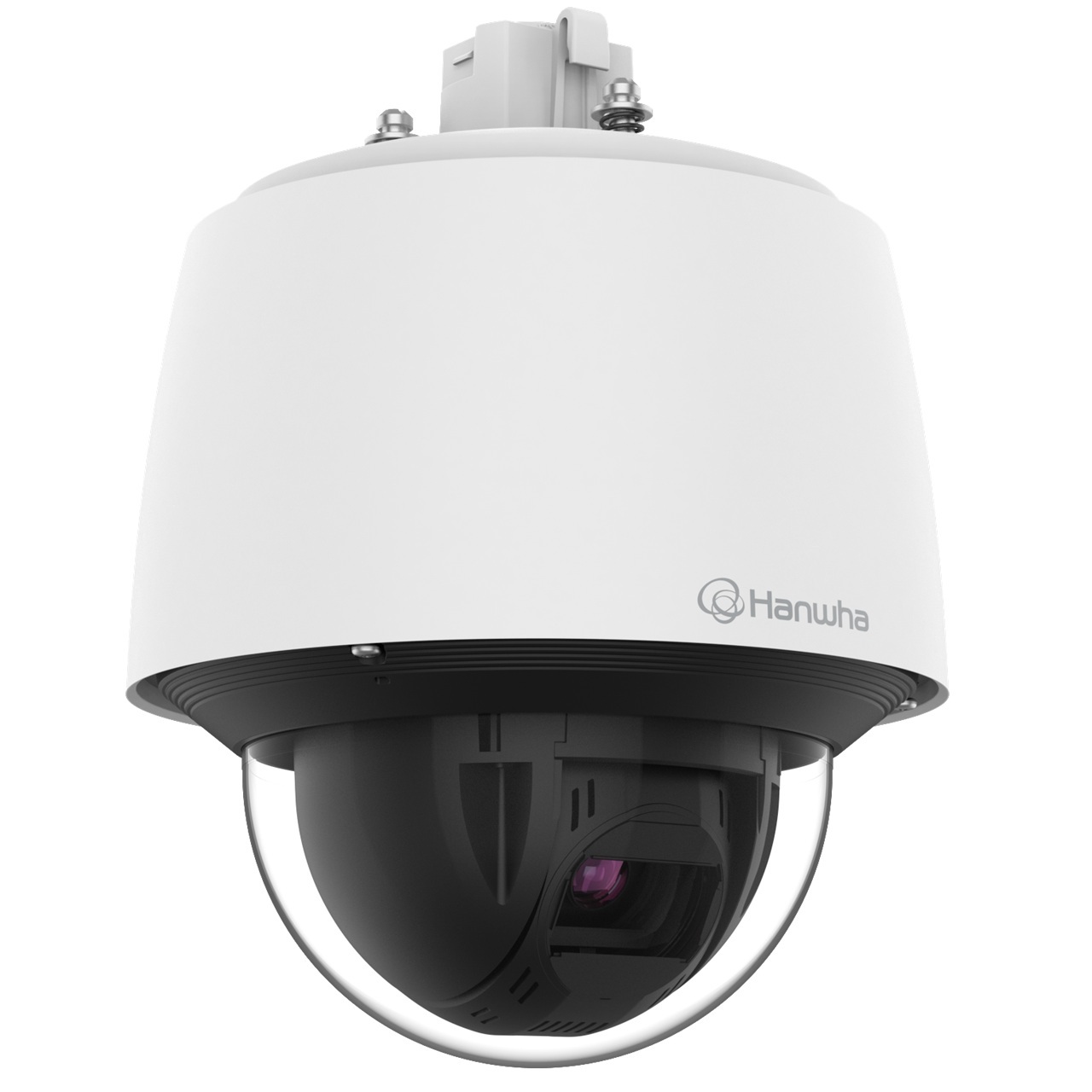

QNP-6250H Hanwha Vision Q Series 4.44-111mm 25x Optical Zoom 60FPS @ 2MP Outdoor Day/Night WDR PTZ IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE)

Lens

• Focal Length (Zoom Ratio) - 4.44~111mm(25x) zoom (digital 32x, total 800x zoom)
• Max. Aperture Ratio - F1.6(Wide) ~ F3.9(Tele)
• Angular Field of View - H: 64.66°(Wide)~2.99°(Tele) V: 38.08°(Wide)~1.68°(Tele)
• Min. Object Distance - Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
• Focus Control - Oneshot AF, Focus save
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - Preset: 700Ëš/sec, Manual: 0.024Ëš/sec~200Ëš/sec
• Tilt Range - 105°(0°~105°)
• Tilt Speed - Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - ±0.2°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - AIuto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Analytics events - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210)
• Alarm Triggers - Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210)
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip playback(Via optional I/O box SPM-4210)

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

Security

• OS / Firmware Protect - Firmware encryption
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - IP address filtering
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log
• Device ID - Device Certificate(Hanwha Techwin Root CA, pre-installed)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 1GB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 256GB

Environmental & Electrical

• Operating Temperature / Humidity - -35°C~+55°(-31°F ~ +131°F) * Start up should be done at above -30°C 0~95% RH(non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - PoE+: Max. 23W, typical 14W

Mechanical

• Color / Material - Body : White / Aluminum Head : Black / Polycarbontate
• RAL Code - RAL9003
• Product Dimensions / Weight - ø204.3x265mm(ø8.04x10.43”), 2700g(5.95lb)
• Hanging Mount (Dome) - SBP-156HMW
• Ceiling Mount (Assy) - SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
• Wall Mount - SBP-156WMW, SBP-390WMW2
• Pole Mount - SBP-300PMW2
• Parapet Mount - SBP-156LMW, SBP-300LMW
• Corner Mount - SBP-156KMW, SBP-300KMW1
• Cabinet - SBP-300NBW

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A IC Regulation ICES-003 Issue 7 Class A CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 60.7m(199.1ft) / Tele: 1471.3m(4827.2ft)
• Observe (63PPM/ 19PPF) - Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft)
• Identify (250PPM/ 76PPF) - Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft)

Ver

• Ver - 2310

QNP-6250H Specifications PDF
