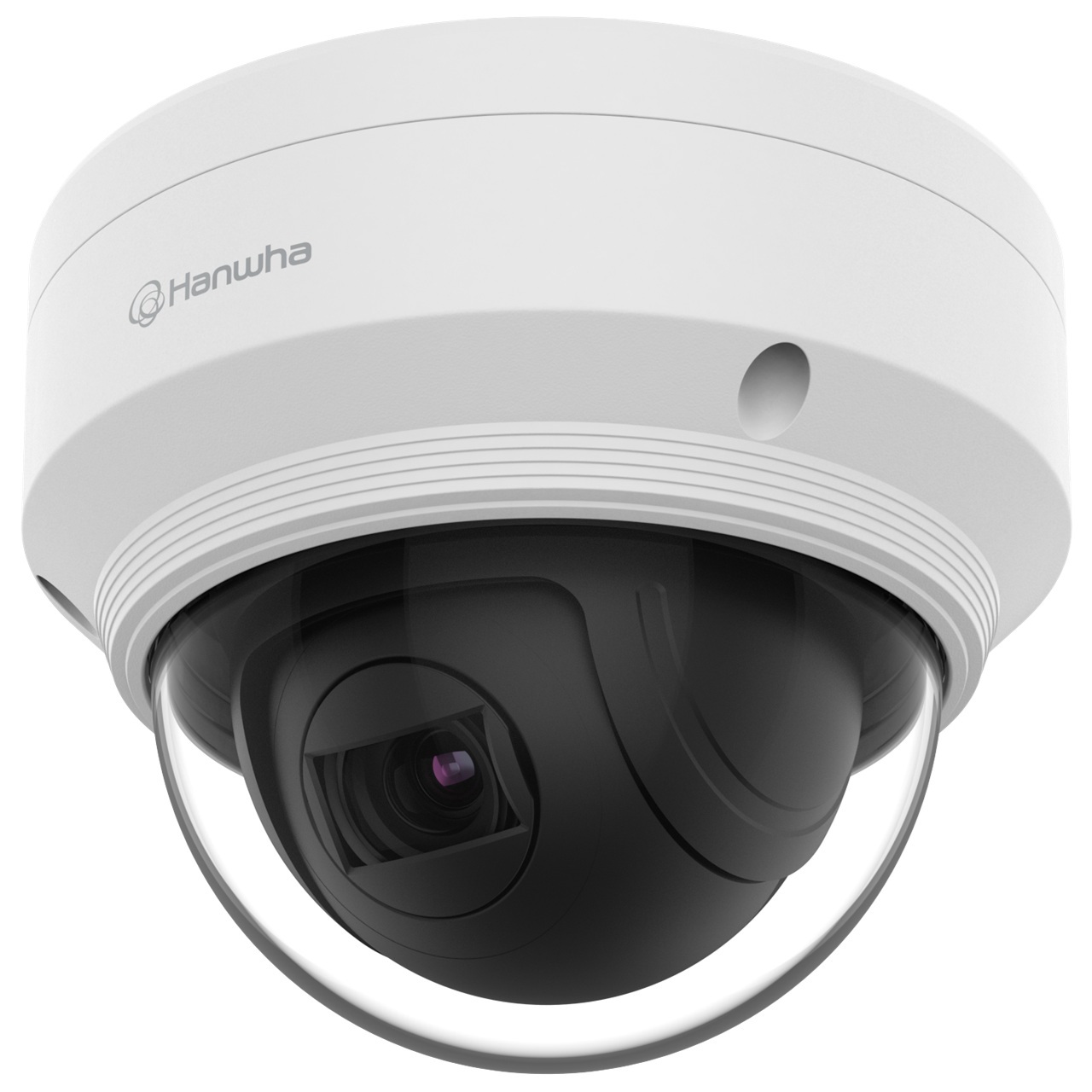

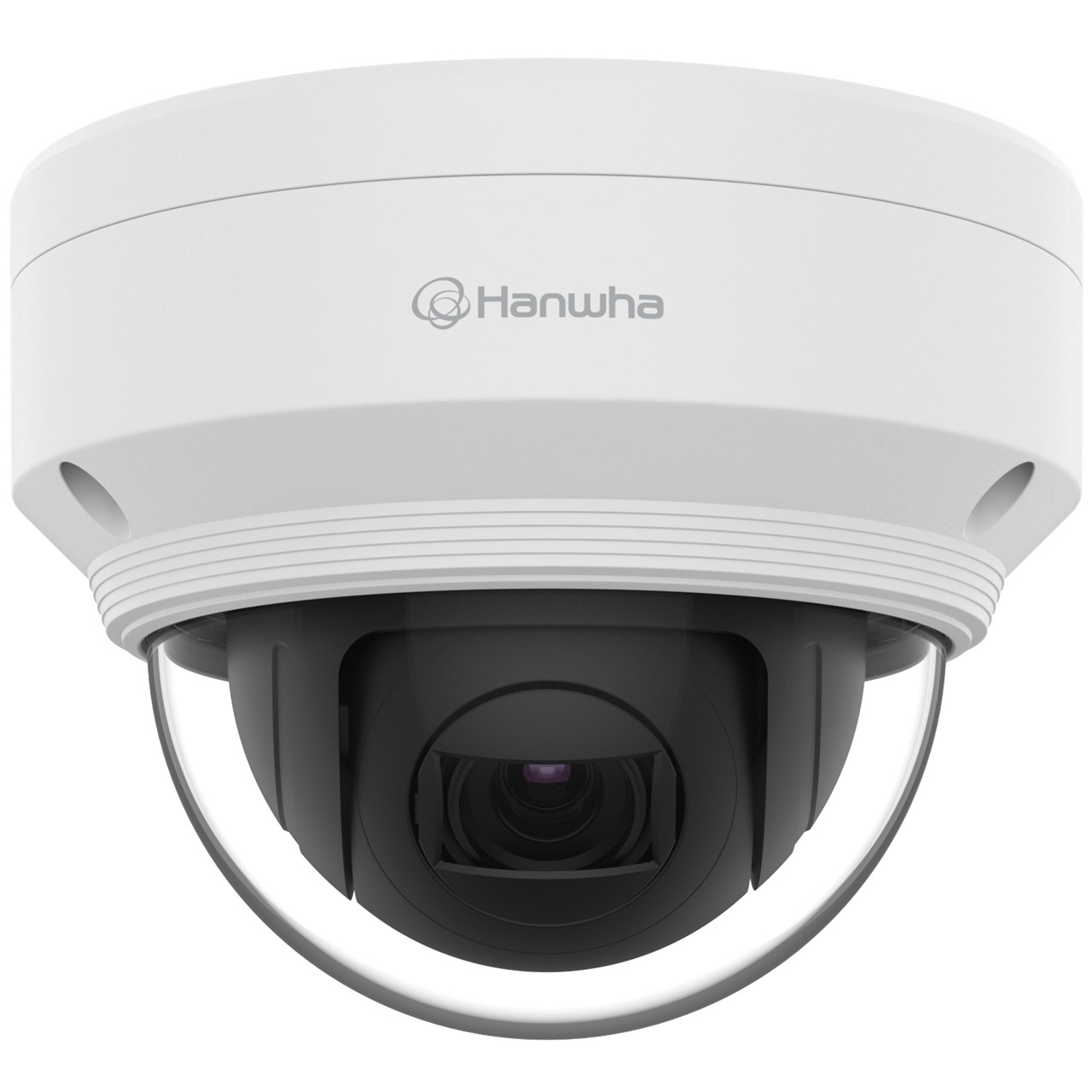

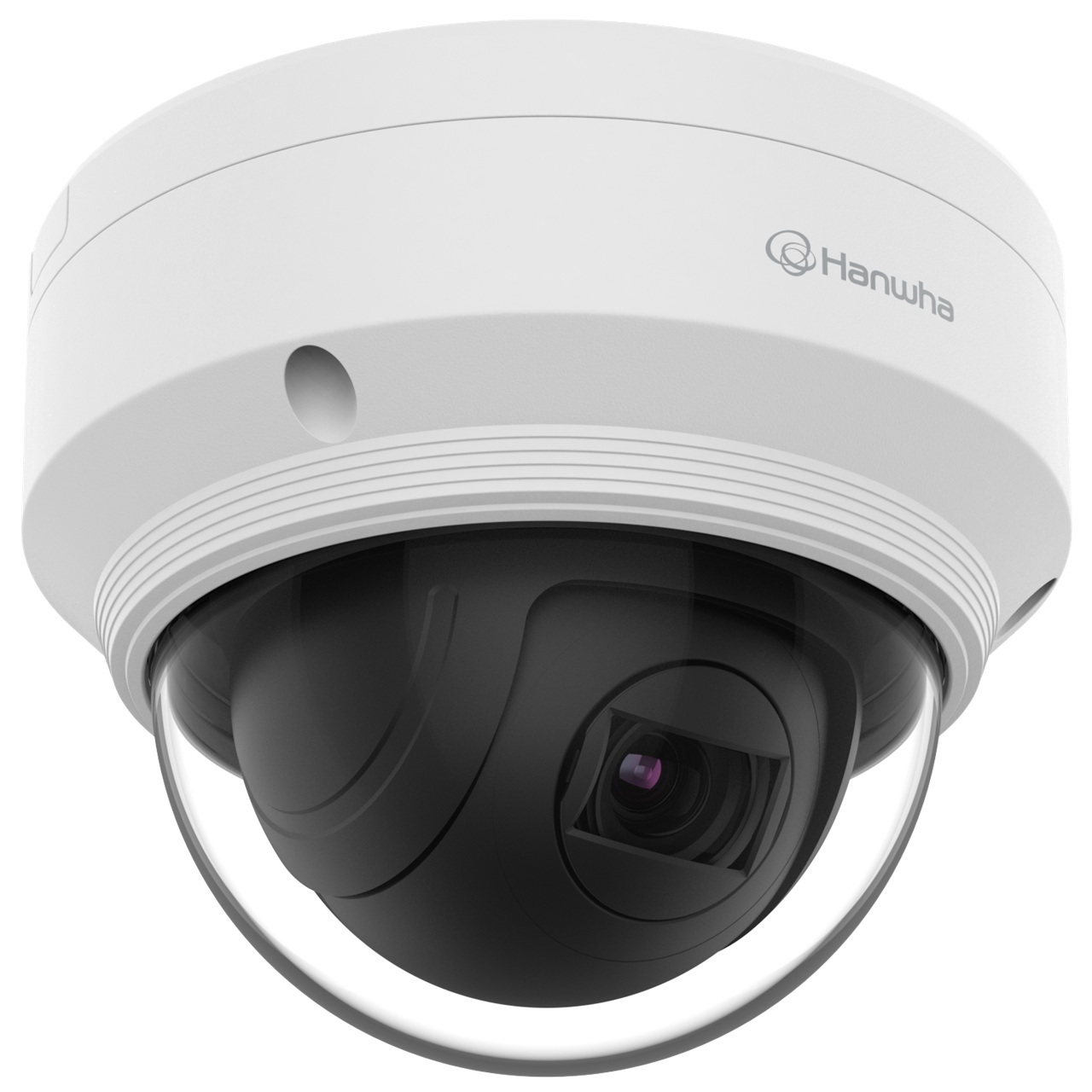

XNP-6040HW Hanwha Vision X Series 2.8 - 12mm 4.3x Optical Zoom 60FPS @ 2MP Outdoor Day/Night WDR PTZ IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.015Lux(F1.4, 1/30sec) BW: 0.0015Lux(F1.4, 1/30sec)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.8~12mm(4.3x) zoom (digital 32x, total 137.6x zoom)
• Optical Zoom - 4x
• Max. Aperture Ratio - F1.4
• Angular Field of View - H: 119.5Ëš(Wide)~27.9Ëš(Tele) V: 62.8Ëš(Wide)~15.7Ëš(Tele) D: 142.1Ëš(Wide)~32.0Ëš(Tele)
• Min. Object Distance - Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
• Focus Control - AF / One-Shot AF / Manual
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 0° ~ 350°
• Pan Speed - 0.1°/sec ~60°/sec
• Tilt Range - 0° ~90°
• Tilt Speed - 0.1°/sec ~60°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - ±0.5°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC /Manual /Indoor /Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Serial Interface - RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• Auto Tracking - Support

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 512GB
• Memory - 1GB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C (-22°F~+131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
• Certification - IP66, IK10
• Input Voltage - DC12V, PoE(IEEE802.3af, Class3)
• Power Consumption - DC12V: Max. 8.6W PoE : Max. 9.6W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - ø136x106mm(5.35x4.17"), 780g(1.72 lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
• Observe (63PPM/ 19PPF) - Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
• Recognize (125PPM/ 38PPF) - Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
• Identify (250PPM/ 76PPF) - Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)

Ver

• Ver - 202411
