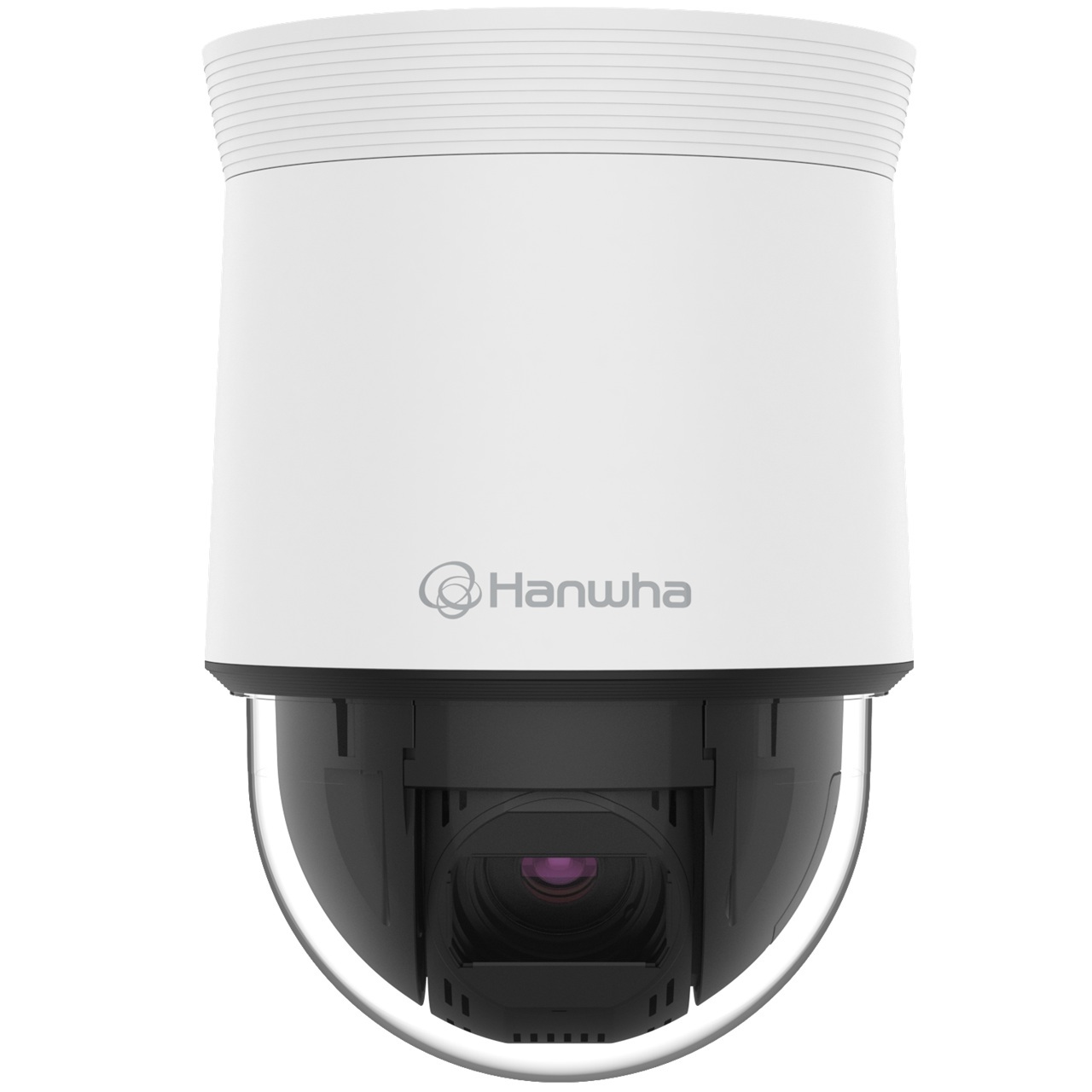

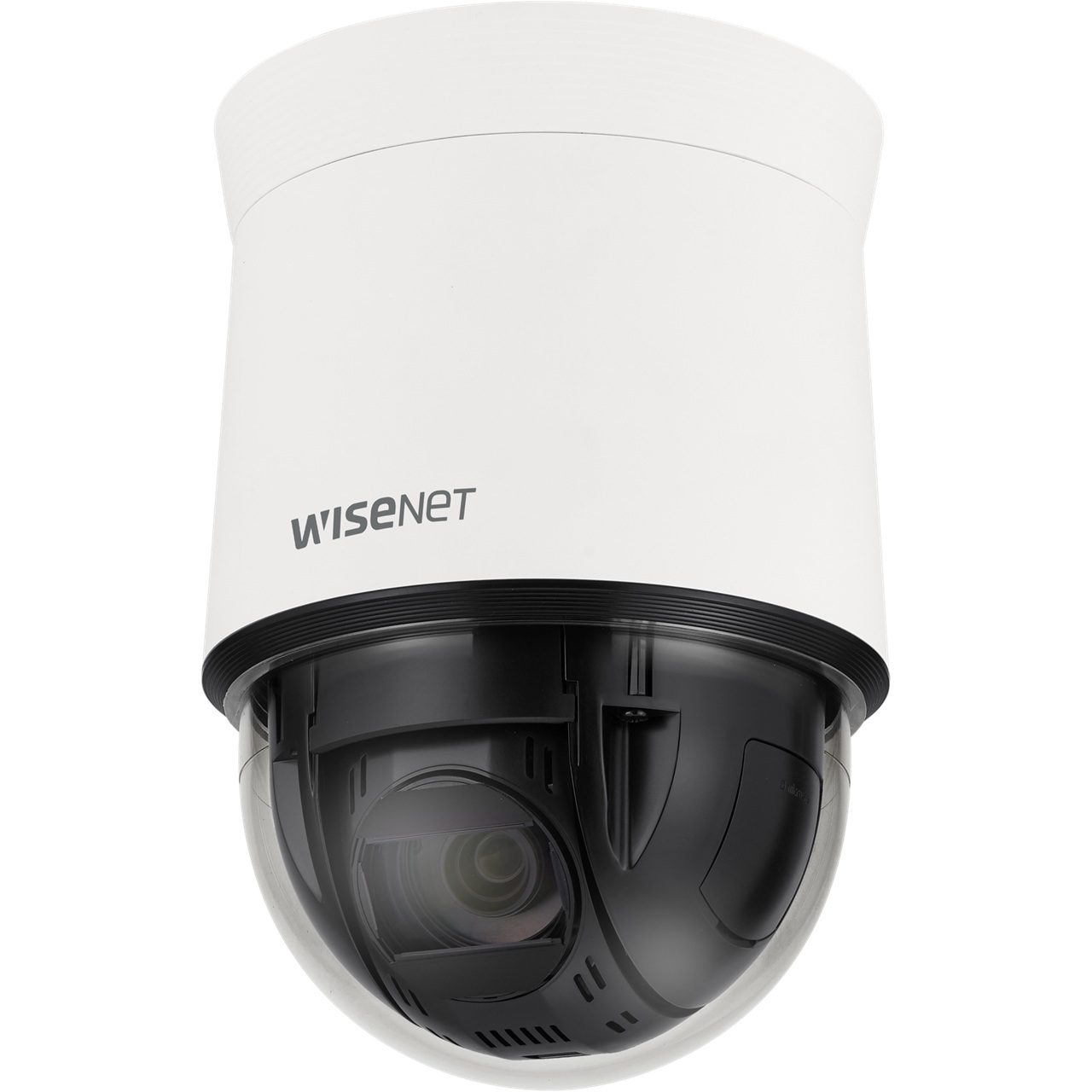

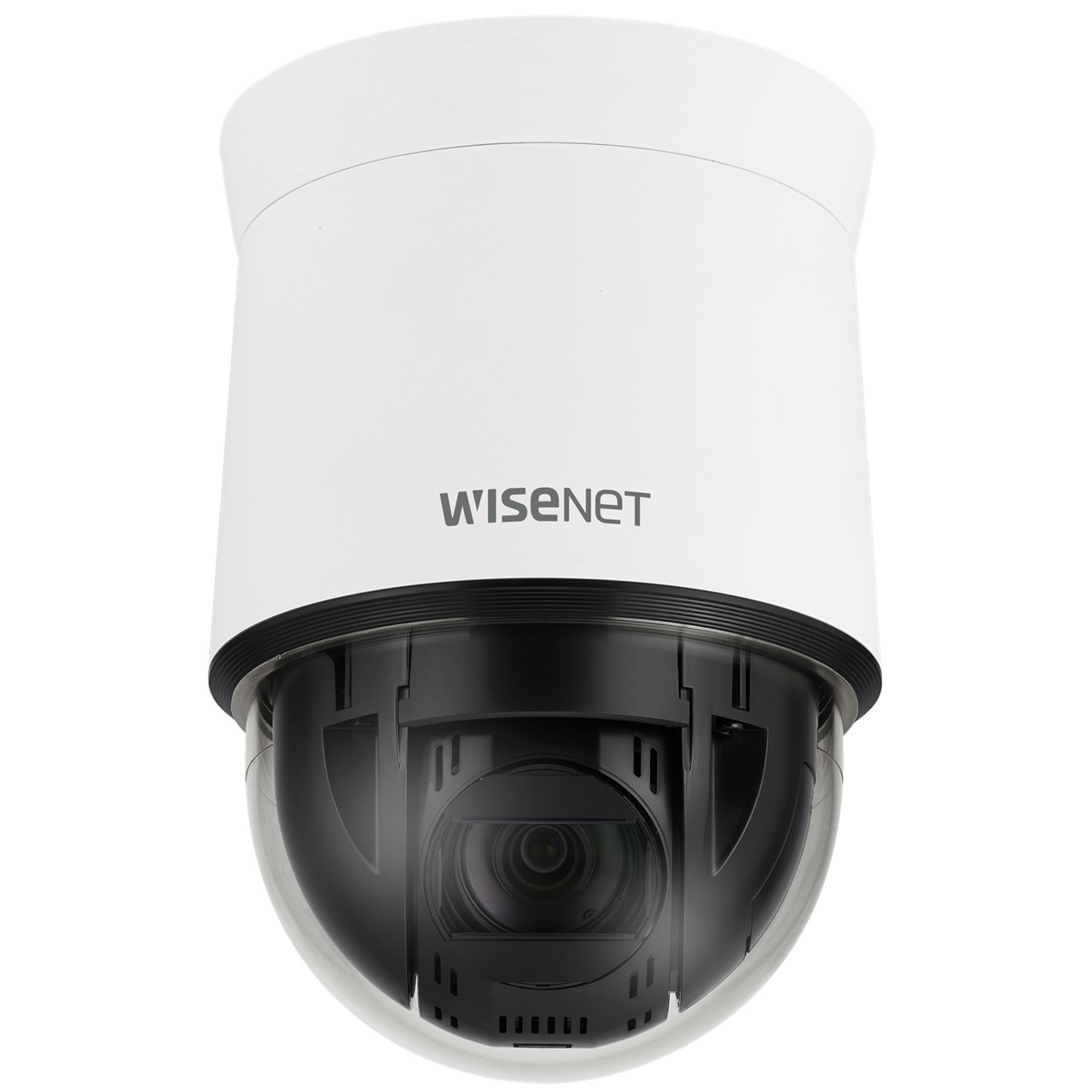

QNP-6250 Hanwha Vision Q Series 4.44-111mm 25x Optical Zoom 60FPS @ 2MP Indoor Day/Night WDR PTZ IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec)

Lens

• Focal Length (Zoom Ratio) - 4.44~111mm(25x) zoom
• Max. Aperture Ratio - F1.6(Wide) ~ F3.9(Tele)
• Angular Field of View - H: 64.66Ëš(Wide)~2.99Ëš(Tele) / V: 38.08Ëš(Wide)~1.68Ëš(Tele)
• Min. Object Distance - Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
• Focus Control - Oneshot AF
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - Preset: 700Ëš/sec, Manual: 0.024Ëš/sec~200Ëš/sec
• Tilt Range - 105Ëš(-15Ëš~90Ëš)
• Tilt Speed - Preset: 300Ëš/sec, Manual: 0.024Ëš/sec~200Ëš/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - ±0.2°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - AIuto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection
• Alarm I/O - Input 4ea / Output 2ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264,MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 1024MB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

Environmental & Electrical

• Operating Temperature / Humidity - -10°C~+55°C (-58°F ~ +131°F) / Less than 95% RH
• Storage Temperature / Humidity - -30°C~+60°C (-58°F~+140°F) / Less than 95% RH
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - Max. 14.5W, Typ. 12W

Mechanical

• Color / Material - White
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 64.2m(199.1ft) / Tele: 1471.3m(4827.2ft)
• Observe (63PPM/ 19PPF) - Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft)
• Identify (250PPM/ 76PPF) - Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft)

QNP-6250 Specifications PDF
