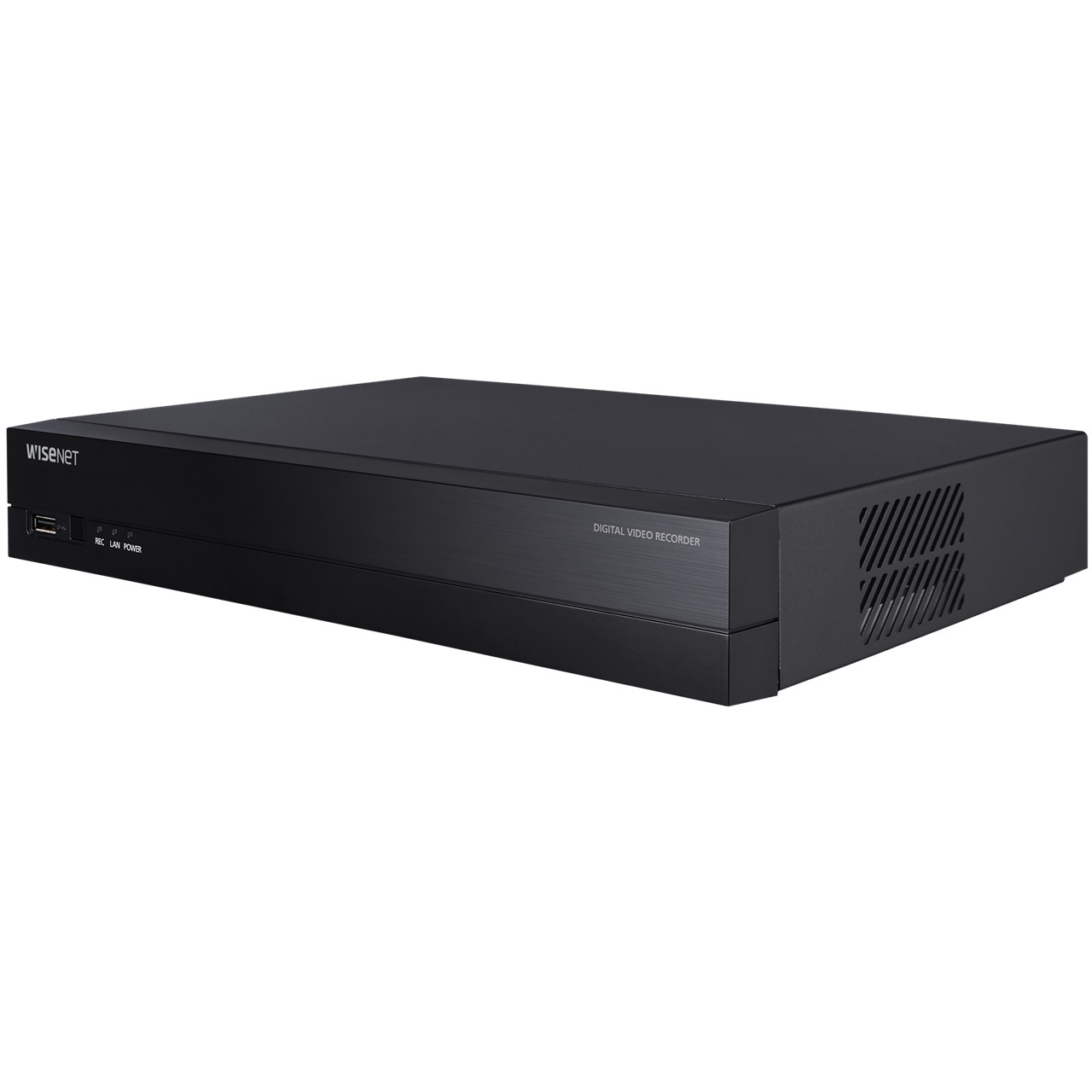

HRX-434-4TB Hanwha Techwin 4 Channel HD-TVI/HD-CVI/AHD/Analog + 2 Channel IP DVR Up to 32FPS @ 8MP - 4TB

The Wisenet HD+ Pentabrid DVR features support for AHD (up to 8MP), TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), 4 Channel analog + 2 IP camera channels. Easily migrate analog channels with recording up to 6 IP channels. Other features include recording 1080p @ 30fps/channel (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, 30mbps IP cameras recording throughput,1 internal HDD, 4 Channel audio input / 1 Channel audio output, 4 alarm input and 2 relay outputs, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code

Specifications

Display

Analog Camera

• Inputs - 4CH(1Vp-p 75ohm, BNC)
• Signal Type - AHD(8MP, 5MP, 4MP, 1080p, 720p), HDTVI(8MP, 5MP, 4MP, 1080p, 720p), HDCVI(5MP, 4MP, 1080p, 720p), CVBS (NTSC/PAL)

Network Camera

• Inputs - Max. 6CH
• Resolution - 8MP ~ CIF
• Protocols - SUNAPI(Wisenet), ONVIF

Live

• Local Display - 1x HDMI, 1x VGA (simultaneous output), HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, VGA: 1920x1080, 1280x1024, 1280x720
• Resolution - [Analog Camera(NTSC/PAL)], - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) *per CH, [Network Camera] - Typ. 2MP 120fps)

Performance

Record

• Compression - H.265, H.264, MJPEG
• Record Rate(Analog) - Analog Camera (Main Stream) 8MP 8fps/CH, 5MP 12fps/CH, 4MP 15fps/CH, 2MP 30fps/CH, 720p 30fps/25fps, 960H/640H 30/25fps (NTSC/PAL per CH), (Sub Stream) 720p or higher : 640x360 30fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. 8MP only supported on 1 channel.
• Recording Bandwidth - Max. 30Mbps
• Resolution - 8MP ~ CIF
• Mode - Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
• Event Trigger - Alarm Input, Analog Camera : Video Loss, Motion Detection,Tampering, Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audiodetection), Defocus camera event
• Event Action - E-mail, PTZ preset, Alarm out, Buzzer, Monitor out

Search & Play

• Playback Bandwidth - Max. 32Mbps (6CH simultaneously)
• User - Max. 4 users (Local 1, Remote 3)
• Simultaneous Playback - 6CH(Local Monitor CMS, Wisenet Mobile), 1CH(Web)
• Fisheye Dewarping - WEB / CMS

Storage

• Supported HDD - Up to 6TB
• HDD Slot - SATA 1ea (Max 6TB)

Backup

• File Backup - BU, EXE(Include Player), AVI(Webviewer only)
• Function - Max. 6 CH play, Date-time/title display

Functions

PTZ

• Control - Via GUI, Wisenet WAVE, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller

Smart Phone

• Supported OS - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
• Control - Live(4CH) : Multi-Profile Support, Playback(4CH Multi Playback, Maximum 2MP), Event push
• Maximum Remote Users - Search(3), Live Unicast(10)

Redundancy

• ARB - Support
• Easy Configuration - Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
• Coaxial Control - CVBS(Pelco-C)/AHD/CVI/TVI

Interface

• HDMI - 1EA
• VGA - 1EA
• BNC - 4CH In / 1CH Out(Spot Output)
• Audio - Out(1EA, RCA, Line)
• Ethernet - RJ-45(10/100/1000BASE-T)
• Alarm - In 4EA, Out 1EA, Relay Out1(NO/NC/COM)
• USB - 2EA(Front/Rear USB2.0)
• Serial(Protocols) - RS-485 (Samsung-T/Pelco-D/Pelco-p) for PTZ
• Power Inlet - 1EA DC Input Jack

System

• System Control - Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai

Environmental

• Operating Temperature - 0°C to +40°C(+32°F to +104°F)
• Operating Humidity - 20% ~ 85% RH
• Certification - UL, CE, FCC, KC

Electrical

• Power Input - DC12V
• Power Consumption - Max. 22W (6T HDD 1ea)

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 300 x 47 x 208.7mm (11.85" x 1.89" x 8.22")
• Weight - Approx. 1.5Kg (3.30 lb, 4TB HDD 1ea)

Network

• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Wisenet DDNS
• Transmission speed - Analog Camera - (Main Stream) 8MP 8/8fps CH, 5MP 12/12fps, 4MP 15/12fps, 2MP 30/25fps, 720p, 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH), (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera
• Transmission Bandwidth - Max. 32 Mbps
• Audio
  • Input/Output - 1 Line in / 1 Line out
  • Compression - G.711 (N/W Cam G.711, 726)
  • Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security - IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup), Device Certificate(Hanwha Techwin Root CA)
• Viewer Software - Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile Support SDK/CGI(SUNAPI) for integration to 3rd party VMS
