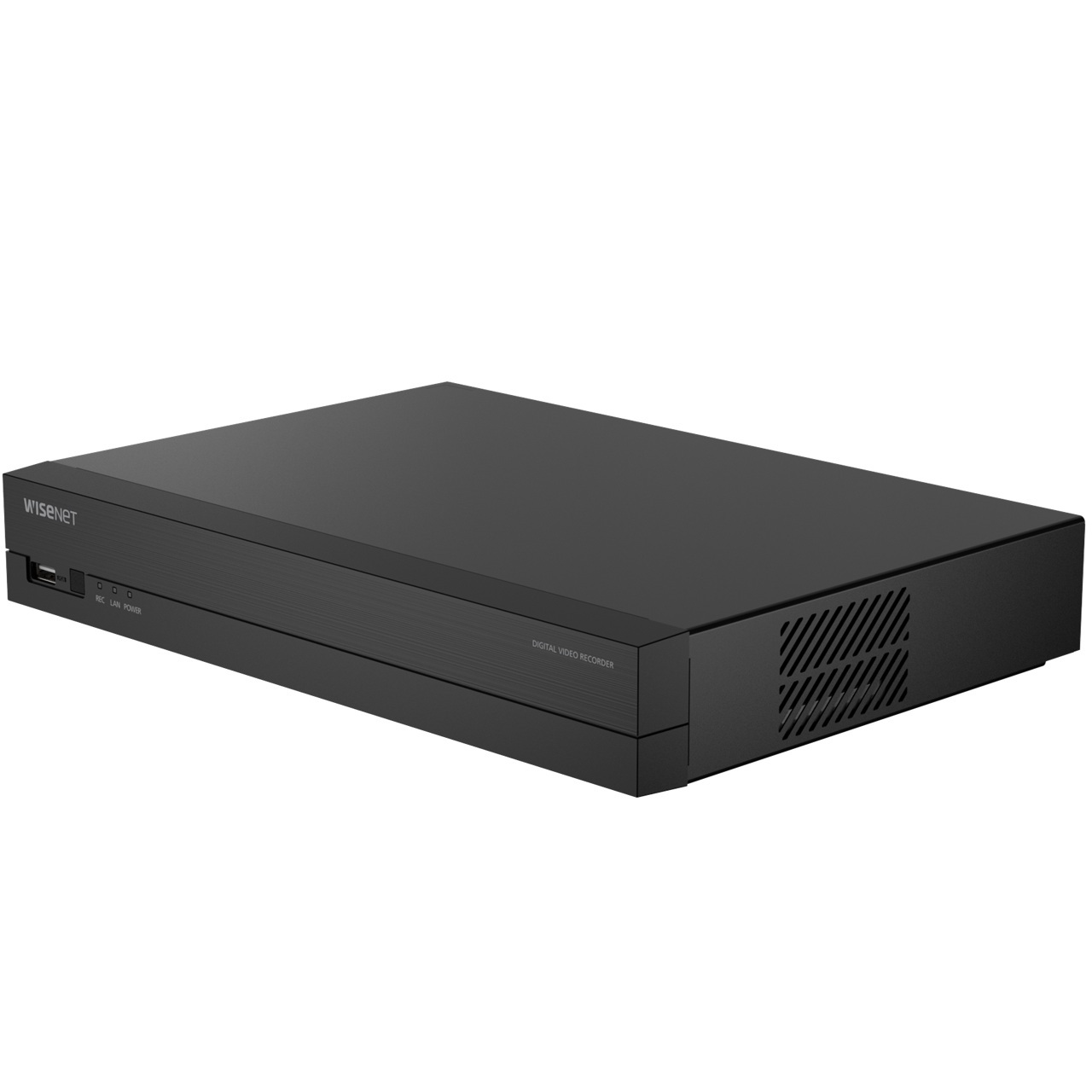

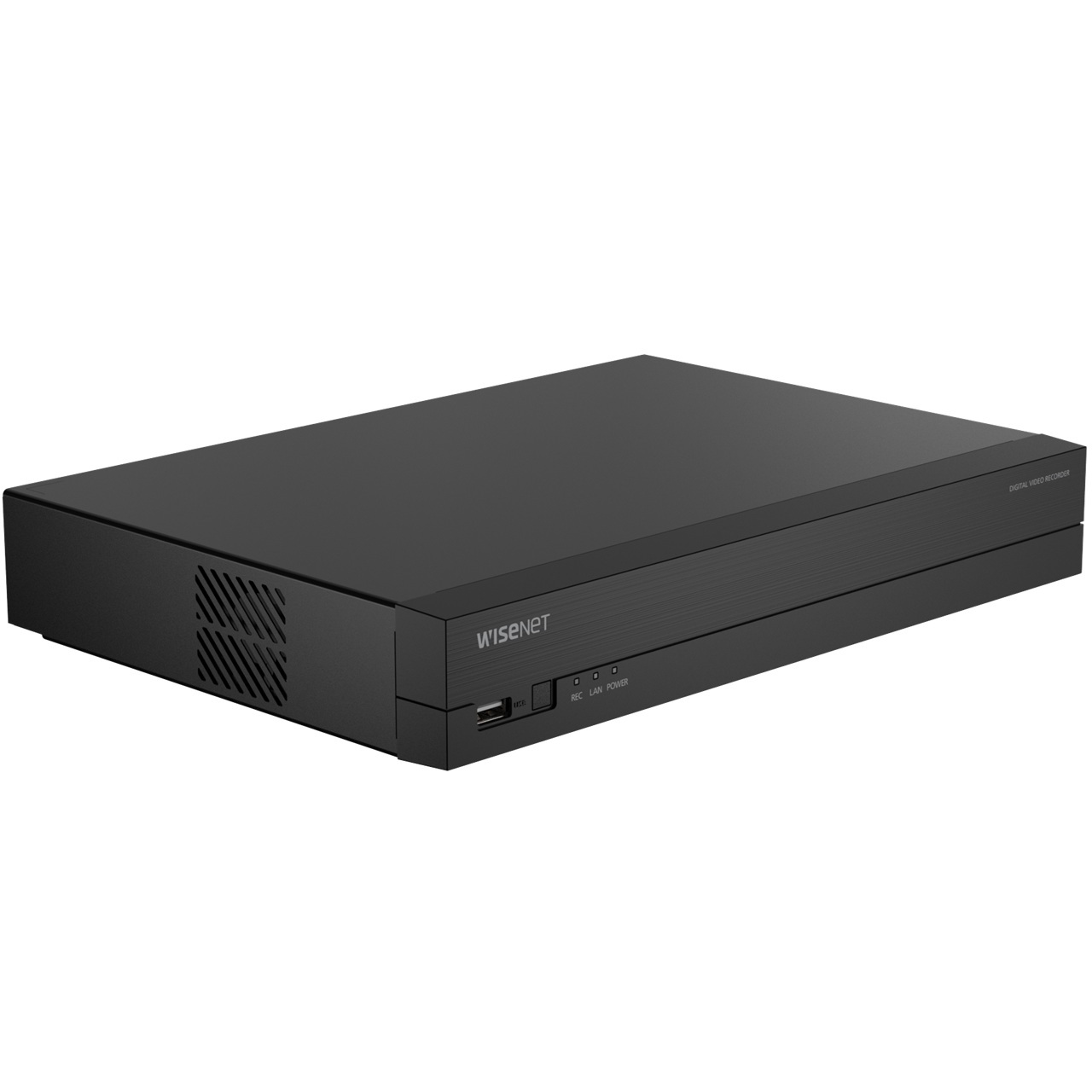

ARD-410 Hanwha Techwin 4 Channel Analog/AHD/HDTVI/HDCVI/CVBS + 2 Channel IP DVR Up to 60FPS @ 4MP – No HDD

Specifications

Display

Analog camera

• Inputs - 4CH(1Vp-p 75ohm, BNC)
• Signal Type
  • AHD(5MP Half, 4MP Half, 1080p)
  • HD TVI(5MP Half, 4MP Half, 1080p)
  • HD CVI(5MP Half, 4MP Half, 1080p)
  • CVBS(NTSC/PAL)

Network camera

• Inputs - Additional 2CH (Max. 6CH)
• Resolution - 5MP ~ CIF
• Protocols - SUNAPI(Wisenet), ONVIF

Live

• Local Display
  • 1x HDMI, 1x VGA
  • [Single Mode]
  • - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024,1280x720
  • [Dual Mode] Clone
  • - HDMI: 1920x1080, 1280x1024, 1280x720
  • - VGA: 1920x1080, 1280x1024, 1280x720
• Multi Screen Display
  • [Local monitor]
  • - Dynamic layout, Virtual channel view
  • - up to 6 division
  • [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9
• Resolution
  [Analog Camera(NTSC/PAL)]
  • 5MP(Half ), 4MP(Half), 2MP
  • [Network Camera]
  • - Typ. 2MP(120fps)

Performance

Operating System

• Embedded - Linux
• Compression - H.265, H.264, MJPEG
• Record Rate(Analog)
  • [Analog Camera(NTSC/PAL)]
  • 5MP(5M Half 12fps/12fps)
  • 4MP(4M Half 15fps/12fps)
  • 2MP(2M 15fps/12fps)
  • * Half : Horizontal resolution 1/2
  • * Resolution higher than 2MP will only record half of the resolution, 4MP will only record 2MP, and 5MP will only record 2.5MP
• Record
  • Recording Bandwidth - Max. 30Mbps
  • Resolution - 5MP ~ CIF
  • Mode - Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
  • Event Trigger
    • Alarm Input
    • Analog Camera : Video Loss, Motion Detection,Tampering
    • Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event
  • Event Action - E-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, SUNAPI Command, FTP, Shutdown

Search & Play

• User - Max. 4 users (Set 1, Remote 3)
• Simultaneous playback - CH(Local Monitor),6Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web)
• Fisheye Dewarping - WEB / CMS
• Mode - Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/direction, Enter / Exit) * All Search Included Preview Function, ARB search
• Resolution - 5MP ~ CIF
• Playback Control - Fast Forward/Backward (x2,x4,x8,x16,x32,x64, x128, x256), Slow Forward/Backward (x1/2,x1/4,x1/8), ※Move one step up/down

Storage

• Supported HDD -Up to 6TB
• HDD Slot - SATA 1ea(Max 6TB)

Backup

• File backup - BU, EXE(Include Player), AVI
• Function - Max. 6 CH play, Date-time/title display

Network

• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Wisenet DDNS
• Transmission Bandwidth - Max. 30Mbps
• Audio
  • Input/Output - 1 Line in / 1 Line out
  • Compression - G.711 (N/W Cam G.711, 726)
  • Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security
  • IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
  • Device Certificate(Hanwha Techwin Root CA)
• Web viewer
  • Supported OS - Windows 10, Mac OS 11 Big Sur and later
  • Supported browser - Chromeor, Edge , Safari
• Viewer Software
  • SSM, Webviewer, Wisenet Viewer, Wisenet mobile
  • Support CGI(SUNAPI) for integration to 3'rd party VMS

Functions

• Camera Setup
• Register - Auto, Manual
• PTZ
  • Control - Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile, Viewer, System Controller
• Preset - 300 presets
• Smart phone
  • Support Model - iOS, Android
  • Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
  • Control
    • Live(6ch) : Multi-Profile Support
    • Playback(4Ch Multi Playback, Max 2MP)
    • Event push
  • Max. Remote Users - Search(3), Live Unicast(10)
• Redundancy
  • ARB - Support
• Easy configuration - Install wizard support
• Coaxial Control - CVBS(Pelco-C)/AHD/CVI/TVI

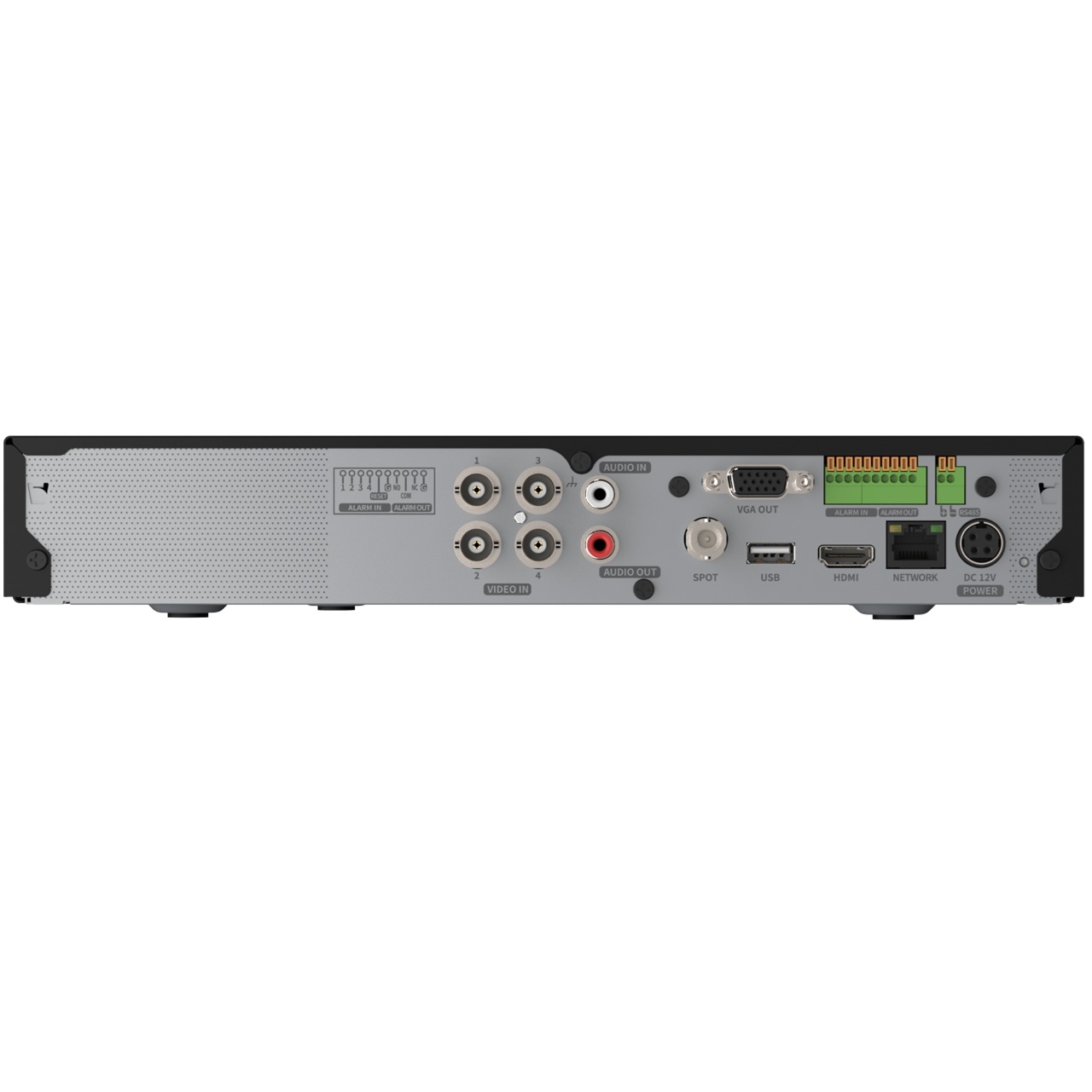

Interface

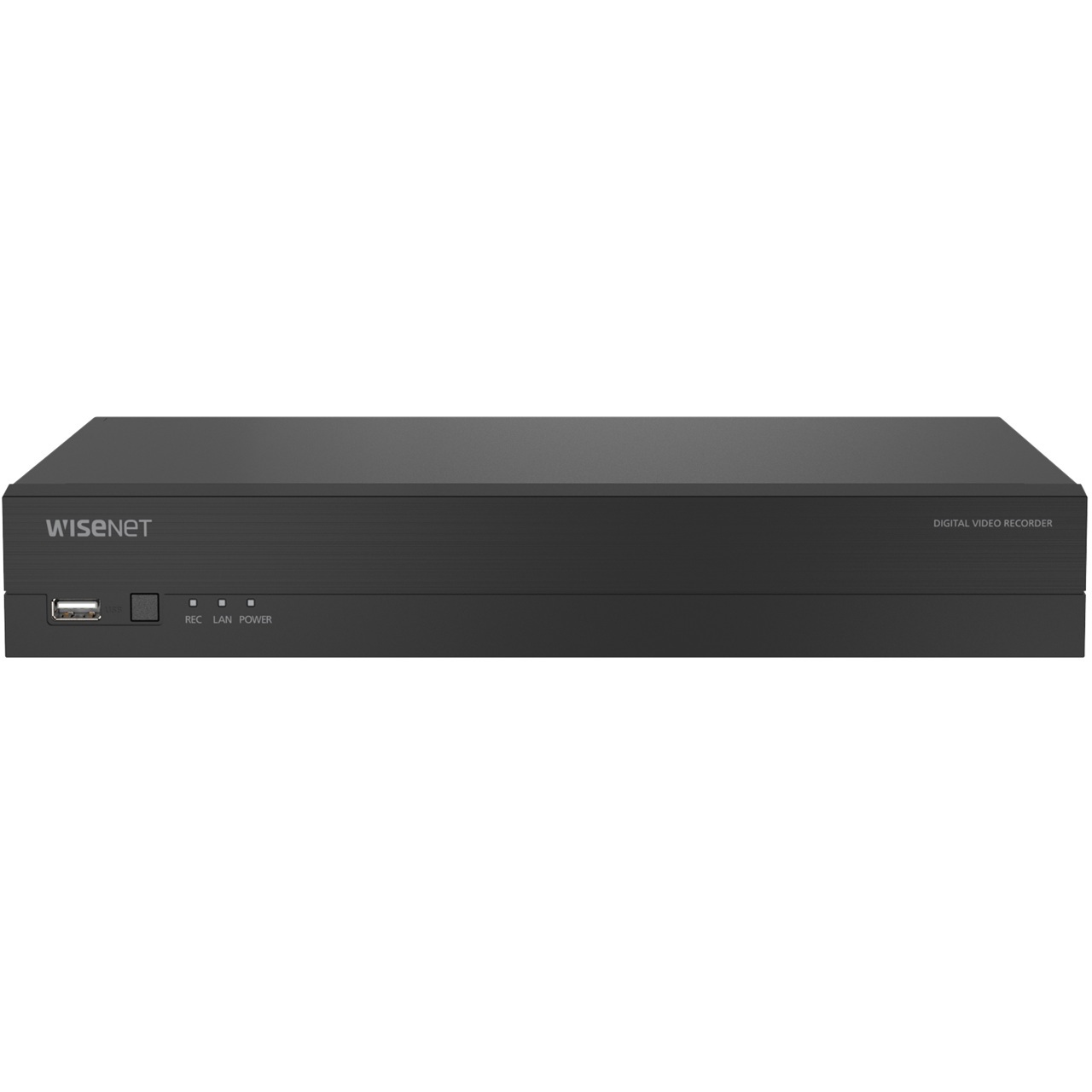

Front

• Indicator - LED(Status indicator) : Power(1), Record(1), Network(1)
• Reset - Switch(1EA)
• HDMI - 1EA
• VGA - 1EA
• BNC - 4CH In / 1CH Out(Spot Output)
• Audio - Out(1EA, RCA, Line)
• Ethernet - RJ-45(10/100 BASE-T)
• Alarm - NoneIn 4EA, Out 1EA, - Relay Out1(NO/NC/COM)
• USB - 2EA(Front/Rear USB2.0)
• Serial(Protocols) - RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
• Power inlet - 1EA DC Input Jack

System

Log

• Log List - Max. 100,000 (System Log, Event Log each)
• System Control - Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

• Operating Temperature - 0°C to +40°C(+32℉ to +104℉)
• Operating Humidity - 20% ~ 85% RH
• Certification - UL, CE, FCC, KC

Electrical

• Power Input - DC12V
• Power Consumption - Max. 19.2W (6T HDD 1ea)

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 300 x 47 x 208.7mm (11.85" x 1.89" x 8.22")
• Weight - Approx. 1.1Kg (2.4 lb, without HDD)
