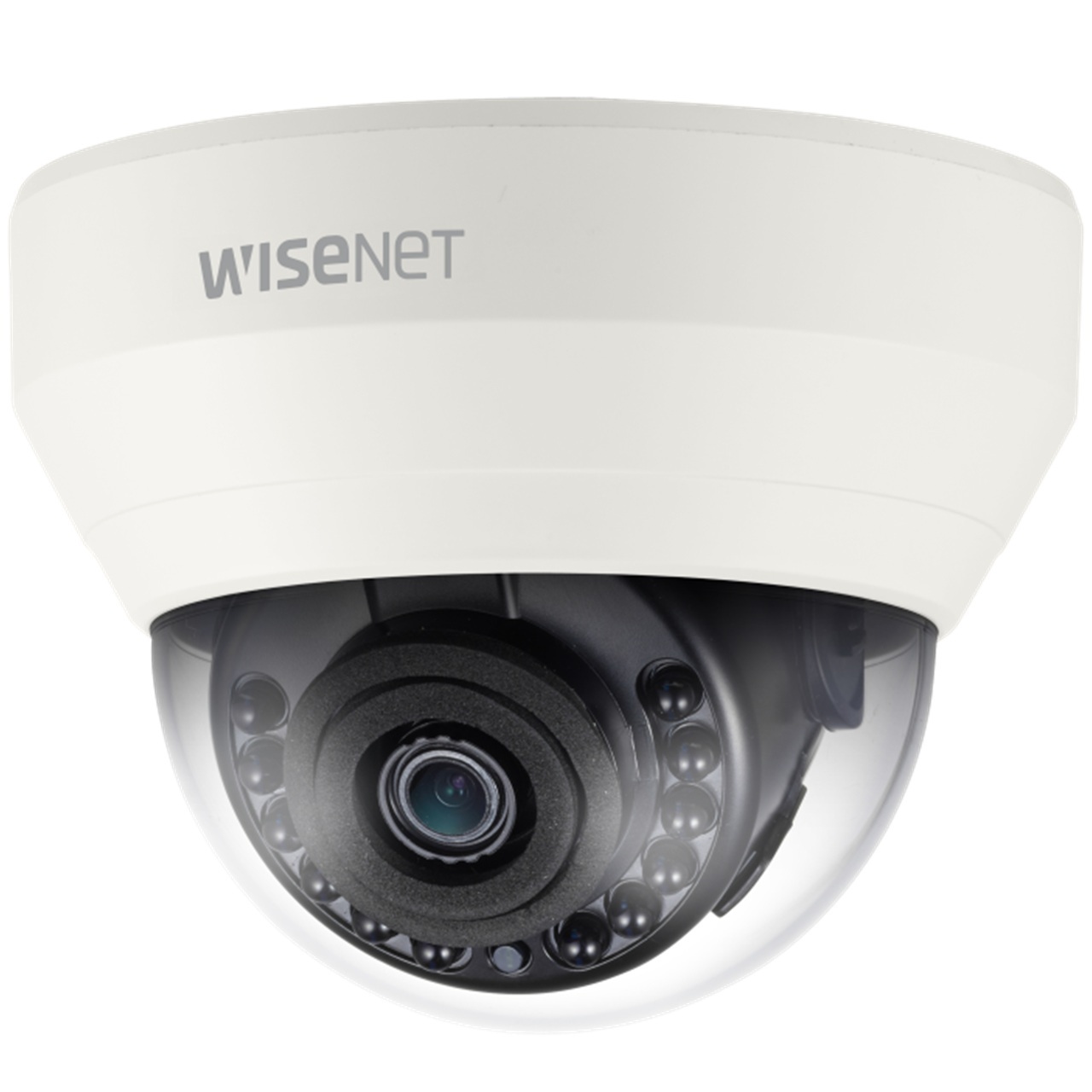

HCD-6020R Hanwha Vision 4.0mm 30FPS @ 2MP Indoor IR Day/Night WDR Dome HD-TVI/HD-CVI/AHD/Analog/Analog Security Camera 12VDC

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080
• Max. Framerate(NTSC/PAL) - 30fps/25fps
• Min. Illumination - Color(1/30sec, 30IRE) 0.17 BW: (1/30sec, 30IRE) 0.017
• Video Out - BNC: AHD/TVI/CVI/CVBS Selectable
• Video Transmission Distance - 500m(5C2V Coaxial Cable)

Lens

• Focal Length (mm) - 4
• Max Aperture Ratio (F number) - Wide 1.6
• Angular Field of View Horizontal - 87.6°
• Angular Field of View Vertical - 46.4°
• Angular Field of View Diagonal - 104.5°
• Min. Object Distance - 0.5m(1.64ft)
• Focal Control - Manual

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0Ëš~350Ëš / 0Ëš~67Ëš / 0Ëš~355Ëš

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HLC, WDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - SSNRâ…£
• Defog - Support
• Motion Detection - 4 ea
• Privacy Masking - 8ea
• Shape - Rectangular zones
• Gain Control - Low / Middle / High / Very High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed Range - 1~1/12,000sec
• Video Rotation - Flip, Mirror
• IR Viewable Length - 20m(65.62ft)
• Coaxial Protocol - ACP, TCP, CCP, CVBS

Analytics

• Analytics Events - Normal Motion detection

Environmental & Electrical

• Operating Temperature/Humidity - -10°C~+55°C(+14°F~+131°F)/ 0~90% RH(non-condensing)
• Input Voltage - 12VDC
• Power Consumption - 12VDC Max 5.4W

Mechanical

• Color - Ivory
• Material - PC(Polycarbonate)
• Product Dimensions - Ø110x86mm(4.33x3.39")
• Product Weight - 227g(0.50lb)
