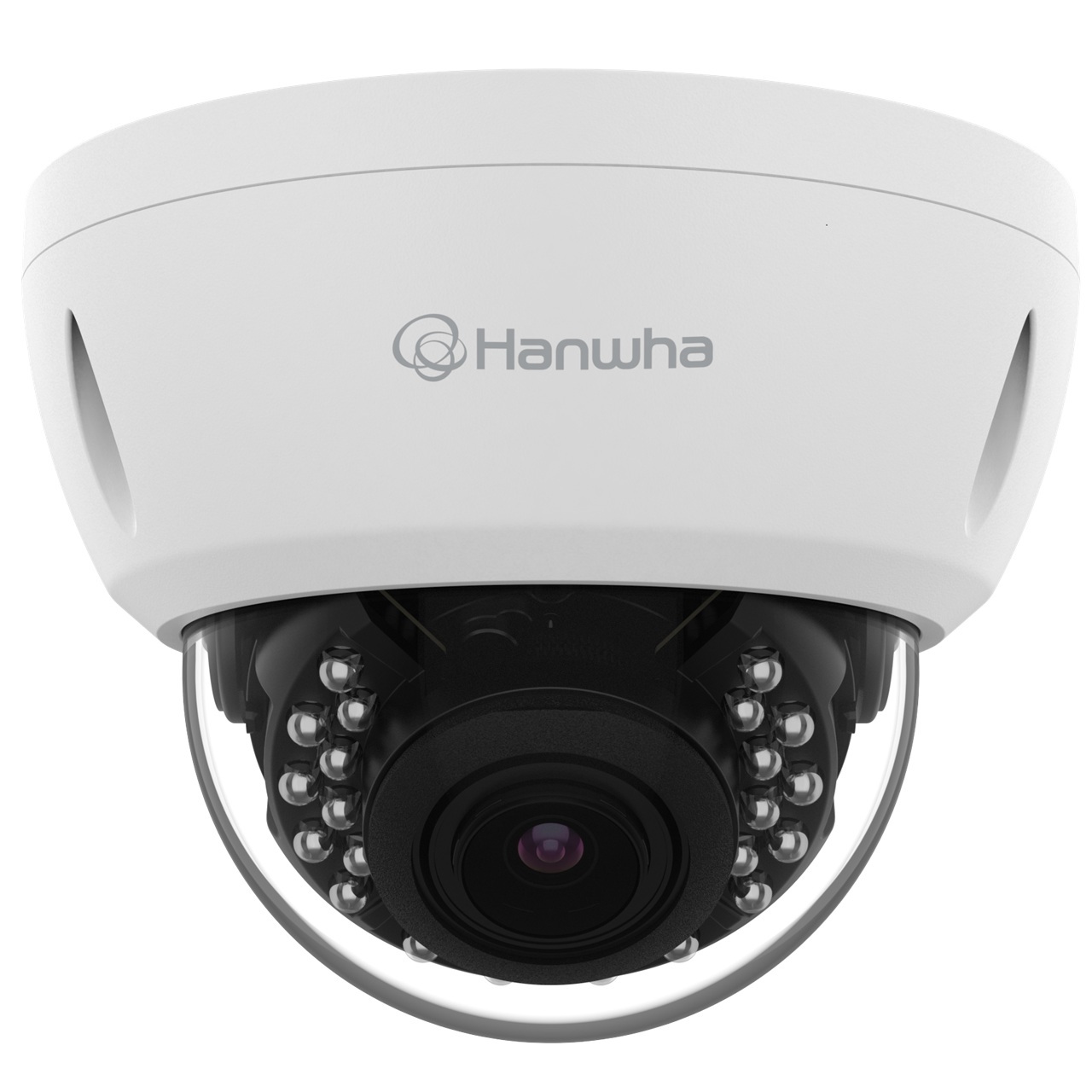

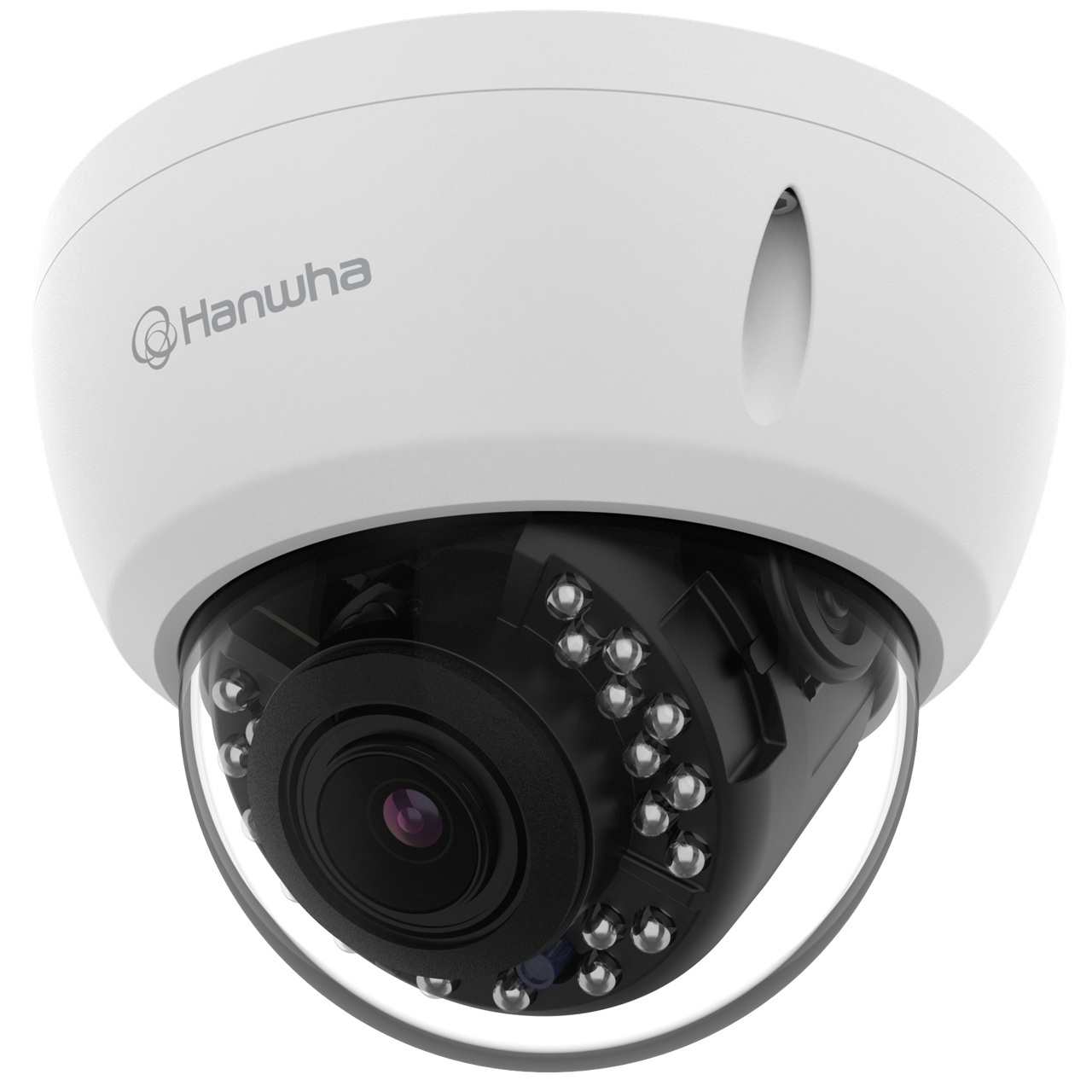

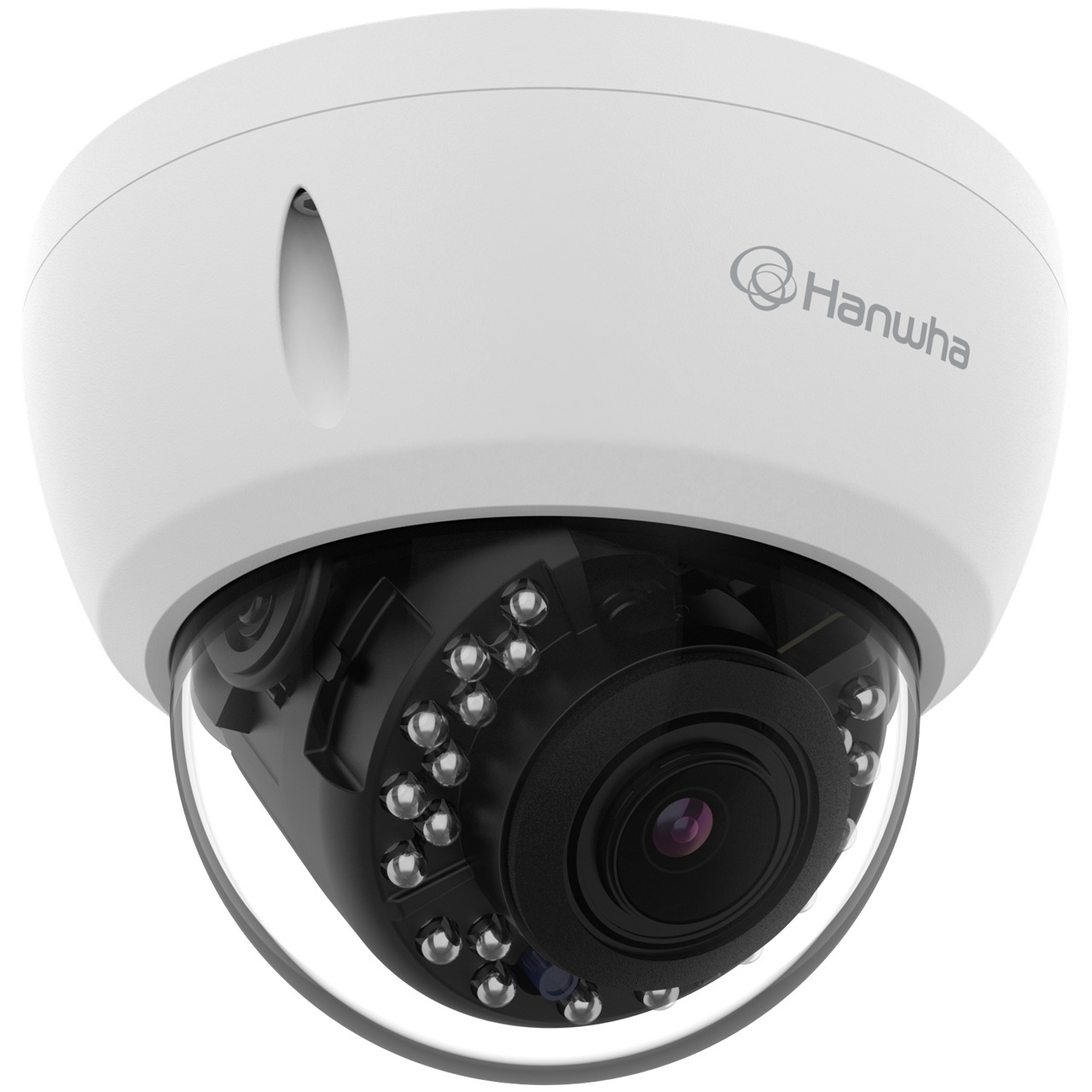

ACV-8080R Hanwha Techwin 3.6mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC

Specifications

Video

• Imaging Device - 1/2.5" CMOS
• Resolution - 2592x1944, 2560x1440
• Max. Framerate - Max. 30fps (@5MP Max. 20fps, CVI supports up to 4M)
• Min. Illumination
  • Color : 0.4Lux (F1.6, 1/30sec)
  • B/W : 0Lux (IR LED on)
• Video Out - BNC: AHD/TVI/CVI/CVBS Selectable
• Video Transmission Distance - 300m(5C2V Coaxial Cable)

Lens

• Focal Length (Zoom Ratio) - 4.3mm~10.5mm (2.44x) motorized varifocal
• Max. Aperture Ratio - F1.6
• Angular Field of View
  • H: 88°(Wide)~34°(Tele)
  • V: 63°(Wide)~26°(Tele)
  • D: 112°(Wide)~43°(Tele)
• Min. Object Distance - 0.8m(2.62ft)

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC
• Wide Dynamic Range - DWDR
• Digital Noise Reduction - 2D + 3DNR
• Gain Control - LOW / MIDDLE / HIGH
• White Balance - ATW / AWC
• Electronic Shutter Speed - AUTO(1/30~1/50,000)
• Video Rotation - MIRROR/V-FLIP/ROTATE
• IR Viewable Length - 20m(65.62ft)
• Coaxial Protocol - ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol), CVBS: Pelco-C(Coaxitron)

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C(-22°F~+131°F) / 0~90% RH
• Storage Temperature / Humidity - -30°C~+60°C(-22°F~+140°F) / 0~90% RH
• Certification - IP66, IK10
• Input Voltage - 12VDC
• Power Consumption - Max 7.2W, Typical 5.8W

Mechanical

• Color / Material - White / Aluminum / Plastic
• Product Dimensions / Weight - ø132x103mm(ø5.20"x 4.06"), 550g(1.21lb)
• Backbox - SBV-A14B

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
