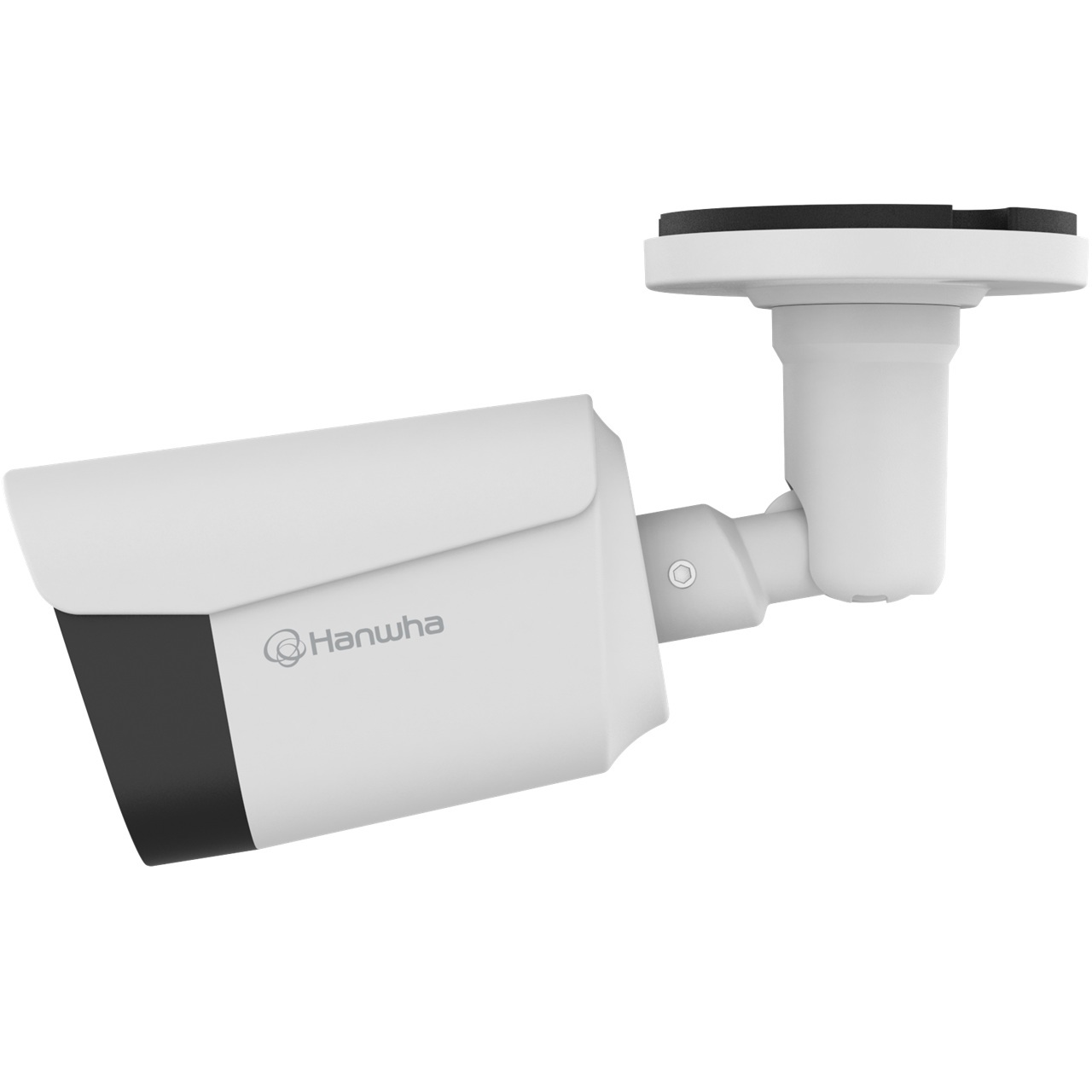

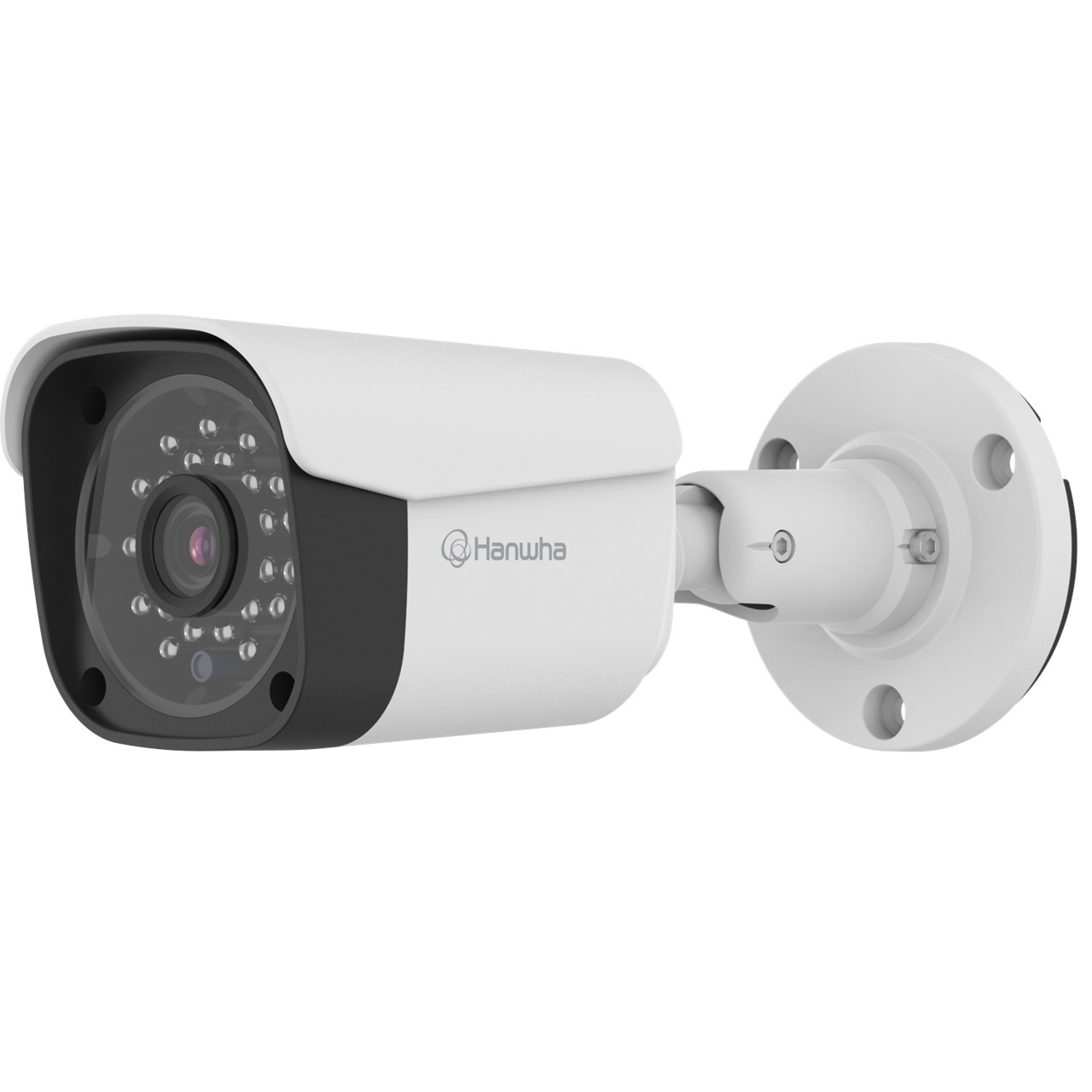

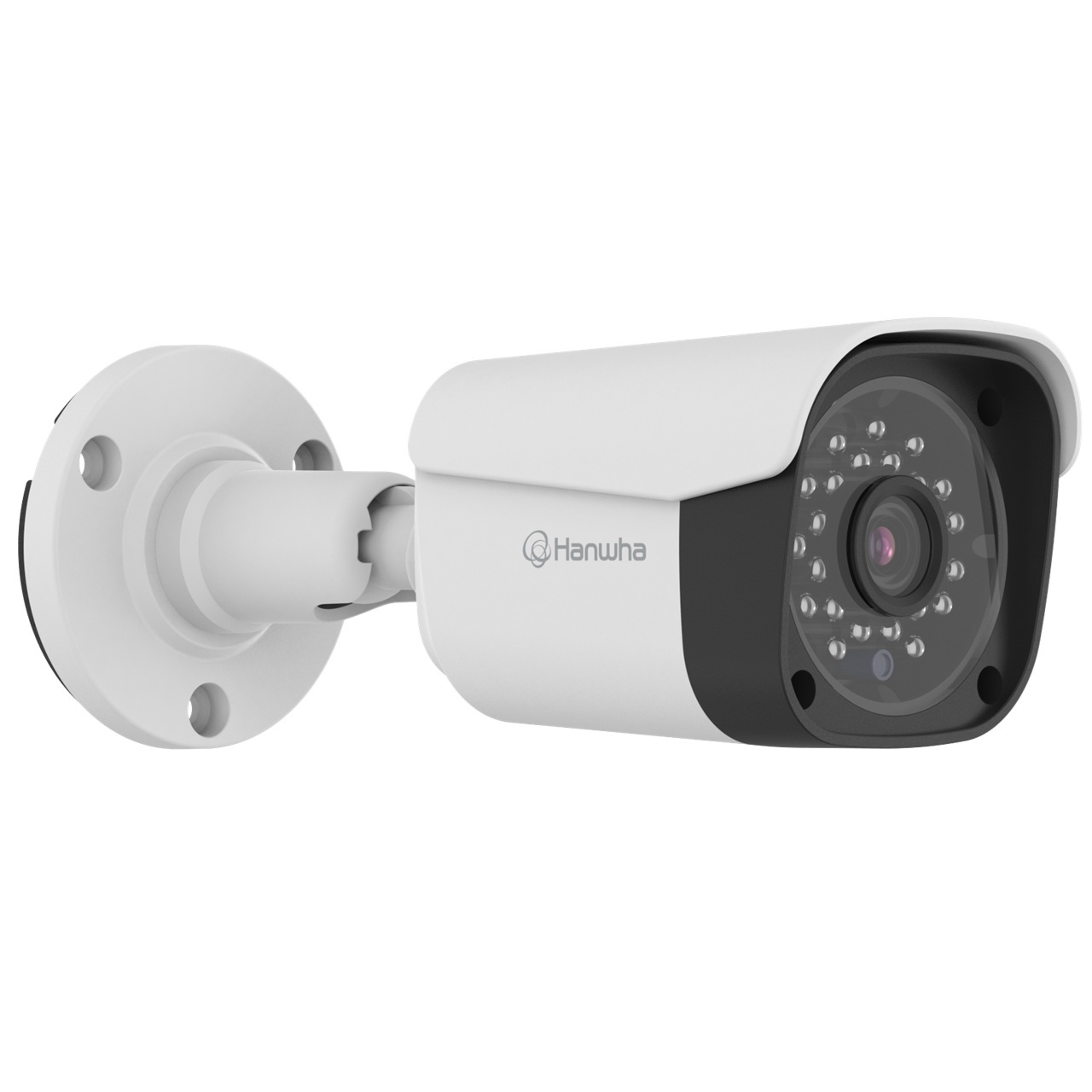

ACO-6020R Hanwha Techwin 3.6mm 30FPS @ 2MP Outdoor IR Day/Night WDR Bullet HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC

Specifications

Video

• Imaging Device - 1/3" CMOS
• Resolution - 1920x1080
• Max. Framerate - 30fps
• Min. Illumination
  • Color : Color : 0.08Lux (F1.6, 1/30sec)
  • B/W : 0Lux (IR LED on)
• Video Out - BNC: AHD/TVI/CVI/CVBS Selectable
• Video Transmission Distance - 300m(5C2V Coaxial Cable)

Lens

• Focal Length (Zoom Ratio) - 3.6mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 78° / V: 41° / D: 92°
• Min. Object Distance - 2.0m(6.56ft)

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC
• Wide Dynamic Range - DWDR
• Digital Noise Reduction - 2D + 3DNR
• Gain Control - LOW / MIDDLE / HIGH
• White Balance - ATW / AWC
• Electronic Shutter Speed - AUTO(1/30~1/50,000)
• Video Rotation - MIRROR/V-FLIP/ROTATE
• IR Viewable Length - 25m(82.02ft)
• Coaxial Protocol - ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol), CVBS: Pelco-C(Coaxitron)

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C(-22°F~+131°F) / 0~90% RH
• Storage Temperature / Humidity - -30°C~+60°C(-22°F~+140°F) / 0~90% RH
• Certification - IP67, IK10
• Input Voltage - 12VDC
• Power Consumption - Max 3.6W, Typical 2.9W

Mechanical

• Color / Material - White / Aluminum / Plastic
• Product Dimensions / Weight - 70(W)x69(H)x186(D)mm(2.76"x2.72"x7.32"), 420g(0.93lb)
• Backbox - SBV-A14B

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
