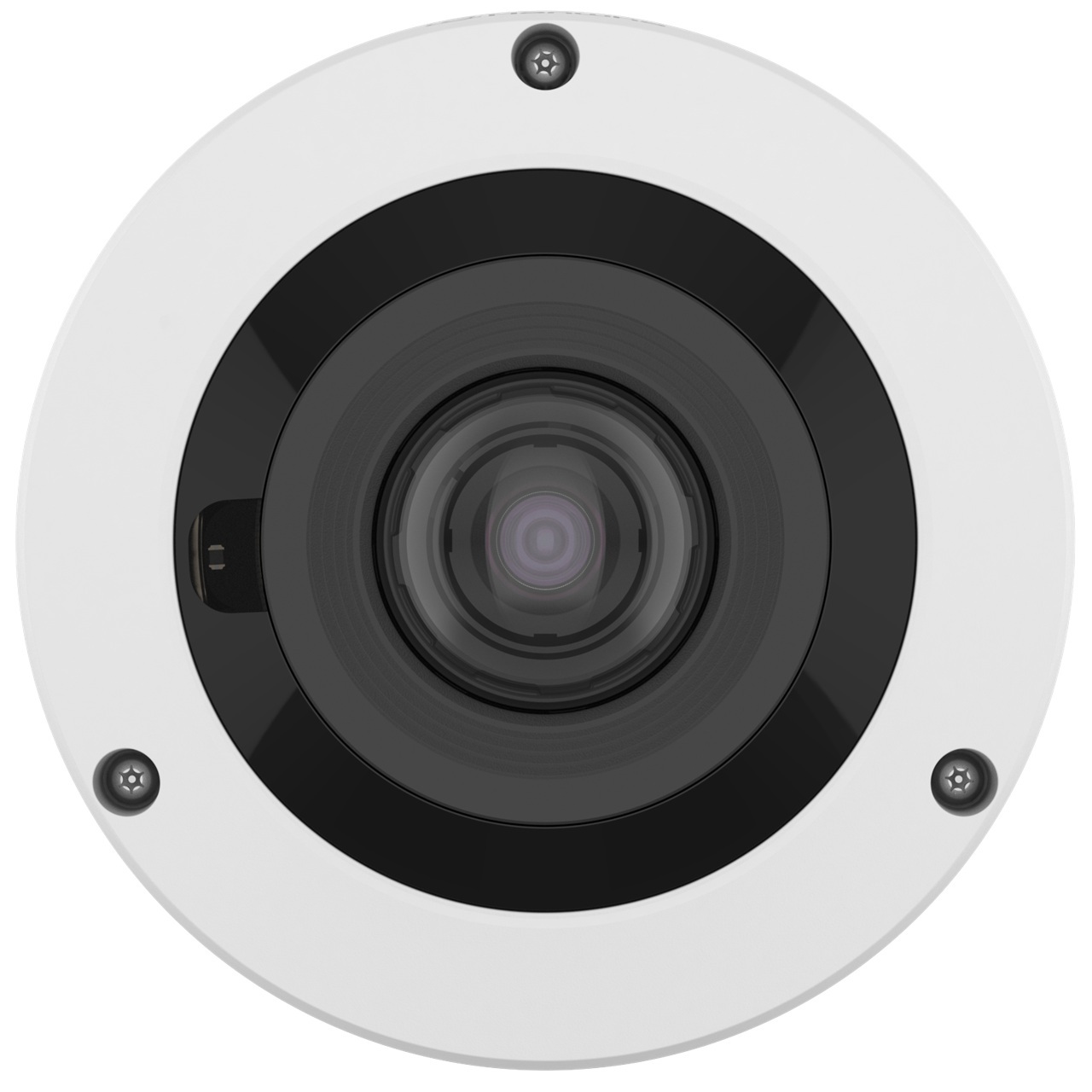

HCF-8011RV Hanwha Vision 1.16mm HD-TVI/HD-CVI/AHD 20FPS @ 5MP Indoor / Outdoor IR Day/Night WDR Analog Fisheye IP Security Camera 12VDC/24VAC

Specifications

Video

• Imaging Device - 1/2.9" CMOS
• Resolution - 2560 x 1944
• Max. Framerate - Max. 20fps
• Min. Illumination - Color: 0.5Lux(F2.25, 1/30sec, 30IRE) BW: 0.005Lux(F2.25, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - BNC: AHD/CVBS Selectable
• Video Transmission Distance - 300m(5C2V Coaxial Cable)

Lens

• Focal Length (Zoom Ratio) - 1.16mm fixed focal
• Max. Aperture Ratio - F2.25
• Angular Field of View - H : 180Ëš V : 180Ëš
• Min. Object Distance - 0.2m(0.66ft)

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR(3DNR, 2DNR)
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/30~ 1/50,000sec)
• Video Rotation - Flip, Mirror, Rotate
• Light Type - IR LED (850nm)
• IR Viewable Length - 10m(32.81ft)
• Coaxial Protocol - ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)

Environmental & Electrical

• Operating Temperature/Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• Storage Temperature/Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10
• Input Voltage - 12VDC, AC24V
• Power Consumption - 12VDC 6.5W, AC24V 5.4W

Mechanical

• Color/Material - White / Aluminum Hard-coated window
• RAL Code - RAL9003
• Product Dimensions/Weight - Ø145.9x65.8mm(Ø5.74"x2.59"), 720g(1.59lb)

Certifications & Standards

• EMC - FCC 47 CFR Part 15, Subpart B Class A ICES-3(A)/NMB-3(A)
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 21.9m(71.9ft)
• Observe (63PPM/ 19PPF) - 8.8m(28.9ft)
• Recognize (125PPM/ 38PPF) - 4.4m(14.4ft)
• Identify (250PPM/ 76PPF) - 2.2m(7.24ft)

Ver

• Ver - 1
