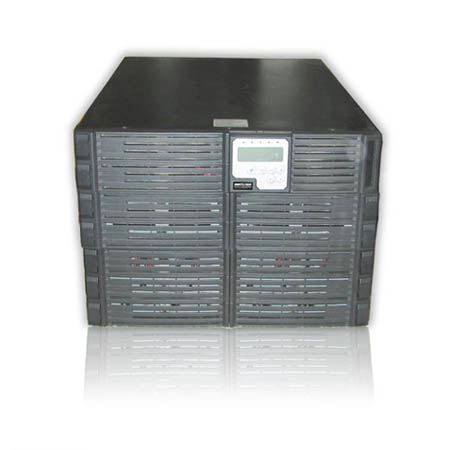

ED6200RM Minuteman 6kVA On-line Rackmount UPS

Specifications

• Model Number - ED6200RM
• Topology - Double Conversion On-Line, True Sine Wave
• Maximum power capacity - 6000VA/4200Watts
• INPUT Voltage window - 160~280VAC
• Frequency - 50/60 Hz ± 5Hz autosensing
• Number of phases/Surge energy rating - Single (1Ø 2W +G)/1050J
• Power factor correction - ≥98% at 100% Linear Load
• OUTPUT Voltage window - 200/208/240VAC selectable 120V with transformer
• Voltage adjustment / Voltage regulation - 0%; +-1%; +-2%; +-3% /+-2%
• Capacity - 6000VA/4200W
• Rated power factor - 0.7 Lagging
• Wave form - Sine Wave
• Frequency Regulation - +-0.2%(Free Running) unless synchronized to utility
• Transfer time - 0ms
• Efficiency - > 87% line mode
• Autonomy full/half - 9 min/23 min
• Voltage THD - <3% at 100% Linear Load
• BATTERY Type - Sealed non-spillable lead acid maintenance free 12V/7.2Ah
• Quantity / Voltage / Recharge Time - 20pcs / 240VDC / 8 hours to 90%
• Status On LED + LCD - Line mode, backup mode, ECO mode, bypass, battery low, battery bad/disconnect, overload, and transferring with interruption & UPS fault.
• Readings on LCD - Input voltage, input frequency, output voltage, output frequency, load percentage, battery voltage & internal temperature.
• Self-diagnostics - Upon power-on, front panel setting & software control
• ALARMS Audible and Visual - Line failure, battery low, transfer to bypass, system fault conditions
• Dimensions - WxDxH - in (mm) - 17.3x3.4x26.7in (440x88x680mm) - (UPS Module)
• Input/output connection / External battery connection - Hardwired / Plug and Play
• Net weight(kg) - 53.0 lb/ 24kg(UPS Module)
• Battery pack net weight - 120.0 lb (54.2 kg)
• Battery Bank Dimensions - Convertible(Rack/Tower) / 17.3x5.2x26.7in (440x132x680mm) (3U)
• Isolation transformer dimensions/ Net weight - 17.3x3.4x 26.7in (440x88x680mm) - (2U) / 93 lb (42 kg)
• Operating temperature - 32F to 104F (0C to 40C)
• Altitude / Humidity - 0~2000m up to 104°F (40°C), 3000m up to 95°F (35°C) / 90% RH Maximum, Non-Condensing
• Noise - <50dB (at 1 meter)
• Interface type - Standard RS-232 Interface
• Communication slots - 2nd RS-232, USB Relay Contact, SNMP/WEB Card, etc.
• Safety and approvals - UL 1778, cUL (CSA 2.2 no. 107.1), CE (EN62040-1-1)
• EMC - CE (EN62040-2, EN61000-3-2, EN61000-3-3), FCC Class A
