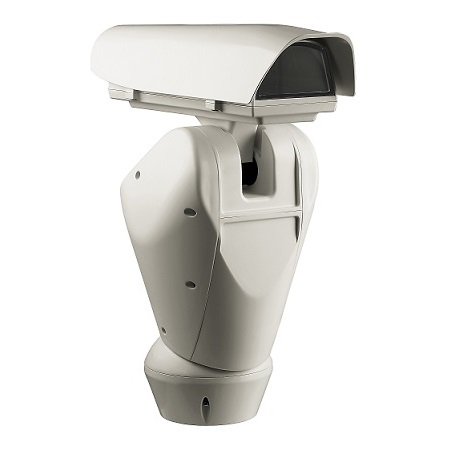

UPT1PVWA000E Videotec ULISSE 230Vac Day/Night Camera

ULISSE PTZ camera unit ensures maximum video surveillance coverage in all outdoor environments, even the most difficult. The accurate top-mount configuration guarantees long-range vision and continuous horizontal axis rotation, combining high speed with absolute tracking accuracy, both in manual mode and in patrol mode.

Specifications

Technical Data

General

• Top mount (OTT)
• Transmission through toothed belt
• Slip-ring
• Electronic limit switches
• Simplified installation thanks to the connector and easy replacement on-site
• Zero backlash
• Configuration of telemetry protocol parameters through dip-switch for RS-485
• Zoom lens controller : polarity inversion and common wire
• Functions : Autopan, Preset, Patrol
• Maximum number of presets for protocol : 250 (MACRO)
• 15 characters string for Area and Preset titling
• Configuration through OSM

Mechanical

• Constructed from aluminium and tecnopolymer
• Epoxypolyester powder painting, RAL9002 colour
• Horizontal rotation : 360°, continuous rotation
• Vertical rotation : from -40° up to +90°
• Horizontal speed (variable) : from 0.02°/s up to 100°/s (from 0.02°/s up to 40°/s, with LED illuminators)
• Tilt speed (variable) : from 0.02°/s up to 40°/s (from 0.02°/s up to 30°/s, with LED illuminators)
• Accuracy of preset positions : 0.02°
• Internal usable area : See drawings
• Cable glands : 3xM16
• Unit weight : 16.3kg (36lb) (16.8kg (37lb), with LED illuminators bracket)

Housing's Window

• Glass window extra clear
• Dimensions (WxH) - 118 x 75mm (4.6 x 2.7 in)
• Germanium window (for thermal cameras)
• Usable diameter : 55mm (2.1 in)
• Thick : 2mm (0.08in)
• External treatment : antiscratch(Hard Carbon Coating - DLC), antireflection
• Internal treatment : antireflection
• Spectral range : from 7.5μm up to 14μm
• Medium transmittance (from 7.5μm up to 11.5μm) : 90%
• Medium transmittance (from 11.5μm up to 14μm) : 77%

Electrical

• Supply voltage/Current consumption
  • 230Vac, 0.4A, 50/60Hz
  • 24Vac, 4A (8A with LED illuminators), 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
• Power consumption
  • 100W (150-190W max with LED illuminators in 24Vac)
  • 24W, P&T static, heating switched off
• Version with integrated camera
  • 26.5W, P&T static, heating switched off
• Cables input section
  • 0.75mm² (18AWG), 120Vac or 230Vac
  • 1.5mm² (16AWG), 24Vac
• Cables signal section : from 0.14mm² (26AWG) up to 0.5mm² (20AWG)
• Housing standard heater : 24Vac, 20W max
• 4 alarm inputs : from 10Vdc up to 35Vdc (2 alarm inputs, with LED illuminators)
• 2 dry contacts : 50Vdc max or 30Vac @ 1A (1 dry contact, with LED illuminators)
• Video line : coaxial cable (1Vpp, 75 Ohm)
• Camera power supply : 12Vdc (800mA)
• Power supply to the lens : from 6Vdc up to 15Vdc (200mA max)

Serial Communications

• RS-232 interface for firmware update
• 2-ports RS-485 for daisy chain configuration
• Addressable through dip-switch up 255 units
• Configuration of telemetry protocol parameters through dip-switch
• Protocols supported : AMERICAN DYNAMICS, PANASONIC, PELCO D, VIDEOTEC MACRO, VISTA, AMERICAN DYNAMICS, PANASONIC, PELCO, VISTA are registered trademarks

Environment

• For installation indoors and outdoors
• Operating temperature
  • With heater : from -20°C (-4°F) up to +60°C (140°F)
  • With reinforced heater : from -30°C (-22°F ) up to +60°C (140°F)
• Wind resistance (without LED illuminators)
  • Operational : up to 160km/h
  • Stationary : up to 210km/h
• Surge immunity : up to 2kV line to line, up to 4kV line to earth (Class 4)

Certifications

• Electrical safety (CE) : EN60950-1, IEC60950-1
• Electromagnetic compatibility (CE) : EN50130-4, EN55022 (Class A), EN610000-6-3, FCC Part 15 (Class B)
• Outdoor installation (CE) : EN60950-22, IEC60950-22
• Photobiological safety (CE) : EN62471 (LED illuminators)
• IP protection degree (EN60529) - IP66
• Salty fog resistance : EN50130-5, EN60068-2-52
• UL certification: cULus Listed (TYPE 4X) (not for thermal cameras version)
• EAC certification
