NV-3272 NVT 32 Channel DigitalEQTM Active Receiver Hub

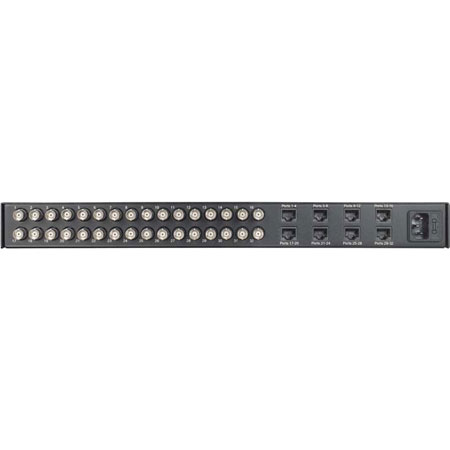

The NV-3272 is a 32-channel active (amplified) hub that allows the transmission of real-time monochrome or color video for distances up to one mile (1,6km) using Category-2 or better Unshielded Twisted-Pair (UTP) wire. The Receiver hub continuously and automatically compensates for cable attenuation, ground-loops, and wiring polarity, independent of video signal image. The 1U high hub is equipped with multi-stage transient protection and carries a limited lifetime warranty.

Specifications:

• Model Number - NV-3272
• Frequency response - DC to 5 MHz
• Equalization - 0.5 dB typ
• Common-mode / Differential-mode rejection 15 KHz to 5 MHz - 60 dB typ
• Impedance Coax/UTP - 75/100 ohm
• Network Wiring - One Unshielded Twisted Pair 24 - 16 AWG (0,5-1,31mm)
• Category Type - 2 or better
• Impedance - 100 ± 20 ohms
• DC Loop Resistance (24AWG) - 52 ohms per 1,000 ft (18 ohms per 100 m)
• Differential Capacitance - 19 pF/ft max (62 pF/m max)
• Temperature - 0 to +50 °C
• Humidity (non-condensing) - 0 to 95 %
• Transient Immunity - per ANSI / IEEE 587 C62.41
• Power - IEC380 power inlet
• Weight - 8.0lb (3,6kg)
• Dimensions - 17in wide, 1.7in high, 8.125in deep
• Mounting - Rack mount "L" brackets for front, rear, or wall installations; rubber feet for desk applications
• Cables - IEC power cord 7ft (215cm). Includes thirty-two 2ft (60cm) coax jumpers.

NV-3272 Specifications PDF
