NV-3262 NVT 32 Channel Active Hub

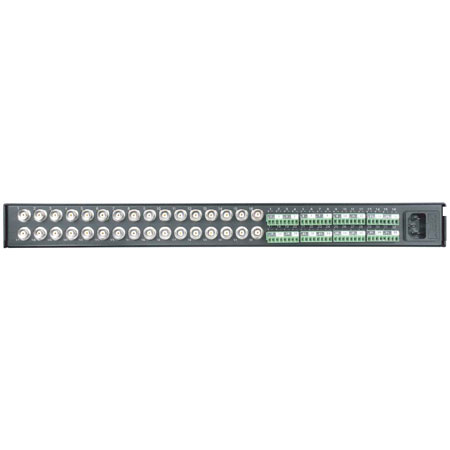

The NVT Model NV-3262 is a 32-port active (amplified) device that allows the transmission of real-time monochrome or color video on up to one mile (1,6km) using Category-2 or 3 Unshielded Twisted-Pair (UTP) or up to 1.5 miles (2,4km) (NTSC) using Category-5 or better. The NV-3262 has a screw terminal video input and RJ45 video inputs.

The unparalleled interference rejection and low emissions allow long run video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground potential differences exist. With built-in transient protection, damaging voltage spike problems are eliminated. Perfect for larger CCTV installations where port density and camera number growth are prevalent.

Specifications:

• Model Number - NV-3262
• Frequency response - DC to 5 MHz
• Common-mode / Differential-mode rejection 15 KHz to 5 MHz - 60 dB typ
• Impedance Coax, female BNC/UTP, Screw Terminal Block or RJ45 - 75ohms/100ohms
• Network Wiring - One Unshielded Twisted Pair 24 - 16 AWG (0,5-1,31mm)
• Category Type - 2 or better
• Impedance - 100 ± 20 ohms
• DC Loop Resistance (24AWG) - 52 ohms per 1,000 ft (18 ohms per 100 m)
• Differential Capacitance - 19 pF/ft max (62 pF/m max)
• Temperature - 0 to +50°C
• Humidity (non-condensing) - 0 to 95%
• Transient Immunity - per ANSI / IEEE 587 C62.41
• Power - 115/230V, built-in, 50/60Hz 315mA
• Weight - 8.0lb (3,6kg)
• Dimensions - 17in wide, 1.7in high, 8.125in deep
• Mounting - Rack mount "L" brackets for front, rear, or wall installations; rubber feet for desk applications
• Cables - Thirty-two 2ft (60cm) coax jumpers
