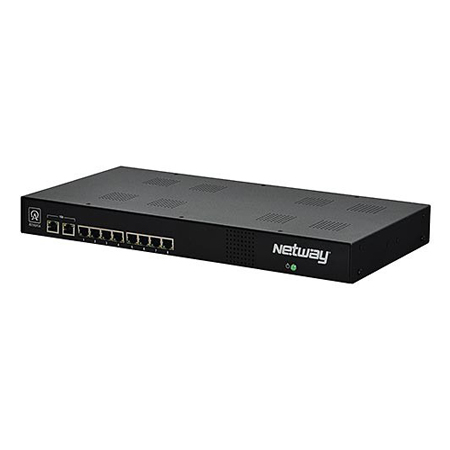

NETWAY8E Altronix PoE Switch 8-Port 10/100/1000 240W Battery Charging LINQ 115/230 1U

Altronix NetWay8E is an 8-port networked switch in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control, and report power and diagnostics from anywhere

Specifications

Input

• 115VAC, 60Hz, 3A or 230VAC, 50Hz, 1.8A

Power

• Unit provides PoE / PoE+
• 30W full power per port.
• Total power: 240W.

Ethernet

• Two (2) 1Gb uplink (10/100/1000Mbps)
• Connectivity - RJ45, auto- crossover.
• Wire type - 4-pair CAT5e or better structured cable.
• Distance - up to 100m.
• Speed - 10/100/1000 BaseT, half/full duplex, auto negotiation.

Indicators (LED)

• Yellow and Green LED (by RJ45 jack) - IP Link status, 10/100/1000 Base-T/active.
• Power LED - Power ON.

LINQ Technology:

• Remote network management allows for camera/device reset and monitoring.
• Provides local and/or remote access to critical information via LAN/WAN.
• Email and Windows Dashboard Alert notifications report real-time diagnostics.
• Event log tracks history.

Agency Listings

• UL/cUL - UL60950-1 (Information Technology Equipment).
• CE - European Conformity.

Physical and Environmental

• Dimensions (W x L x H) - 1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
• Product Weight - 6.17 lbs. (2.8 kg).
• Shipping Weight - 7.5 lbs. (3.4 kg).
• Operating Temperature -20°C to 40°C (-4°F to 104°F).
• Storage Temperature - -20° to 70°C (-4°F to 158°F).
• Relative Humidity - 85% +/- 5%.
• Operating Altitude - -304.8 to 3,048m (-1,000 to 10,000 ft.).
• BTU/Hr (approx.) - 123 BTU/Hr.
