E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed

E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed	E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed	E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed
(Click to see larger image and other views)

E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed

E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed	E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed	E-941SA-600PD Seco-Larm 600-lb Electromagnetic Lock w/ Bond Sensor, Status LED & Timer - UL Listed
(Click to see larger image and other views)

SKU: E-941SA-600PD

Brand: Seco-Larm

600-lb Electromagnetic Lock, Bond Sensor, Status LED, Timer, UL Listed

Key Features

600-lb (272kg) Holding force
MOV surge protection

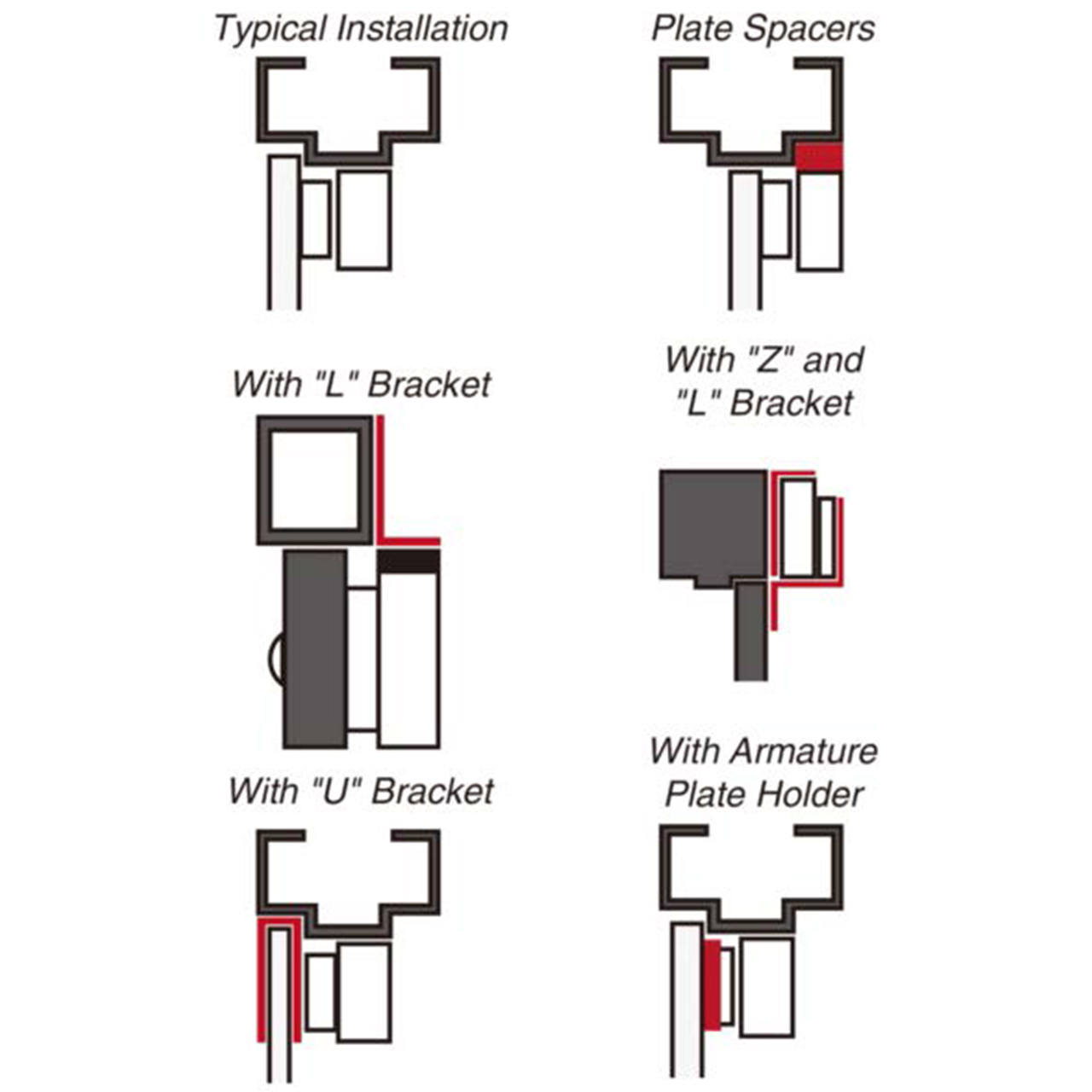

Adjustable mounting bracket
Complete mounting hardware for typical installations
"L" bracket and "Z" brackets available for easy mounting
Detachable faceplate
12/24VDC selectable
Built-in status LED shows locked/unlocked status
Built-in bond sensor with 1A@30VDC dry relay output for monitoring door status
Built-in timer: 1~78 seconds

More details...

MPN: E-941SA-600PD

MSRP Price: $247.05

Web Price$247.05

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

Product Details

Specifications

Holding force - 12/24 VDC (selectable)
Operating voltage - 600-lb (272kg)
Current draw - 500mA@12VDC, 270mA@24VDC
Operating temperature - 32º~120º F (0º~49º C)

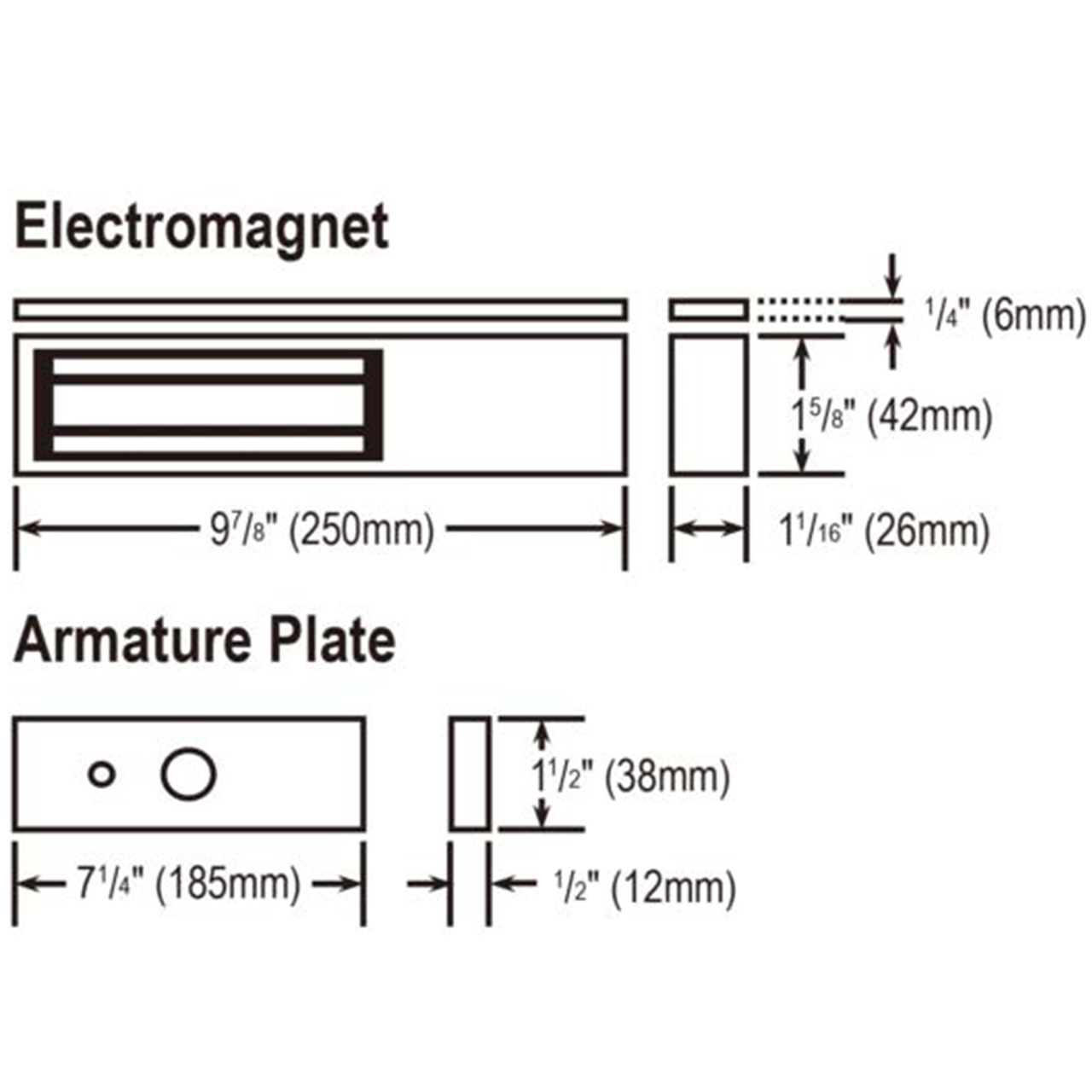

Magnet dimensions - 9-13/16" x 1-11/16" x 1" (250x43x25 mm)
Armature dimensions - 7-1/4" x 1-1/2" x 1/2" (185x38x12 mm)
Destructive attack - Level I
Line security - Level I
Standby power - Level I
Endurance - Level IV
Weight - 4-lb 6-oz (2kg)
Bond Sensor - SPDT relay, 1A@30VDC
Status LED - Yes
Timer - Yes

Shop by Brand:

SECO-LARM › Seco-Larm Maglocks - Indoor Use

FAQ

Delay in Door Releasing

The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
Ensure that the control device is connected between the power source and the positive terminal of the lock.

Door Locks, but Can Easily Be Forced Open

Make sure the electromagnet and armature plate are properly aligned.
Make sure the contact surfaces of the electromagnet and armature plate are clean and free from rust.
Check the power leads with a meter and make sure 12VDC or 24VDC is present.
Make sure the rubber washer is installed and free from damage.
